Hollow piston single acting cylinders, spring return – 700 bar – CSE

Steel

Features

Single acting, spring return
Threaded piston end with hollow saddle TLC
2 base threaded mounting holes
Salt bath nitriding piston rod
Fitted in standard with HF 738 coupler
CSE 2915 with carrying handle
CSE 587 and CSE 5815 with lifting ring
CSE 907 with two lifting rings

Print this sheet
Hollow piston single acting cylinders, spring return – 700 bar – CSE : Lifting steel cylinders 700 bar - Quiri - 2
Cylinder

category

 Maximum force

700 bar

 Stroke Effective

area

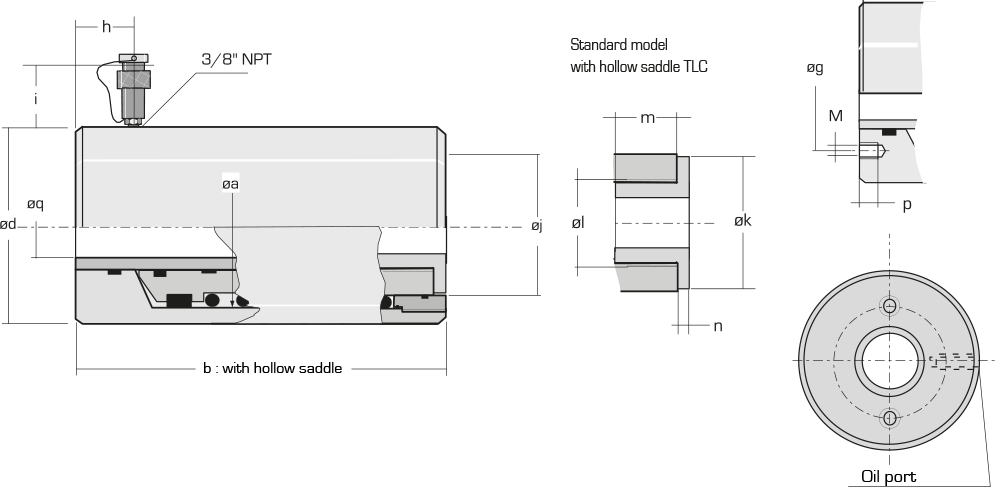

 Oil volume Reference Dimensions (mm) Weight
Tons kN mm cm2 cm3 a b d M x p

on ø g

 h i j k l m n q kg
12 121,6 41 18,03 74 CSE 124 55 145 70 5/16 – 18UNC

x 15 on ø 50,8

 20 70 38,5 38 M29 x 1,5 20 8 19,5 3,8
75 135 CSE 127 191 5
20 200,4 48 28,86 140 CSE 204 70 172 95 3/8 – 16UNC

x 18 on ø 82,6

 20 70 50,5 50 M37 x 1,5 20 10 26,5 8
150 433 CSE 2015 321 14
29 297,3 63 42,51 270 CSE 296 85,72 200 110 3/8 – 16UNC

x 18 on ø 92,1

 20 70 62 61 M46 x 1,5 22 10 33 13
150 638 CSE 2915 340 23
58 590 76 84,34 640 CSE 587 125 245 155 1/2 – 13UNC

x 18 on ø 130,2

 20 70 94 93 M72 x 1,5 25 12 53,5 26,6
150 1266 CSE 5815 385 40
90 899,1 76 133 1010 CSE 907 165,1 272 200



 38 70 128 127 M104 x 1,5 30 12 79 46

Product accessories

Find our guide about couplers on this page: Couplers fitted on single acting QUIRI 700 cylinders

TRA – Tilt saddles – 700 bar

Correct the effects of a non centered load.

Hollow cylinders saddles (for CSE and CDE cylinders) – 700 bar
