Double acting cylinders, hydraulic return – 700 bar – DE

Steel

Features

Features

• Double acting, hydraulic return
• Collar thread with rubber protection
• Threaded piston end with removable grooved saddle
• Salt bath nitriding piston rod on Cylinders 9, 13, 31 et 54 T.
• Chrome plated piston rod on Cylinders 93 T.
• Fitted in standard with couplers HF 738 and safety valve on the retract side
• Cylinders 54 T with carrying handles
• Cylinders 93 T with 2 transport eye hooks

Print this sheet

Double acting cylinders, hydraulic return – 700 bar – DE : Lifting steel cylinders 700 bar - Quiri - 2

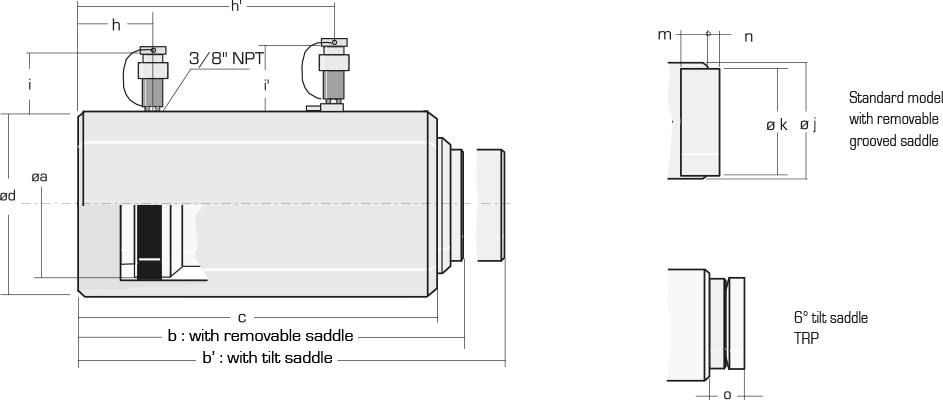

Cylinder category	Maximum force 700 bar		Stroke	Effective area	Oil volume	Reference	Dimensions (mm)															Weight
							a	b	b’	c	d	e	f	h/h’	i/i’	j	k	l	m	n	o

Tons	* kN		mm	cm2	cm3																	kg

9	P	87,9	150	12,56	190	DE 915	40	285	304	279	60	21/4-14UNS	27	23/232	70/113	31,8	32	1-8UNC	17	6	25	5,8
	R	32,3		3,49	53
23	P	232,2	150	33,18	500	DE 2315	65	315	337	305	85	35/16-12UNS	49	23/238	70/113	54	55	11/2-16UN	25	10	32	10,4
	R	72		10,28	155
31	P	309,1	150	44,18	665	DE 3115	75	338	360	326	100	35/16-12UNS	49	37/249	70/113	57,15	55	11/2-16UN	25	10	32	19,8
	R	129,6		18,55	280
54	P	549,5	150	78,54	1175	DE 5415	100	321	344	306	130	5-12UN	45	23/241	70/113	80	78	1-12UNF	38	15	38	28,2
	R	197,8		28,28	425
	P	549,5	250	78,54	1965	DE 5425		421	444	406				23/341								37
	R	197,8		28,28	707
93	P	928,7	150	132,73	1992	DE 9315	130	355	386	346	175	67/8-12UN	50	47/270	70/113	105	103	13/4-12UN	50	15	46	60,3
	R	322,8		46,14	692
	P	928,7	250	132,73	3318	DE 9325		455	486	440				47/370								77,3
	R	322,8		46,14	1154

* P : Push – R : Return
