Telescopic cylinders – 500 bar – SLT

Light alloy

Features

• Single acting, load return
• Spring return for piston N°2 (SLT 20/400)
• Corrosion resistant light alloy body
• Chrome plated or corrosion resistant light alloy piston rod
• Wiper seals
• Delivered in standard without coupler

Options

F : 4 base threaded mounting holes

Print this sheet
Telescopic cylinders – 500 bar – SLT : Lifting light alloy cylinders 500 bar - Quiri - 2
Cylinder category Working force 500 bar Total stroke b d Reference Piston n°1 Piston n°2 Piston n°3 Oil volume Weight
Section Force Stroke Section Force Stroke Section Force Stroke
cm2 kN mm cm2 kN mm cm2 kN mm
Tons kN mm mm mm cm3 kg
5 47.2 330 237 100.5 SLT 5/330 38.48 192.4 115 19.63 98.2 230 9.62 48.1 330 720 7.5
10 98.2 330 300 100.5 SLT 10/330 160 19.63 98.2 330 1000 10
350 260 145.5 SLT 10/350 95.03 475 105 38.48 192.4 215 19.63 98.2 350 1700 15.5
630 387 145.5 SLT 10/630 200 400 630 3120 22
20 192.4 190 193 190.5 SLT 20/190 153.93 769.3 55 95.03 475 120 38.48 192.4 190 1730 19
400 365 145.5 SLT 20/400 95.03 475 200 38.48 192.4 400 2670 20
680 415 190.5 SLT 20/680 153.93 769.3 210 95.03 475 440 38.48 192.4 680 6300 42
60 623.2 220 290 230.5 SLT 60/220 227 1134.4 110 124.69 623.2 220 3870 34
450 415 230.5 SLT 60/450 225 450 7920 46

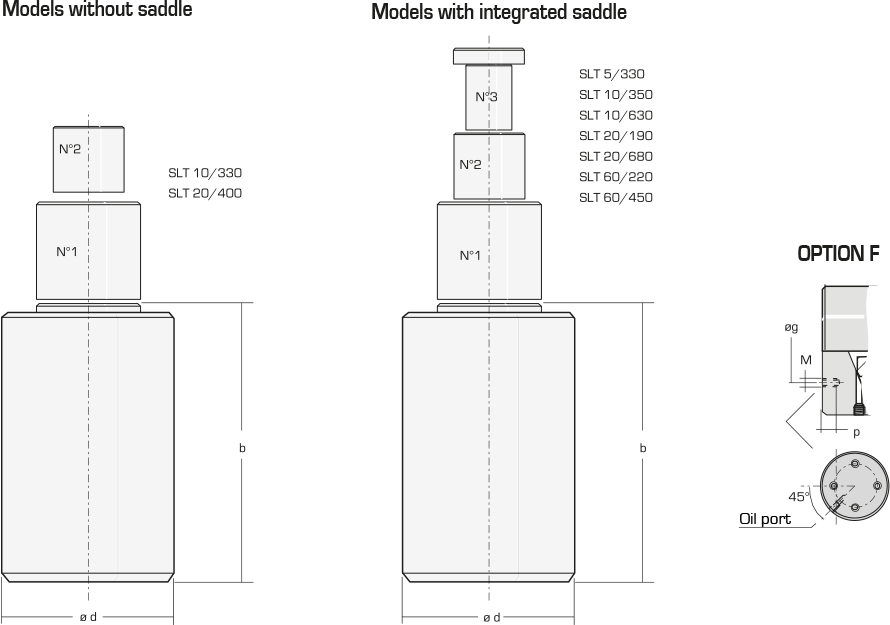

Other dimensions

Telescopic cylinders – 500 bar – SLT : Lifting light alloy cylinders 500 bar - Quiri - 3
Cylinder

category



 Reference Dimensions (mm) Option F
a1 a2 a3 c1 c2 c3 b c d h j1 j2 j3 k dz m n p o M x pon Ø g
Tons
5 SLT 5/330 70 50 35 115 230 330 237 221 100,5 25 63 45 25 58 12 1 x M6 M8 x 20 on Ø 65
10 SLT 10/330 70 50 160 330 300 297 40 16 16
SLT 10/350 110 70 50 105 215 350 260 235 145,5 28 100 63 40 95 16 7,5 22 1 x M8 M10 x 20 on Ø90
SLT 10/630 110 70 50 200 400 630 387 361 145,5 40 100 63 40 95 16 7,5 22 1 x M8
20 SLT 20/190 140 110 70 55 120 190 193 168 190,5 25 130 100 63 128 25 23 23 45 2 x M8 M10 x 20 on Ø120
SLT 20/400 110 70 200 400 365 361 145,5 40 100 63 25 20 M10 x 22 on Ø90
SLT 20/680 140 110 70 210 440 680 415 390 190,5 35 130 100 63 128 25 23 23 45 2 x M8 M10 x 22 on Ø120
60 SLT 60/220 170 126 110 220 290 285 230,5 42 160 110 130 35 23 23 80 4 x M12 M12 x 25 on Ø150
SLT 60/450 170 126 225 450 415 410 230,5 42 160 110 130 35 23 23 80 4 x M12

Product accessories

Find our guide about couplers on this page: Couplers fitted on single acting QUIRI 500 cylinders

Flat saddles TPL – 500 bar

Protect piston rod end

Flat threaded saddles TPF – 500 bar

Protect piston rod end

Tilt saddles TRB – 500 bar

Protect piston rod end
Correct the effects of a non centered load

Tilt threaded saddles TRF – 500 bar

Protect piston rod end
Correct the effects of a non centered load
