Single acting cylinders, spring return – 500 bar – SLS

Light alloy

Features
Options

Features

• Single acting, spring return
• Maximum pressure 600 bar (stroke to be limited at 80% of the whole stroke)
• Corrosion resistant light alloy body
• Chrome plated piston rod for cylinders 6, 10, 20T
• Corrosion resistant light alloy piston rod for cylinders 45, 75, 110T
• Wiper seal
• Delivered in standard without coupler

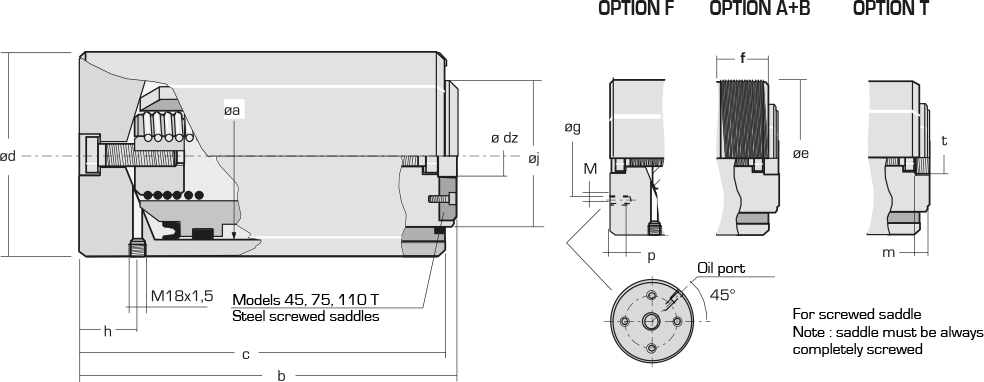

Options

A+B : Body collar thread with rubber protection *
F : 4 base threaded mounting holes
T : Threading of the dz hole

Print this sheet

Single acting cylinders, spring return – 500 bar – SLS : Lifting light alloy cylinders 500 bar - Quiri - 2

Cylinder category	Working force 500 bar	Maximum force 600 bar	Stroke	Effective area	Oil volume	Reference	Dimensions (mm)							Options			Weight
Tons	kN	kN	mm	cm2	cm3		a	b	c	d	h	j	dz	Option A *	Option F	Option T	kg
Tons	kN	kN	mm	cm2	cm3		a	b	c	d	h	j	dz	e f	M x p on Ø g	t m	kg
6	62,8	75,4	75	12,56	94	SLS 6/75	40	190	185	55,5	23	32	16	M55 x 2 40	M6 x 12 Ø 35	M20 x 1,5 16	2,1
6	62,8	75,4	150	12,56	188	SLS 6/150	40	265	260	55,5	23	32		M55 x 2 40	M6 x 12 Ø 35		2,4
10	98,2	117,8	75	19,63	147	SLS 10/75	50	215	208	68,5	25	40		M68 x2 50	M6 x 15 Ø 45		3,5
10	98,2	117,8	150	19,63	294	SLS 10/150	50	290	283	68,5	25	40		M68 x2 50	M6 x 15 Ø 45		3,9
20	192,4	230,8	75	38,48	289	SLS 20/75	70	225	222	100,5	28	60	25	M100 x 2 70	M8 x 20 Ø 65	M30 x 1,5 25	6,8
20	192,4	230,8	150	38,48	577	SLS 20/150	70	302	297	100,5	28	60		M100 x 2 70	M8 x 20 Ø 65		8,8
45	475	569,9 *	75	95,03	713	SLS 45/75	110	240	236	145,5	40	95		145 x 3 70 **	M10 x 22 Ø 90		12
45	475	569,9 *	200	95,03	1901	SLS 45/200	110	365	361	145,5	40	95		145 x 3 70 **	M10 x 22 Ø 90		16,9
75	769,3	923,2	75	153,93	1154	SLS 75/75	140	270	266	190,5	45	125	35	190 x 4 70 **	M10 x 22 Ø 120	M38 x 2 15	22,7
75	769,3	923,2	200	153,93	3079	SLS 75/200	140	395	391	190,5	45	125		190 x 4 70 **	M10 x 22 Ø 120		31
110	1134,4	1361,2 *	75	227	1703	SLS 110/75	170	290	285	230,5	55	150		225 x 5 70 **	M12 x 25 Ø 150		36,5
110	1134,4	1361,2 *	200	227	4540	SLS 110/200	170	415	410	230,5	55	150		225 x 5 70 **	M12 x 25 Ø 150		44

* For 45T and 110T cylinders with Option A, maximum pressure is 500 bar

** Semi-trapezoidal thread

Product accessories

Find our guide about couplers on this page: Couplers fitted on single acting QUIRI 500 cylinders
