Hollow piston single acting cylinders, spring return – 500 bar – SLC
Light alloy
• Single acting, spring return
• Maximum pressure 600 bar (stroke to be limited at 80% of the whole stroke)
• Corrosion resistant light alloy body
• Chrome plated piston rod for cylinder 13 T
• Corrosion resistant light alloy piston rod for cylinders 35, 55, 80 T
• Wiper seals
• Delivered in standard without coupler

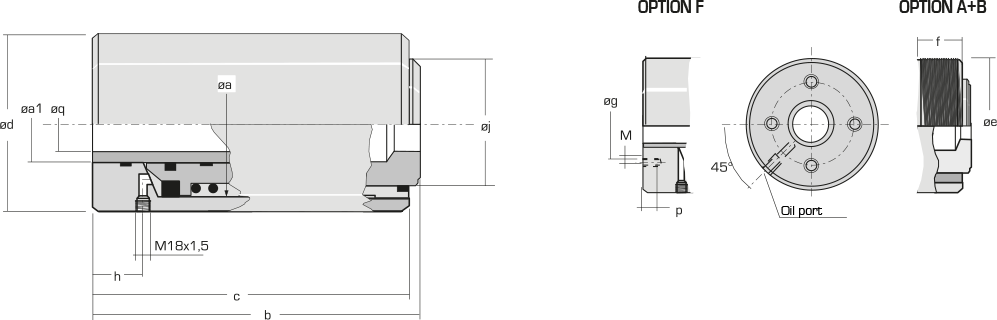

A+B : Body collar thread with rubber protection *
F : 4 base threaded mounting holes
| Cylinder category | Working force
500 bar |
Maximum force
600 bar |
Stroke | Effective area | Oil volume | Reference | Dimensions (mm) | Options | Weight | |||||||||
| Option A * | Option F | |||||||||||||||||
| Tons | kN | kN | mm | cm2 | cm3 | a | b | c | d | h | j | a1 | q | e | f | M x p on Øg | kg | |
| 13 | 129,6 | 155,6 | 60 | 25,92 | 160 | SLC 13/60 | 70 | 225 | 222 | 100,5 | 28 | 55 | 40 | 27 | M100 x 2 | 40 | M8 x 20 on Ø 65 | 6,8 |
| 35 | 333,8 | 400,5 | 60 | 66,76 | 400 | SLC 35/60 | 110 | 240 | 236 | 145,5 | 43 | 85 | 60 | 44 | 145 x 3 ** | 45 | M10 x 22 on Ø 90 | 10,8 |
| 125 | 835 | SLC 35/125 | 370 | 364 | 48 | 15,8 | ||||||||||||
| 55 | 548,8 | 658,5 | 55 | 109,76 | 604 | SLC 55/55 | 140 | 270 | 266 | 190,5 | 55 | 110 | 75 | 55 | 190 x 4 ** | 50 | M10 x 22 on Ø 120 | 23,2 |
| 80 | 816,8 | 980,1 | 50 | 163,36 | 817 | SLC 80/50 | 170 | 290 | 285 | 230,5 | 55 | 140 | 90 | 70 | 225 x 5 ** | 50 | M12 x 25 on Ø 150 | 34 |
* For 35, 55, and 80 T cylinders with Option A, maximum pressure is 500 bar
** Semi-trapezoidal threading
