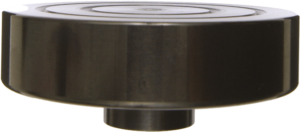

Flat saddles TPL – 500 bar

Protect piston rod end

Print this sheet

Flat saddles TPL – 500 bar : Lifting light alloy cylinders 500 bar - Quiri

Cylinder category Tons	Reference	Dimensions (mm)			Weight Kg	For cylinders
		a	b	c		SLS	SLE	SLT
6	TPL 6	60	17	16	0,4	6 – 10 T *	10 T	10/330
10
20	TPL 20	80	20	25	0,9	20 – 45 T *	20 – 45 T	20 T
45
75	TPL 75	120	22	35	2,1	75 – 110 T *	75 – 110 T	60 T
110

* Except for 30 mm stroke cylinders
