Double acting cylinders, hydraulic return – 500 bar – SLD

Light alloy

Features
Options

Features

• Double acting, hydraulic return
• Maximum pressure 600 bar (stroke to be limited at 80% of the whole stroke)
• Maximum pressure on return side: 250 bar
• Corrosion resistant light alloy body
• Chrome plated piston rod for cylinder 20 T
• Corrosion resistant light alloy piston rod for cylinders 45, 75, 110 T
• Wiper seal
• Delivered in standard without coupler

Options

A+B : Body collar thread with rubber protection *

Print this sheet

Double acting cylinders, hydraulic return – 500 bar – SLD : Lifting light alloy cylinders 500 bar - Quiri - 2

We recommend to fit a safety valve VS 700 on the retract side to avoid accidental over-pressurization

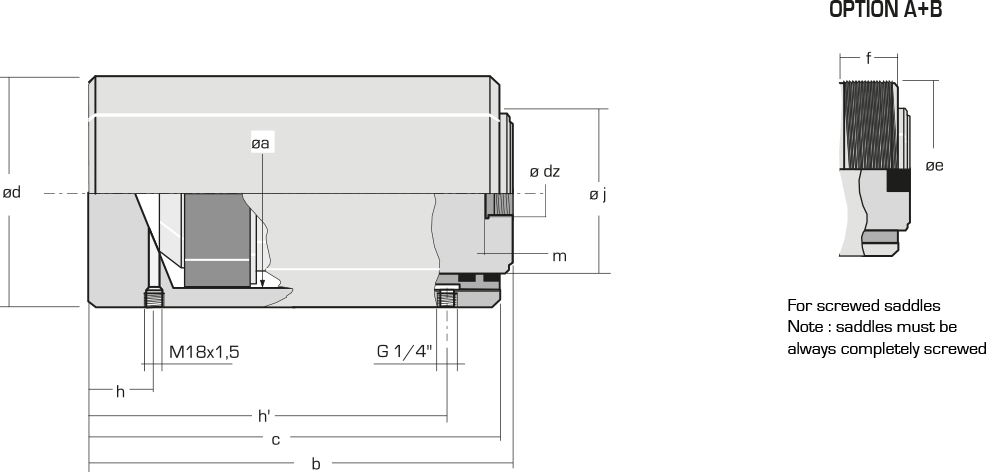

Cylinder category	Working force P : 500 bar R : 250 bar		Maximum force 600 bar	Stroke	Effective area	Oil volume	Reference	Dimensions (mm)									Option A		Weight
								a	b	c	d	h	h’	j	dz	m	e	f
Tons	kN		kN	mm	cm2	cm3													kg
20	P	192,4	230,8	150	38,48	577	SLD 20/150	70	315	297	100,5	28	241	55	M30 x 1,5	35	M100x2	40	8,8
	T	36,8			14,72	221
45	P	475	569,9 *	200	95,03	1901	SLD 45/200	110	380	361	145,5	40	300	85	M38 x 2	45	145×3 **	45	16,9
	T	95,7			38,29	766
75	P	769,3	923,2 *	200	153,93	3079	SLD 75/200	140	415	391	190,5	45	326	110	M60 x2	60	190×4 **	50	31
	T	147,2			58,9	1178
110	P	1134,4	1361,2 *	200	227	4540	SLD 110/200	170	435	410	230,5	55	315	140	M68 x 2	60	225×5 **	70	44
	T	182,5			73,04	1461

* For 35, 55, and 80 T cylinders with Option A, maximum pressure is 500 bar

** Semi-trapezoidal threading
