Single male fitting USM

For Ø8 and Ø12 steel pipe - ISO 8434-1 - S series - PN630

Print this sheet
Single male fitting USM : Valves & fitting - Quiri
Single male fitting USM : Valves & fitting - Quiri - 2

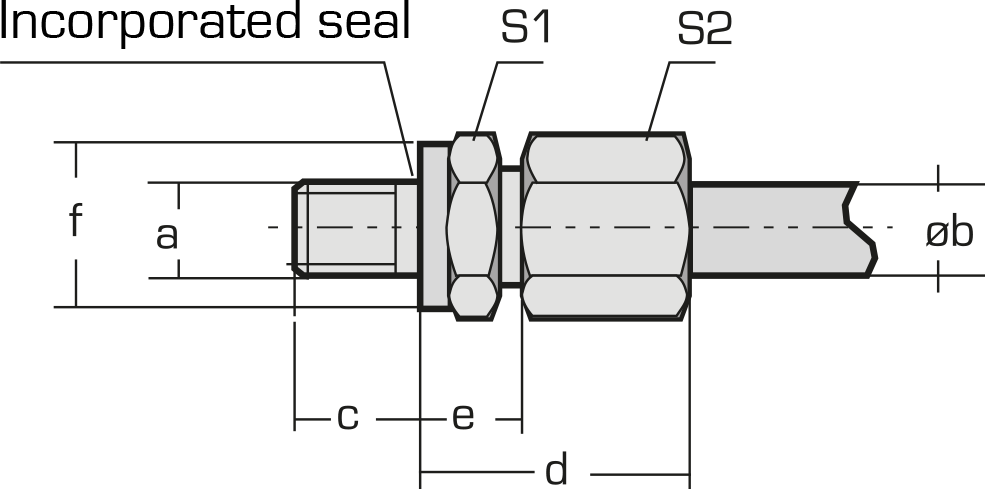

a b Reference Dimensions (mm)
c d e f S1 S2
G 1/4’’ 8 A32072 12 30 15 19 19 19
G 1/4’’ 12 A32076 12 33 16,5 19 22 24
G 3/8’’ 8 A32356 12 30 15,5 22 22 19
G 3/8’’ 12 A32074 12 33 17 22 22 24
G 1/2’’ 12 A32075 14 34 17,5 26 27 24
M18x1,5 8 A32197 12 33 17 23 24 19
M18x1,5 12 A32073 12 33 17 23 24 24
Single male fitting USM : Valves & fitting - Quiri - 3

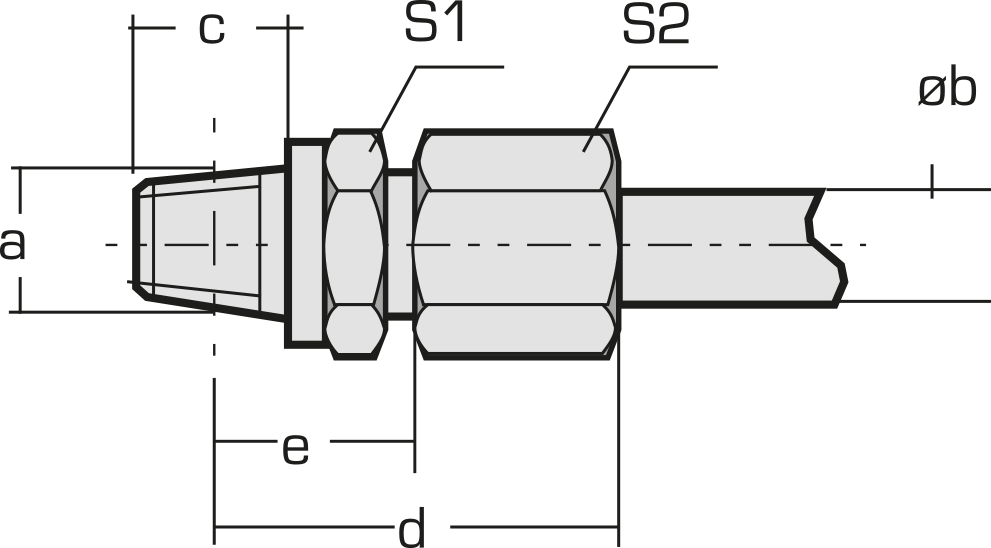

a b Reference Dimensions (mm)
c d e f S1 S2
1/4’’ NPT 8 A32051 15 33 18 17 19
1/4’’ NPT 12 A32087 15 33 18 22 24
3/8’’ NPT 8 A32196 15 33,5 17,5 22 19
3/8’’ NPT 12 A32077 15 33,5 17,5 22 24
