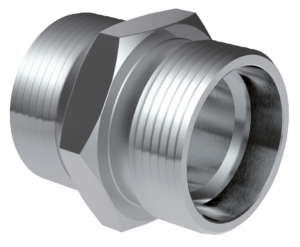

Double male fitting UD

For Ø8 and Ø12 steel pipe – ISO 8434-1 – S series – PN630

Print this sheet
Double male fitting UD : Valves & fitting - Quiri

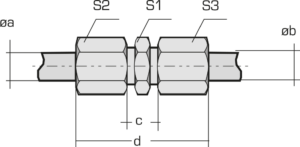

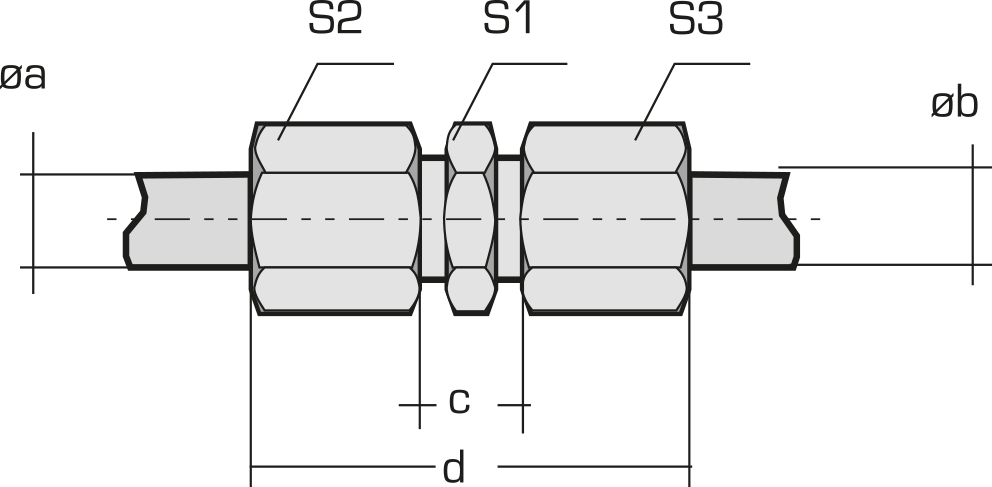

a b Reference Dimensions (mm)
c d e S1 S2
8 8 A32111 18 47 17 19 19
12 12 A32112 19 51 22 24 24
12 8 A32113 19,5 50 22 19 24
Double male fitting UD : Valves & fitting - Quiri - 2
