Home » Quiri Hydromécanique » Lifting equipments » Hydraulic hand pumps 1000 bar » Single acting 1000 bar hand pumps, 2 speeds – PMS

Single acting 1000 bar hand pumps, 2 speeds – PMS

For single acting cylinders

Features

• two speeds
• External adjustable pressure relief valve, set at 1000 bar
• Delivered with oil

Options

Other relief valve setting : on request

Print this sheet
Single acting 1000 bar hand pumps, 2 speeds – PMS : Hydraulic hand pumps 1000 bar - Quiri - 2
Pressure



bar

 Oil flow



cm3/pump stroke

 Maximum

pressure

bar

 Oil flow



cm3/pump stroke

 Oil capacity Reference Dimension (mm) Weight



kg
Total Usable a b c d e f g h
LP HP cm3 cm3
20 19,4 1000 1,2 850 750 PMS 10207 560 180 164 112 140 140 442 517 7,8

HOSES WITH COUPLERS

Single acting 1000 bar hand pumps, 2 speeds – PMS : Hydraulic hand pumps 1000 bar - Quiri - 3
Standard length in m * Reference
1 A38055
2 A38056
3 A38057

* Other length on request

BLOCK – PRESSURE GAUGE – ADAPTOR

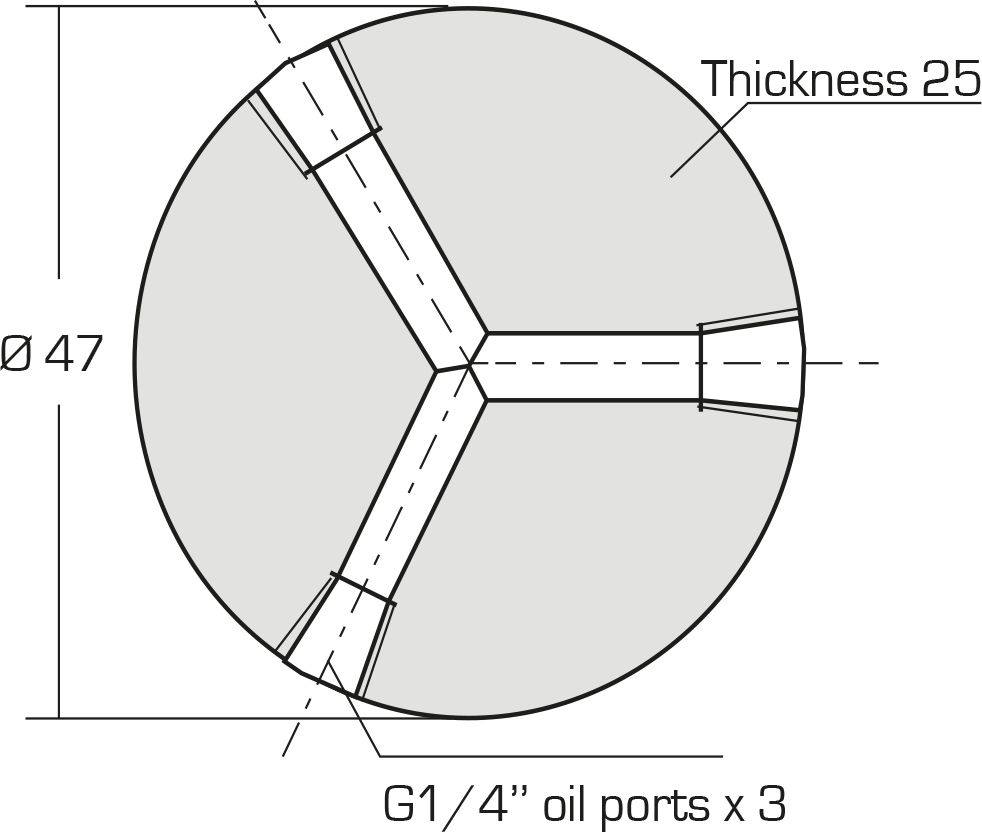

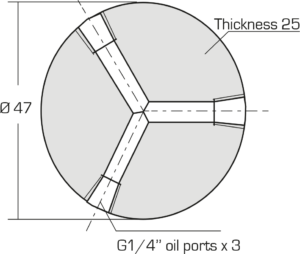

Block : MF 13

Single acting 1000 bar hand pumps, 2 speeds – PMS : Hydraulic hand pumps 1000 bar - Quiri - 4

Pressure gauge ø100 1/2’’ NPT bottom connection: MG 1500

Single acting 1000 bar hand pumps, 2 speeds – PMS : Hydraulic hand pumps 1000 bar - Quiri - 5

Pressure gauge adaptor : AM 053

Single acting 1000 bar hand pumps, 2 speeds – PMS : Hydraulic hand pumps 1000 bar - Quiri - 6

View similar products

Single acting 1000 bar hand pumps, 2 speeds (SA25 + 8) – SA

For single acting cylinders
