Air hydraulic pumps with foot control – 700 bar – PHP

For single and double acting cylinders

Features

• Hydraulic pressure proportional to air pressure
• Working cycle : advance / hold / return
• Manual operated valve for double acting cylinders (4/3-way)
• Foot operated valve for single acting cylinders (3/3-way)
• External adjustable pressure relief valve, set at 700 bar
• Oil capacity : from 1300 to 4000 cm3 (delivered with oil)
• Model 1300 cm3 in light alloy
• Model 2500 cm3 in polyethylene
• Model 4000 cm3 in steel
• Air inlet pressure: 7 bar
• Oil flow: from 1200 to 70 cm3/min
• Air consumption: 350 l/min (without load) at 7 bar air pressure

Options

• other relief valve setting : on request

Print this sheet

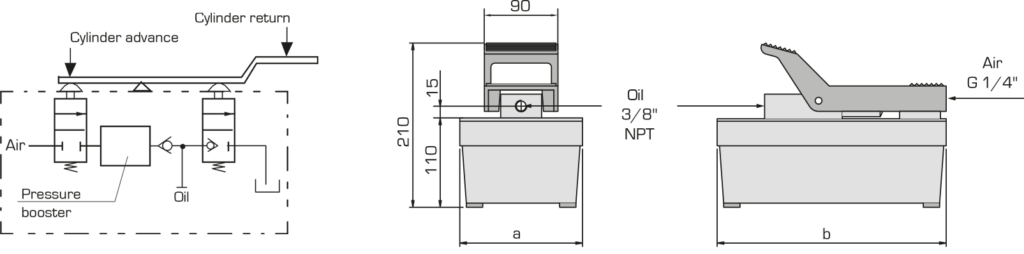

PHP 713/723/753

Air hydraulic pumps with foot control – 700 bar – PHP : Air hydraulic pumps 700 bar - Quiri - 2

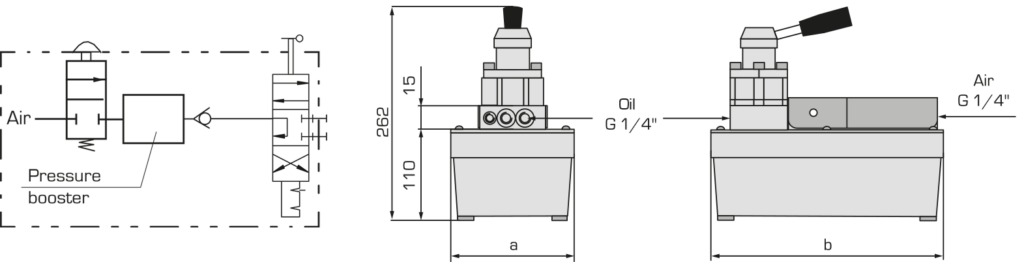

PHP 724/754

Air hydraulic pumps with foot control – 700 bar – PHP : Air hydraulic pumps 700 bar - Quiri - 3
Maximum

pressure

 Usable oil capacity

(cm3)

 Oil flow (cm3/min) Reference To use

with cylinder…

 Dimensions Weight



(kg)
no load at 700 bar a b
700 1300 1200 70 PHP 713 single acting 133 280 9
700 2400 1200 70 PHP 723 single acting 170 310 11
700 2400 1200 70 PHP 724 double acting 170 310 13
700 4000 1200 70 PHP 753 single acting 320 320 13
700 4000 1200 70 PHP 754 double acting 320 320 15

Product accessories

ø 100 pressure gauge adaptor – 700 bar – AM 135

ø 100 pressure gauge – 700 bar

Standard Thermoplastic hoses (internal Ø 6mm) – 700 bar

Internal 6mm
