Air hydraulic pumps with remote control – 700 bar – PHP

For single acting cylinders

Features

• Hydraulic pressure proportional to air pressure
• Working cycle : advance / hold / return
• External adjustable pressure relief valve, set at:
– 700 bar for PHP 705 et 711
– 1500 bar for PHP 1530
• Oil capacity: 500, 1250 and 3000 cm³ (delivered with oil)
• Air inlet pressure: 7 bar
• Oil flow:
– PHP 705 et 711: from 700 to 50 cm³/min
– PHP 1530: from 1500 to 43 cm³/min
• Air consumption: 270 l/min (without load) under 7 bar air pressure

Options

Other relief valve setting : on request

Print this sheet
Air hydraulic pumps with remote control – 700 bar – PHP : Air hydraulic pumps 700 bar - Quiri - 2
Maxi. oil pressure at 7 bar air

bar

 Oil flow (no load)



cm3/min

 Oil flow (at maxi. pressure)

cm3/min

 Usable oil capacity

cm3

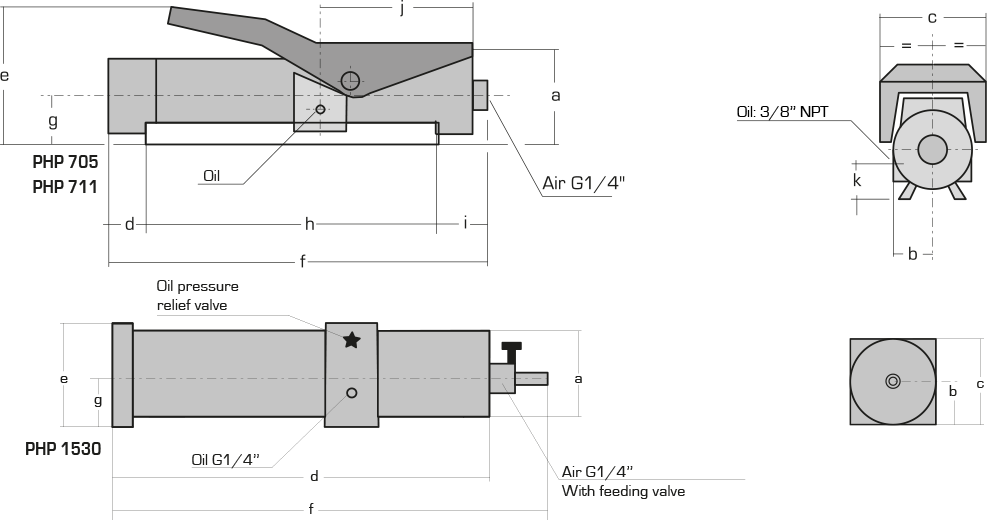

 Reference To use with cylinder… Dimensions (mm) Weight



Kg
a b c d e f g h i j k
700 700 50 500 PHP 705 single acting 120 40 120 40 150 415 55 335 40 180 36 7,5
700 700 50 1250 PHP 711 single acting 120 40 120 300 150 675 55 335 40 180 36 9,5
1500 700 43 3000 PHP 1530 single acting 105 65 120 667 125 750 55 / / / / 15

Product accessories

ø 100 pressure gauge adaptor – 700 bar – AM 135

ø 100 pressure gauge – 700 bar

Standard Thermoplastic hoses (internal Ø 6mm) – 700 bar

Internal 6mm
