Swing clamp with planar rotation – 160 bar – With sensing rod PL**XA

Double-acting - planar rotation - with sensing rod
Force at 160 bar: 10 and 15 kN

Supply through counter-bores under the flange ring

Swing clamp with planar rotation – 160 bar – With sensing rod PL**XA : Swing clamps with position detection - Quiri

Characteristics

• detection by sensing rod
• left or right planar rotation, 90°±2°
• bleeders on clamping and release side
• rod indexing
• maximum service pressure: 160 bar

Options

• clamping arm: see accessories section
• 60°, 45° or 0° rotation on request

Nota

Clamps are supplied with O-rings, lock nut and lock washer
(dimensions and tightening torque: see Lock washer for clamp type P11, P21 and Nut for clamp type P31 and P41)
O-rings: 7.65 x 1.78 90 NBR

Print this sheet

Swing clamp with planar rotation – 160 bar – With sensing rod PL**XA : Swing clamps with position detection - Quiri - 2

Definition of forces depending on clamping arm: consult the guide
Important recommendations: consult the guide

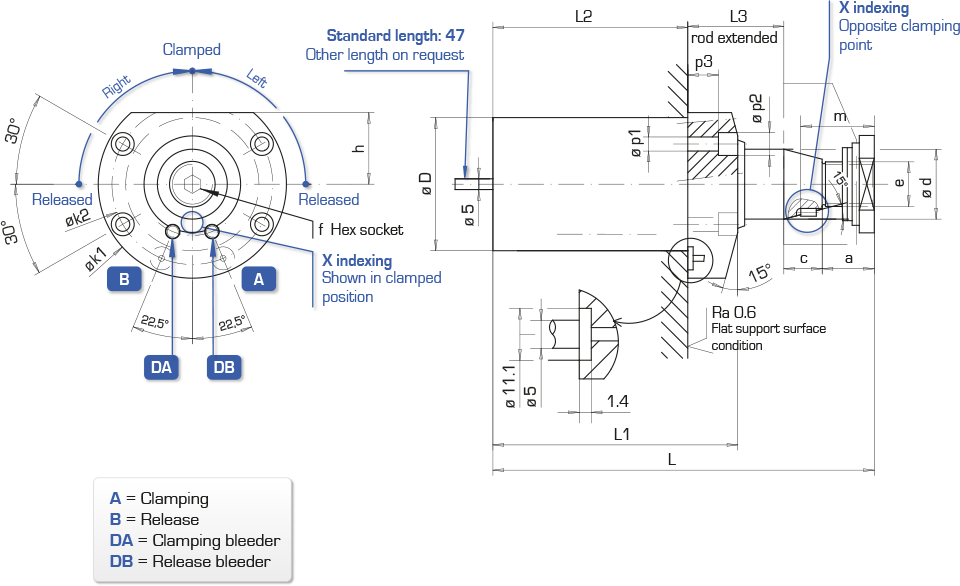

Force at 160 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	Type	Reference
Force at 160 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	Type	Reference	a	c	øD	e	f span-ner	h	øk1 øk2	L	L1	L2	L3	m	p1	p2	p3
kN	mm	mm	l/min	cm³				mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
10	36	12	2	41	right	PL 31 DX A	192 046/050	18	20	80	M24 x 1.5	10	41	110	211.5	158.5	130.5	43	29	8.5	14	11	3D
10	36	12	2	53	left	PL 31 GX A	192 046/150	18	20	80	M24 x 1.5	10	41	95	211.5	158.5	130.5	43	29	8.5	14	11	3D
15	42	12	3	74	right	PL 41 DX A	192 047/050	20	22	93	M30 x 1.5	12	48	130	236	179	149	45	31	10.5	17	12	3D
15	42	12	3	88	left	PL 41 GX A	192 047/150	20	22	93	M30 x 1.5	12	48	112	236	179	149	45	31	10.5	17	12	3D
