Swing clamp with planar rotation – 160 bar – Pneumatic sensing of released position PL**XB1

Double-acting - planar rotation - pneumatic sensing
released position - Force at 160 bar: 10 and 15 kN

Supply through counter-bores under the flange ring
Fastening with screws

• detection by leak-free valves, released position
• right or left planar rotation, 90° ±2°
• bleeder near clamping and release
• rod indexing
• maximum service pressure: 160 bar

• clamping arm: see accessories section
• 60°, 45° or 0° rotation on request

Clamps are supplied with O-rings, lock nut and lock washer
(dimensions and tightening torque: see Lock washer for clamp type P11, P21 and Nut for clamp type P31 and P41)
O-rings: 7.65 x 1.78 90 NBR

Print this sheet
Swing clamp with planar rotation – 160 bar – Pneumatic sensing of released position PL**XB1 : Swing clamps with position detection - Quiri - 2

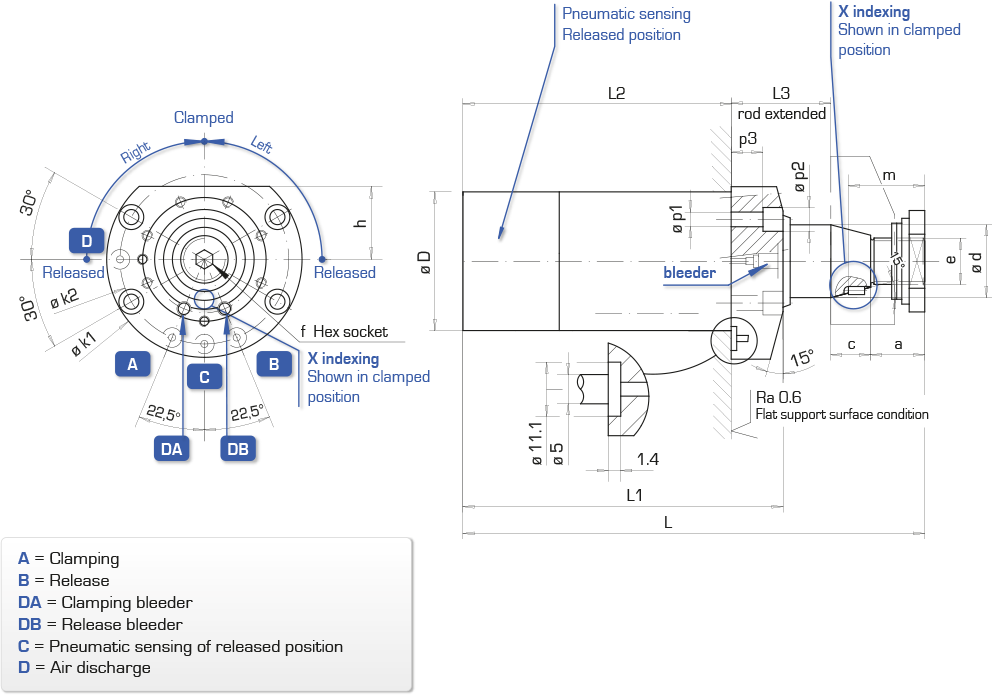

Definition of forces depending on clamping arm: consult the guide
Important recommendations: consult the guide

F max

at

160

bar

Rod

ød

Travel Max flow rate

A

Swept volume

A

B

Direction

of rotation

Type Reference
a





c





øD





e





f



span-ner

h





øk1

øk2



L





L1





L2





L3





m





p1





p2





p3





kN mm mm l/min cm3 mm mm mm mm mm mm mm mm mm mm mm mm mm mm
10 36 12 2 41 right PL 31 DX B1 192 048/050 18 20 80 M24 x 1.5 10 41 110 242.5 189.5 161.5 43 29 8.5 14 11 3D
53 left PL 31 GX B1 192 048/150 95 3D
15 42 12 3 74 right PL 41 DX B1 192 049/050 20 22 93 M30 x 1.5 12 48 130 261 204 174 45 31 10.5 17 12 3D
88 left PL 41 GX B1 192 049/150 112 3D
