Double-acting swing clamp – Threaded – 250 bar – Supplied through taps on the head – threaded body P

Double-acting - planar rotation
Force at 250 bar: 4 to 24 kN

Threaded body
Supply through taps
Fastening using nut on the body

Double-acting swing clamp – Threaded – 250 bar – Supplied through taps on the head – threaded body P : Swing clamps with planar rotation - Quiri

Characteristics

• rotation in left or right plane
• rod indexing
• clamps with bleeders
• for machining of indexing on the clamping arm see BC, BCK, BM, BMK, BL, BLK

• different travel ranges on request
• choice of rotation angle in 1° increments (please specify with the order)
• metal scraper (please specify with the order)
• optional indexing (please specify with the order)

Options 15° taper

STANDARD WITH INDEXING

• different travel ranges on request
• choice of rotation angle in 1° increments (please specify with the order)
• metal scraper (please specify with the order)
• also with no optional indexing (please specify with the order)

Nota

The clamps are supplied with a lock nut and lock washer (dimensions and tightening torque: see Lock washer for clamp type P11, P21 and Nut for clamp type P31 and P41).

Print this sheet

Double-acting swing clamp – Threaded – 250 bar – Supplied through taps on the head – threaded body P : Swing clamps with planar rotation - Quiri - 2

Definition of forces depending on clamping arm, consult the guide
Important recommendations: consult the guide
NOT INDEXED: The pin may be removed using a drift punch

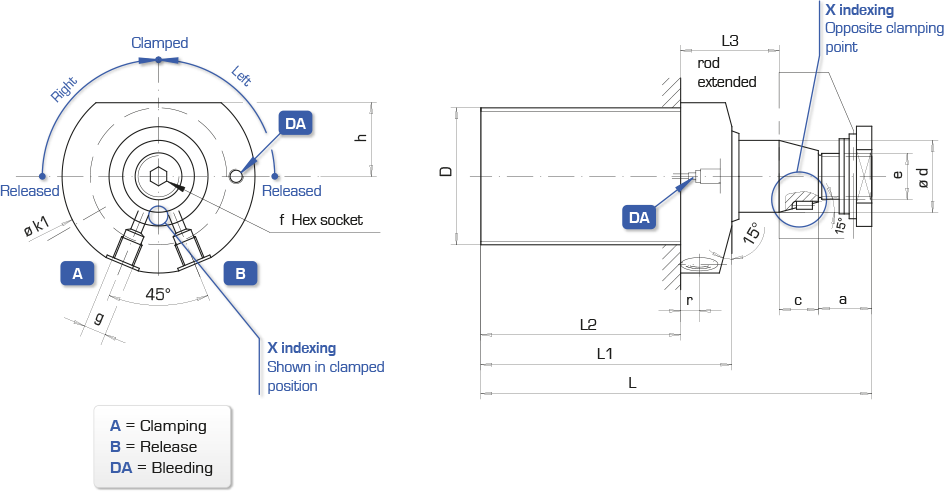

F max at 250 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	α = 15° (with indexing)			α = 1:10 (without indexing)
F max at 250 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	Type	Reference	e1	Reference	e2	a	c	D	f span-ner	g	h	øk1	L	L1	L2	L3	r
kN	mm	mm	l/min	cm³							mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
4	18	8	0.4	5.3	right	P 11 DX	191 157/050	M12x1.5	610-R-018	M16x1.5	13	10	M36 x 1.5	5	G1/8’’	20	58	121	88	66	32	8	3D
4	18	8	0.4	7.4	left	P 11 GX	191 157/150	M12x1.5	610-L-018	M16x1.5	13	10	M36 x 1.5	5	G1/8’’	20	58	121	88	66	32	8	3D
8	25	12	0.9	15	right	P 21 DX	191 057/050	M16x1.5	610-R-025	M22x1.5	16	14	M52 x 1.5	6	G1/4’’	28	70	152	107	81	41	11	3D
8	25	12	0.9	21	left	P 21 GX	191 057/150	M16x1.5	610-L-025	M22x1.5	16	14	M52 x 1.5	6	G1/4’’	28	70	152	107	81	41	11	3D
16	36	12	2	41	right	P 31 DX	191 077/050	M24x1.5	610-R-036	M30x1.5	18	20	M72 x 2	10	G1/4’’	38	110	195	142	114	43	11	3D
16	36	12	2	53	left	P 31 GX	191 077/150	M24x1.5	610-L-036	M30x1.5	18	20	M72 x 2	10	G1/4’’	38	110	195	142	114	43	11	3D
24	42	12	3	74	right	P 41 DX	191 058/050	M30x1.5	610-R-042	M36x1.5	20	22	M85 x 2	12	G1/4’’	45	125	218	161	131	45	12	3D
24	42	12	3	88	left	P 41 GX	191 058/150	M30x1.5	610-L-042	M36x1.5	20	22	M85 x 2	12	G1/4’’	45	125	218	161	131	45	12	3D

Double-acting swing clamp – Threaded – 250 bar – Supplied through taps on the head – threaded body P

Characteristics

Options 1:10 taper

Options 15° taper

Nota

Product accessories

Fastening accessories: EMB

Short clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BC

Short clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BCK

Medium clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BM

Medium clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BMK

Long clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BL

Long clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BLK

Lock washer for clamp type P11, P21

Nut for clamp type P31 and P41 with 15° taper
