Double-acting swing clamp – Screw cartridge – 250 bar PCV

Double-acting - planar rotation
Max force at 250 bar: 4 to 24 kN

Screw cartridge

Characteristics

• right or left planar rotation, 90° ± 2°

Options

• clamping arm: see BC, BCK, BM, BMK, BL, BLK
• 60°, 45° or 0° rotation on request
• metal scraper

Clamps are supplied with O-rings, lock nut and lock washer.
Clamps with a 15° taper are supplied with a lock nut and lock washer (dimensions and tightening torque: see Lock washer for clamp type P11, P21 and Nut for clamp type P31 and P41)

The arm cannot be indexed on the rod.

Print this sheet

Double-acting swing clamp – Screw cartridge – 250 bar PCV : Swing clamps with planar rotation - Quiri - 2

Recess machining dimensions: see below
Definition of forces depending on clamping arm: consult the guide
Important recommendations: consult the guide

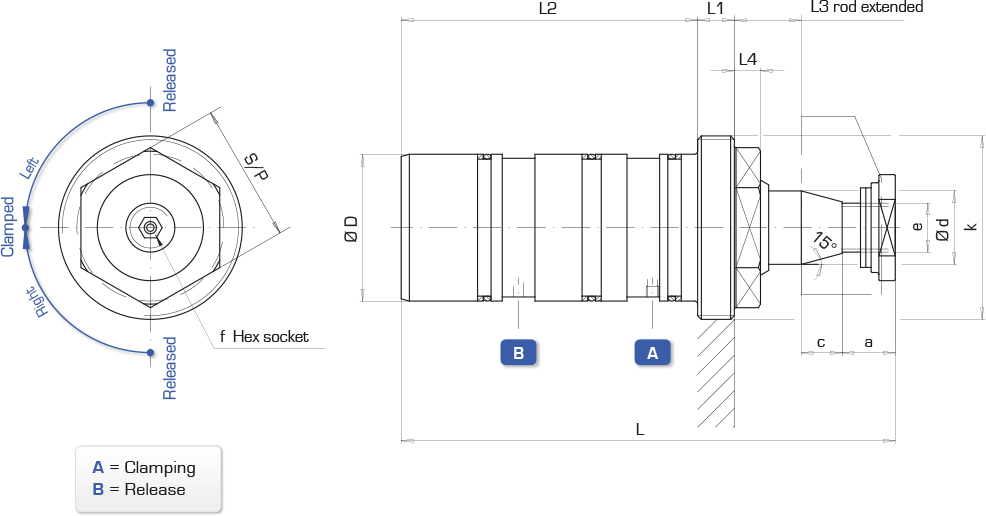

F max at 250 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	α = 15° (without indexing)			α = 1:10 (without indexing)
F max at 250 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	Type	Reference	e1	Reference	e2	a	c	øD	f span-ner	k	L	L1	L2	L3	L4	S/P
kN	mm	mm	l/min	cm³							mm	mm	mm	mm		mm	mm	mm	mm	mm	mm
4	18	8	0.4	5.3	right	PCV 11 D	191 160/000	M12x1.5	655-R-018	M16x1.5	13	10	36	5	M45 x 1.5 – 6g	121	9	72.6	16.4	6.4	34	3D
4	18	8	0.4	7.4	left	PCV 11 G	191 160/100	M12x1.5	655-L-018	M16x1.5	13	10	36	5	M45 x 1.5 – 6g	121	9	72.6	16.4	6.4	34	3D
8	25	12	0.9	15	right	PCV 21 D	191 066/000	M16x1.5	655-R-025	M22x1.5	16	14	52	6	M64 x 2 – 6g	152	9	91.6	21.4	6.4	50	3D
8	25	12	0.9	21	left	PCV 21 G	191 066/100	M16x1.5	655-L-025	M22x1.5	16	14	52	6	M64 x 2 – 6g	152	9	91.6	21.4	6.4	50	3D

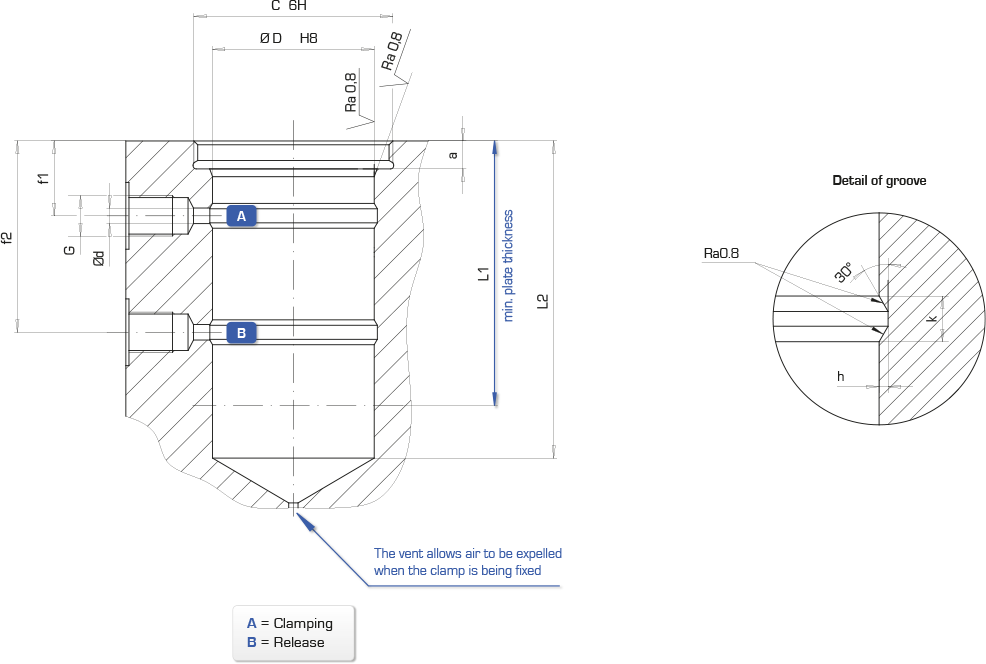

Recess machining dimensions

Double-acting swing clamp – Screw cartridge – 250 bar PCV : Swing clamps with planar rotation - Quiri - 3

IMPORTANT:
Provide bleeders at highest points of fixtures
General tolerances Js13
Round off and polish sharp angles

Type	øD H8	C H6	L1 min	L2 min	ød	a	f1	f2	G	h min	k
	mm		mm	mm	mm	mm	mm	mm		mm	mm
PCB 11	36	M45 x1.5	66	83	3	9	20.1	52.85	G1/4’’	1	8
PCB 21	52	M64 x 2	78	102	5	9	23.1	61.6	G1/4’’	1	8

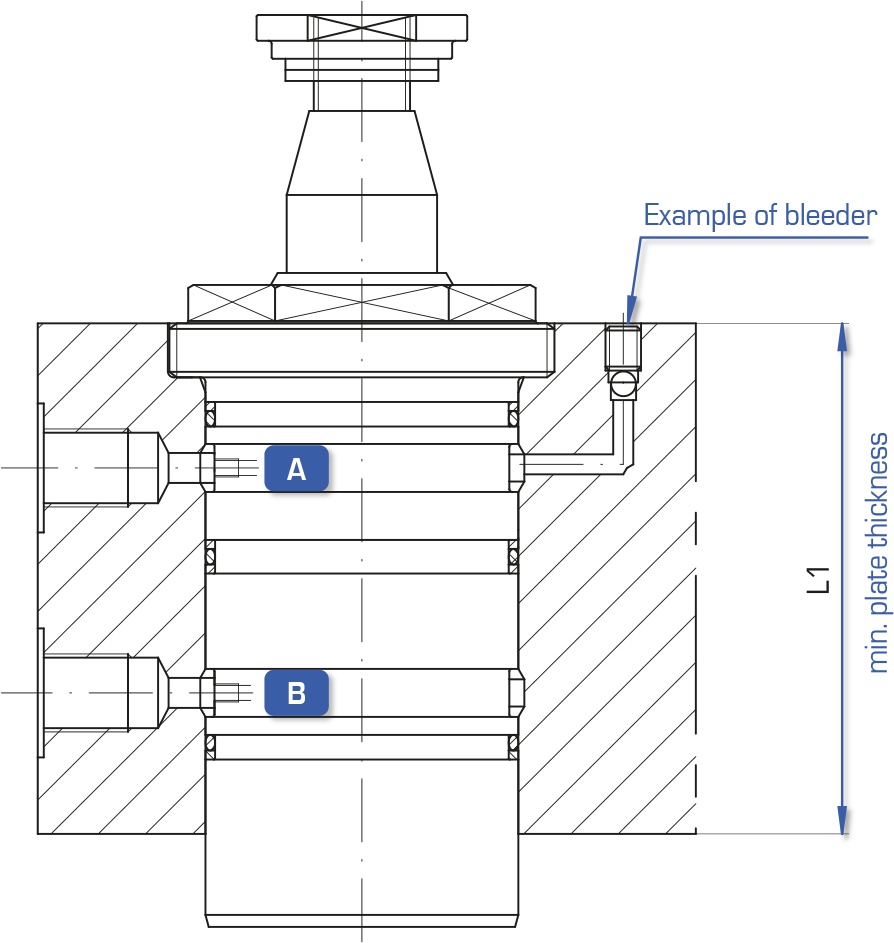

For example: Fixture through a plate
