Double-acting swing clamp – 250 bar – Supplied through taps on the base PS

Double-acting - planar rotation
Max force at 250 bar: 4 to 24 kN

Supply through taps on the base

Double-acting swing clamp – 250 bar – Supplied through taps on the base PS : Swing clamps with planar rotation - Quiri

Characteristics

• rotation in left or right plane
• rod indexing
• clamps with bleeders
• for machining of indexing on the clamping arm see BC, BCK, BM, BMK, BL, BLK

• different travel ranges on request
• choice of rotation angle in 1° increments (please specify with the order)
• metal scraper (please specify with the order)
• optional indexing (please specify with the order)

Options 15° taper

STANDARD WITH INDEXING

• different travel ranges on request
• choice of rotation angle in 1° increments (please specify with the order)
• metal scraper (please specify with the order)
• also with no optional indexing (please specify with the order)

Nota

Clamps are supplied with O-rings, lock nut and lock washer.
Clamps with a 15° taper are supplied with a lock nut and lock washer (dimensions and tightening torque: see Lock washer for clamp type P11, P21 and Nut for clamp type P31 and P41)

Print this sheet

Double-acting swing clamp – 250 bar – Supplied through taps on the base PS : Swing clamps with planar rotation - Quiri - 2

Definition of forces depending on clamping arm: consult the guide
Important recommendations: consult the guide
NOT INDEXED: The pin may be removed using a drift punch

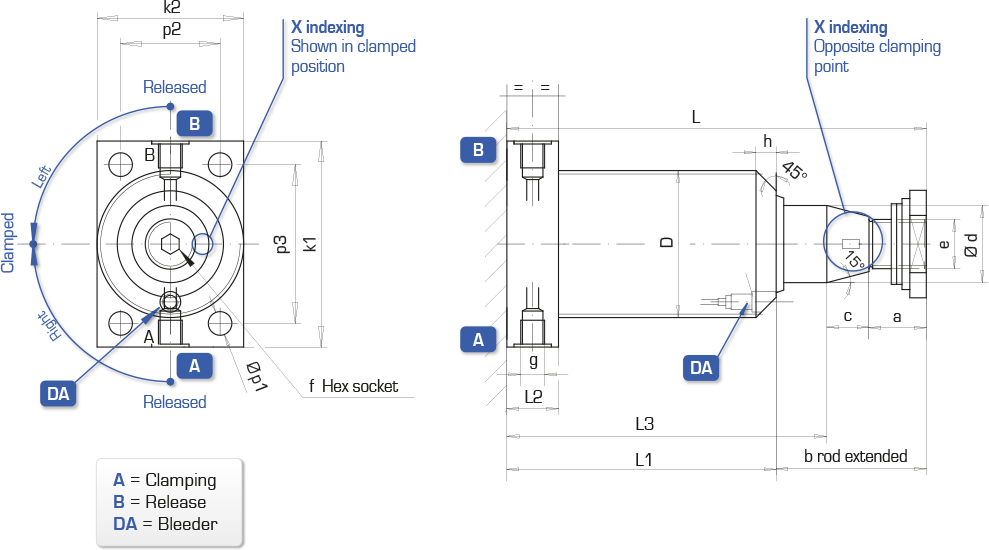

F max at 250 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	α = 15° (with indexing)			α = 1:10 (without indexing)
F max at 250 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	Type	Reference	e1	Reference	e2	a	c	D	f span-ner	g	h	L	L1	L2	L3	k1 k2	p1	p2	p3
kN	mm	mm	l/min	cm³							mm	mm		mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
4	18	8	0.4	5.3	right	PS 11 DX	191 158/050	M12x1.5	M 690-R-018	M16x1.5	13	10	M45 x 1.5	5	G1/8’’	6	121	88	22	98	65	6.5	30	50	3D
4	18	8	0.4	7.4	left	PS 11 GX	191 158/150	M12x1.5	M 690-L-018	M16x1.5	13	10	M45 x 1.5	5	G1/8’’	6	121	88	22	98	45	6.5	30	50	3D
8	25	12	0.9	15	right	PS 21 DX	191 148/050	M16x1.5	M 690-R-025	M22x1.5	16	14	M60 x 1.5	6	G1/4’’	8	152	107	22	122	83	8.5	44	65	3D
8	25	12	0.9	21	left	PS 21 GX	191 148/150	M16x1.5	M 690-R-025	M22x1.5	16	14	M60 x 1.5	6	G1/4’’	8	152	107	22	122	63	8.5	44	65	3D
16	36	12	2	41	right	PS 31 DX	192 118/050	M24x1.5	M 690-R-036	M30x1.5	18	20	M80 x 2	10	G1/4’’	12	195	142	25	157	110	13	60	86	3D
16	36	12	2	53	left	PS 31 GX	192 118/150	M24x1.5	M 690-R-036	M30x1.5	18	20	M80 x 2	10	G1/4’’	12	195	142	25	157	80	13	60	86	3D
24	42	12	3	74	right	PS 41 DX	192 119/050	M30x1.5	M 690-R-042	M36x1.5	20	22	M95 x 2	12	G1/4’’	16	218	161	25	176	120	15	70	96	3D
24	42	12	3	88	left	PS 41 GX	192 119/150	M30x1.5	M 690-R-042	M36x1.5	20	22	M95 x 2	12	G1/4’’	16	218	161	25	176	95	15	70	96	3D

Double-acting swing clamp – 250 bar – Supplied through taps on the base PS

Characteristics

Options 1:10 taper

Options 15° taper

Nota

Product accessories

Fastening accessories: EMB

Short clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BC

Short clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BCK

Medium clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BM

Medium clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BMK

Long clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BL

Long clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BLK

Lock washer for clamp type P11, P21

Nut for clamp type P31 and P41 with 15° taper
