Double-acting swing clamp – 250 bar – Flanged cylindrical base PLF

Double-acting - planar rotation
Max force at 250 bar: 4 to 24 kN

Supply through counter-bores on the base

Double-acting swing clamp – 250 bar – Flanged cylindrical base PLF : Swing clamps with planar rotation - Quiri

Characteristics

• rotation in left or right plane
• rod indexing
• clamps with bleeders
• for machining of indexing on the clamping arm see BC, BCK, BM, BMK, BL, BLK

• different travel ranges on request
• choice of rotation angle in 1° increments (please specify with the order)
• metal scraper (please specify with the order)
• optional indexing (please specify with the order)

Options 15° taper

STANDARD WITH INDEXING

• different travel ranges on request
• choice of rotation angle in 1° increments (please specify with the order)
• metal scraper (please specify with the order)
• also with no optional indexing (please specify with the order)

Nota

Clamps are supplied with O-rings, lock nut and lock washer.
Clamps with a 15° taper are supplied with a lock nut and lock washer (dimensions and tightening torque: see Lock washer for clamp type P11, P21 and Nut for clamp type P31 and P41).
O-rings:

5.28 x 1.78 – 90 Shore for PLF11 and PLF21 A51156
7.65 x 1.78 – 90 Shore for PLF31 and PLF41 A51150

Print this sheet

Double-acting swing clamp – 250 bar – Flanged cylindrical base PLF : Swing clamps with planar rotation - Quiri - 2

Definition of forces depending on clamping arm: consult the guide
Important recommendations: consult the guide
NOT INDEXED: The pin may be removed using a drift punch

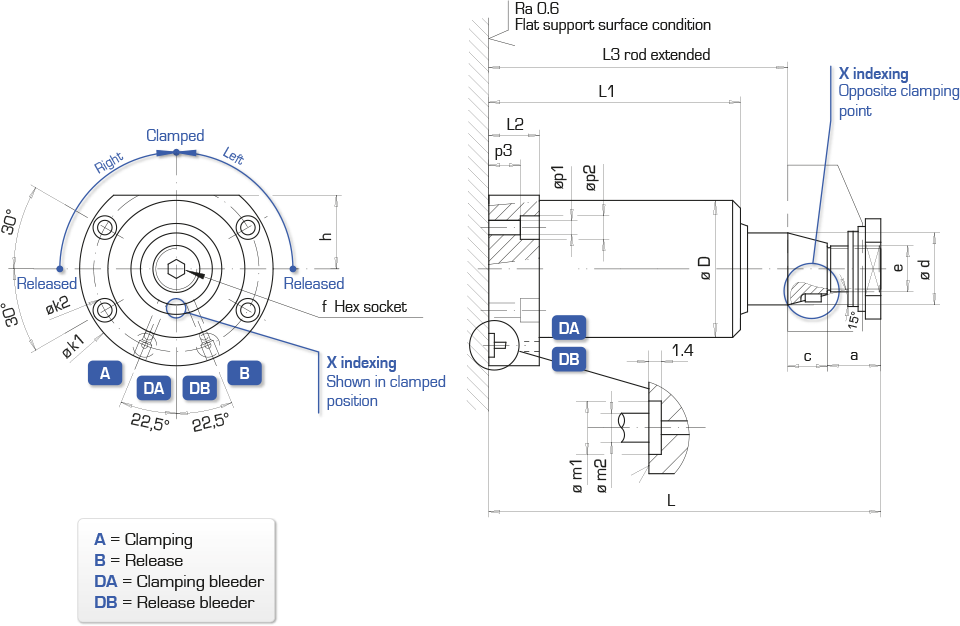

F max at 250 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	α = 15° (with indexing)			α = 1:10 (without indexing)
F max at 250 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	Type	Reference	e1	Reference	e2	a	c	øD 0 -0.2	f span-ner	h	øk1 øk2	L	L1	L2	L3	m1	m2	p1	p2	p3
kN	mm	mm	l/min	cm³							mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
4	18	8	0.4	5.3	right	PLF 11 DX	191 166/050	M12x1.5	660-R-018	M16x1.5	13	10	36	5	20	58	121	88	40	98	8.8	4	5.5	9	35	3D
4	18	8	0.4	7.4	left	PLF 11 GX	191 166/150	M12x1.5	660-L-018	M16x1.5	13	10	36	5	20	47	121	88	40	98	8.8	4	5.5	9	35	3D
8	25	12	0.9	15	right	PLF 21 DX	191 115/050	M16x1.5	660-R-025	M22x1.5	16	14	52	6	28	76	152	107	50	122	8.8	4	6.5	10.5	44	3D
8	25	12	0.9	21	left	PLF 21 GX	191 115/150	M16x1.5	660-L-025	M22x1.5	16	14	52	6	28	63	152	107	50	122	8.8	4	6.5	10.5	44	3D
16	36	12	2	41	right	PLF 31 DX	192 063/050	M24x1.5	660-R-036	M30x1.5	18	20	72	10	38	110	195	142	58	157	11.1	5	10.5	17	48	3D
16	36	12	2	53	left	PLF 31 GX	192 063/150	M24x1.5	660-L-036	M30x1.5	18	20	72	10	38	90	195	142	58	157	11.1	5	10.5	17	48	3D
24	42	12	3	74	right	PLF 41 DX	192 064/050	M30x1.5	660-R-042	M36x1.5	20	22	85	12	45	125	218	161	65	176	11.1	5	10.5	17	55	3D
24	42	12	3	88	left	PLF 41 GX	192 064/150	M30x1.5	660-L-042	M36x1.5	20	22	85	12	45	105	218	161	65	176	11.1	5	10.5	17	55	3D

Double-acting swing clamp – 250 bar – Flanged cylindrical base PLF

Characteristics

Options 1:10 taper

Options 15° taper

Nota

Product accessories

Fastening accessories: EMB

Short clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BC

Short clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BCK

Medium clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BM

Medium clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BMK

Long clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BL

Long clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BLK

Lock washer for clamp type P11, P21

Nut for clamp type P31 and P41 with 15° taper
