Double-acting swing clamp – 250 bar – Flanged base PF

Double-acting - planar rotation
Max force at 250 bar: 4 to 24 kN

Supply through counter-bores under the base
Fastening using 4 screws on rectangular base

Double-acting swing clamp – 250 bar – Flanged base PF : Swing clamps with planar rotation - Quiri

Characteristics

• rotation in left or right plane
• rod indexing
• clamps with bleeders
• for machining of indexing on the clamping arm see BC, BCK, BM, BMK, BL, BLK

• different travel ranges on request
• choice of rotation angle in 1° increments (please specify with the order)
• metal scraper (please specify with the order)
• optional indexing (please specify with the order)

Options 15° taper

STANDARD WITH INDEXING

• different travel ranges on request
• choice of rotation angle in 1° increments (please specify with the order)
• metal scraper (please specify with the order)
• also with no optional indexing (please specify with the order)

Nota

Clamps with a 15° taper are supplied with a lock nut and lock washer (dimensions and tightening torque: see Lock washer for clamp type P11, P21 and Nut for clamp type P31 and P41) and O-rings 7.65 x 1.78 90 NBR

Print this sheet

Double-acting swing clamp – 250 bar – Flanged base PF : Swing clamps with planar rotation - Quiri - 2

Definition of forces depending on clamping arm: consult the guide
Important recommendations: consult the guide
NOT INDEXED: The pin may be removed using a drift punch

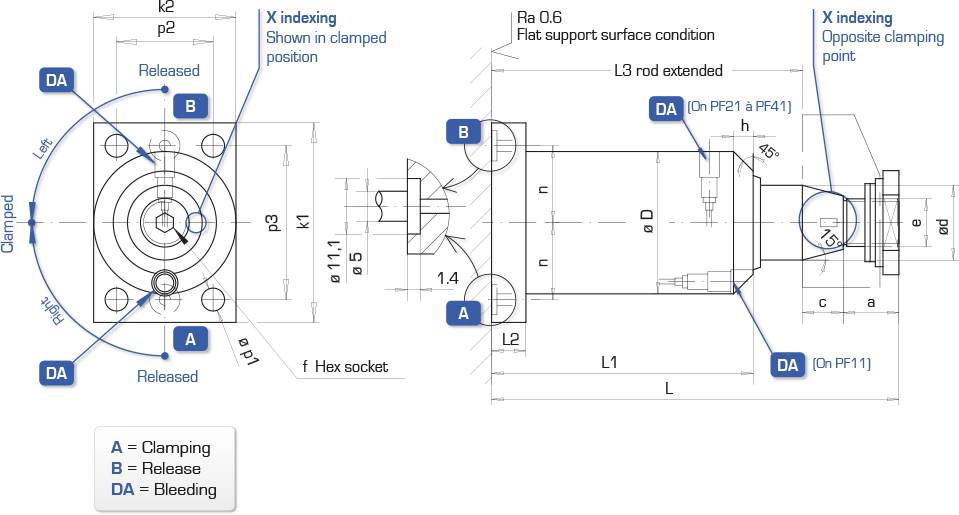

F max at 250 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	α = 15° (with indexing)			α = 1:10 (without indexing)
F max at 250 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	Type	Reference	e1	Reference	e2	a	c	øD	f span-ner	h	k1 k2	L	L1	L2	L3	n	p1	p2	p3
kN	mm	mm	l/min	cm³							mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
4	18	8	0.4	5.3	right	PF 11 DX	191 159/050	M12x1.5	630-R-018	M16x1.5	13	10	45	5	6	65	121	88	22	98	24	6.5	30	50	3D
		8		7.4	left	PF 11 GX	191 159/150		630-L-018							65	121	88		98					3D
		15		7.3	right	PF 11 DX C15	191 178/050		630-R-018-15							45	142	102		119
		15		10.9	left	PF 11 GX C15	191 178/150		630-L-018-15							45	142	102		119
8	25	12	0.9	15	right	PF 21 DX	191 063/060	M16x1.5	630-R-025	M22x1.5	16	14	60	6	8	85	152	107	22	122	32	8.5	44	65	3D
		12		21	left	PF 21 GX	191 063/160		630-L-025							85	152	107		122					3D
		25		20.2	right	PF 21 DX C25	191 179/050		630-R-025-25							63	191	133		161
		25		32.5	left	PF 21 GX C25	191 179/150		630-L-025-25							63	191	133		161
16	36	12	2	41	right	PF 31 DX	191 078/050	M24x1.5	630-R-036	M30x1.5	18	20	80	10	12	110	195	142	25	157	43	13	60	86	3D
		12		53	left	PF 31 GX	191 078/150		630-L-036							110	195	142		157					3D
		25		52.3	right	PF 31 DX C25	192 127/050		630-R-036-25							80	234	168		196
		25		77.7	left	PF 31 GX C25	192 127/150		630-L-036-25							80	234	168		196
24	42	12	3	74	right	PF 41 DX	191 064/050	M30x1.5	630-R-042	M36x1.5	20	22	95	12	16	120	218	161	25	176	50	15	70	96	3D
24	42	12	3	88	left	PF 41 GX	191 064/150	M30x1.5	630-L-042	M36x1.5	20	22	95	12	16	95	218	161	25	176	50	15	70	96	3D

Double-acting swing clamp – 250 bar – Flanged base PF

Characteristics

Options 1:10 taper

Options 15° taper

Nota

Product accessories

Fastening accessories: EMB

Short clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BC

Short clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BCK

Medium clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BM

Medium clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BMK

Long clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BL

Long clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BLK

Lock washer for clamp type P11, P21

Nut for clamp type P31 and P41 with 15° taper
