Universal double-acting swing clamp – 500 bar – Threaded body supplied through taps in the base UCT

Double-acting - with rotation travel
Force at 500 bar: 6.5 to 42 kN

Threaded body supplied through taps on the base

Universal double-acting swing clamp – 500 bar – Threaded body supplied through taps in the base UCT : Swing clamps with helical rotation - Quiri

Characteristics
Nota

Characteristics

• treated burnished steel body
• right or left helical rotation, 90°±2°
• total travel = rotation travel + clamping travel
• metal scraper as standard
• max. pressure : 500 bar
• clamping arm: see BCK, BMK, BLK

Nota

Clamps are supplied with plugs, lock nut and lock washer.
(dimensions and tightening torque : EK).

Print this sheet

Universal double-acting swing clamp – 500 bar – Threaded body supplied through taps in the base UCT : Swing clamps with helical rotation - Quiri - 2

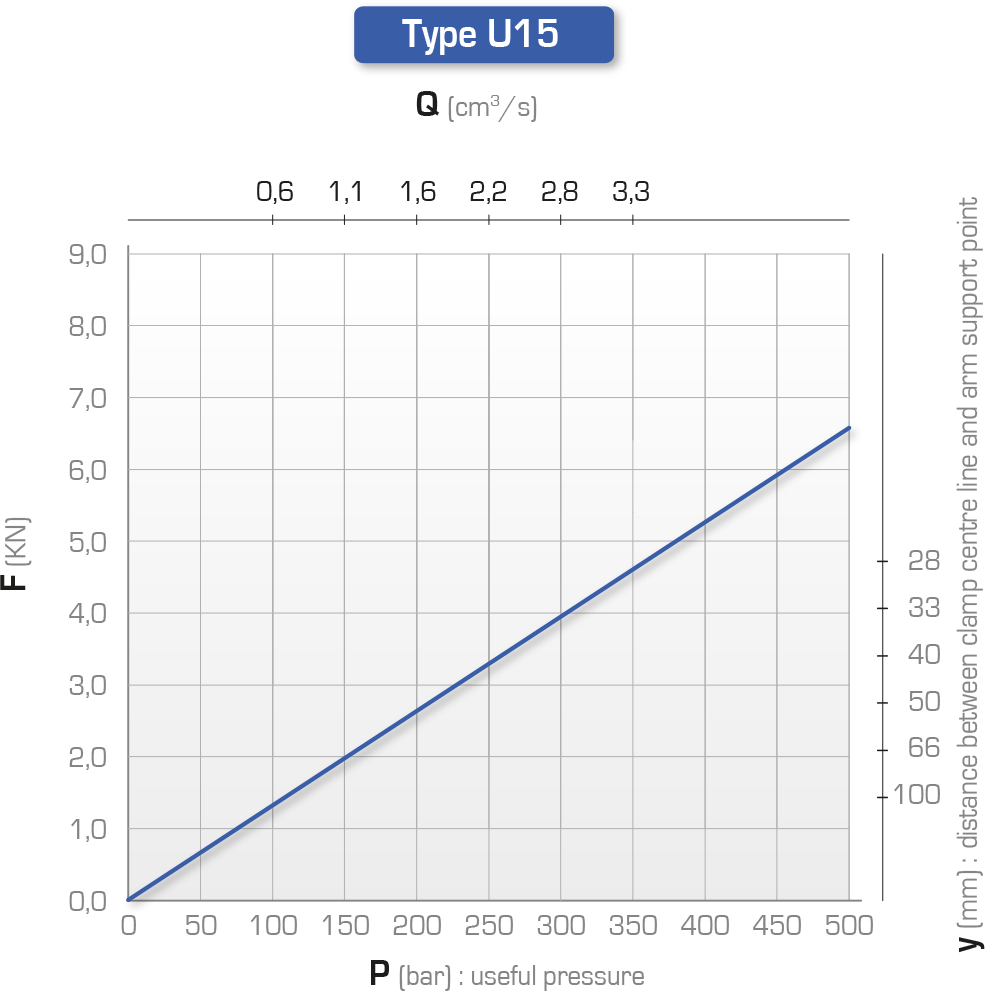

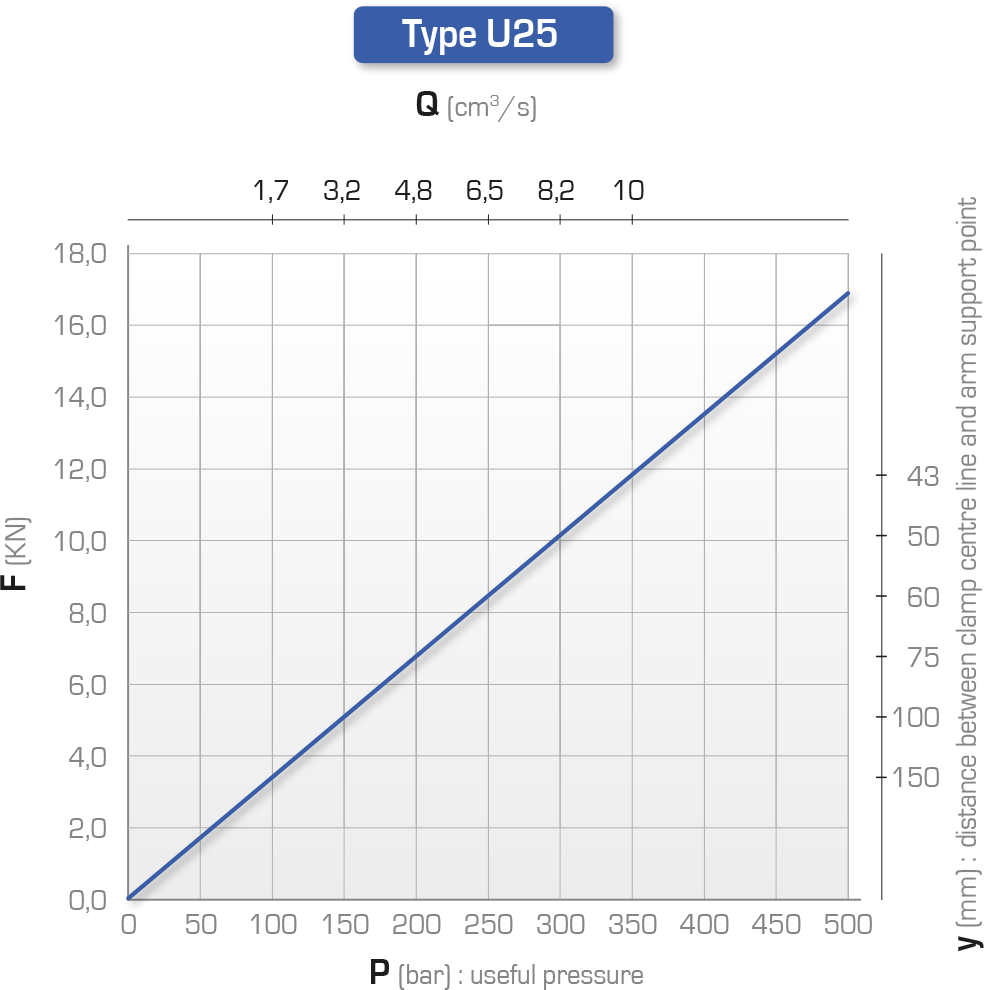

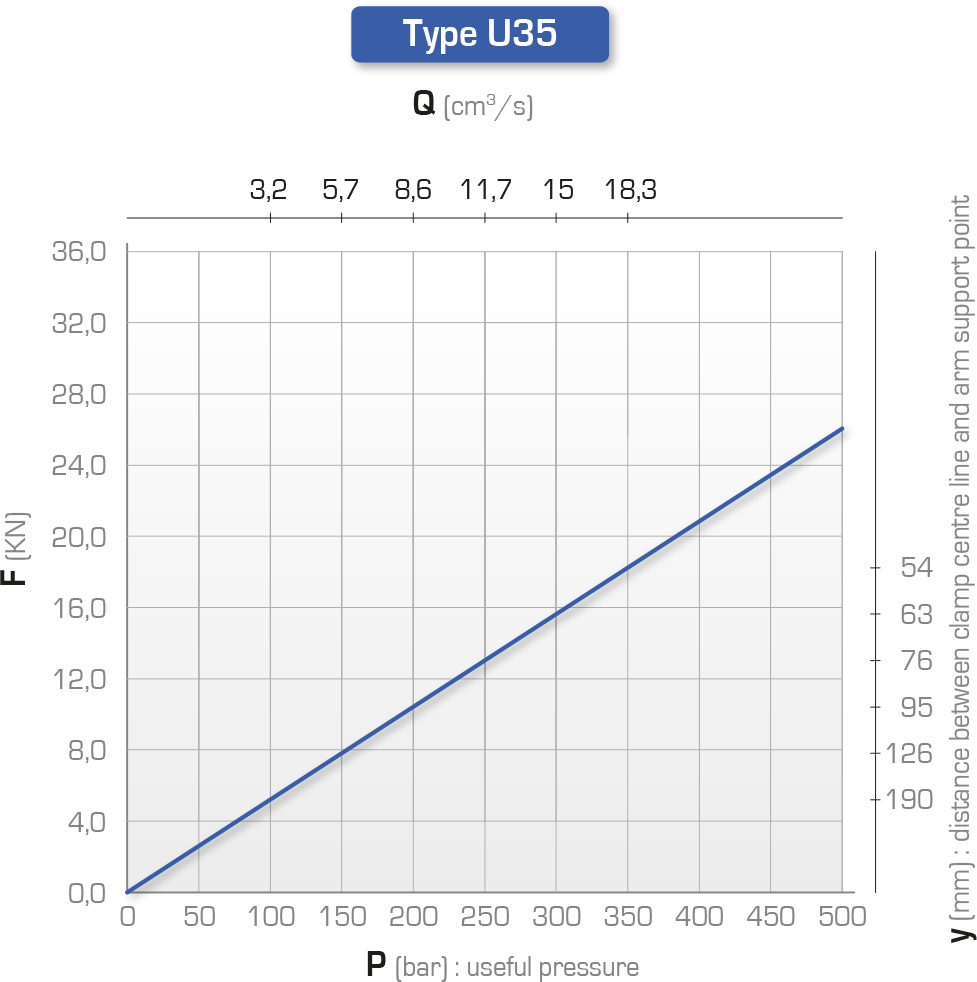

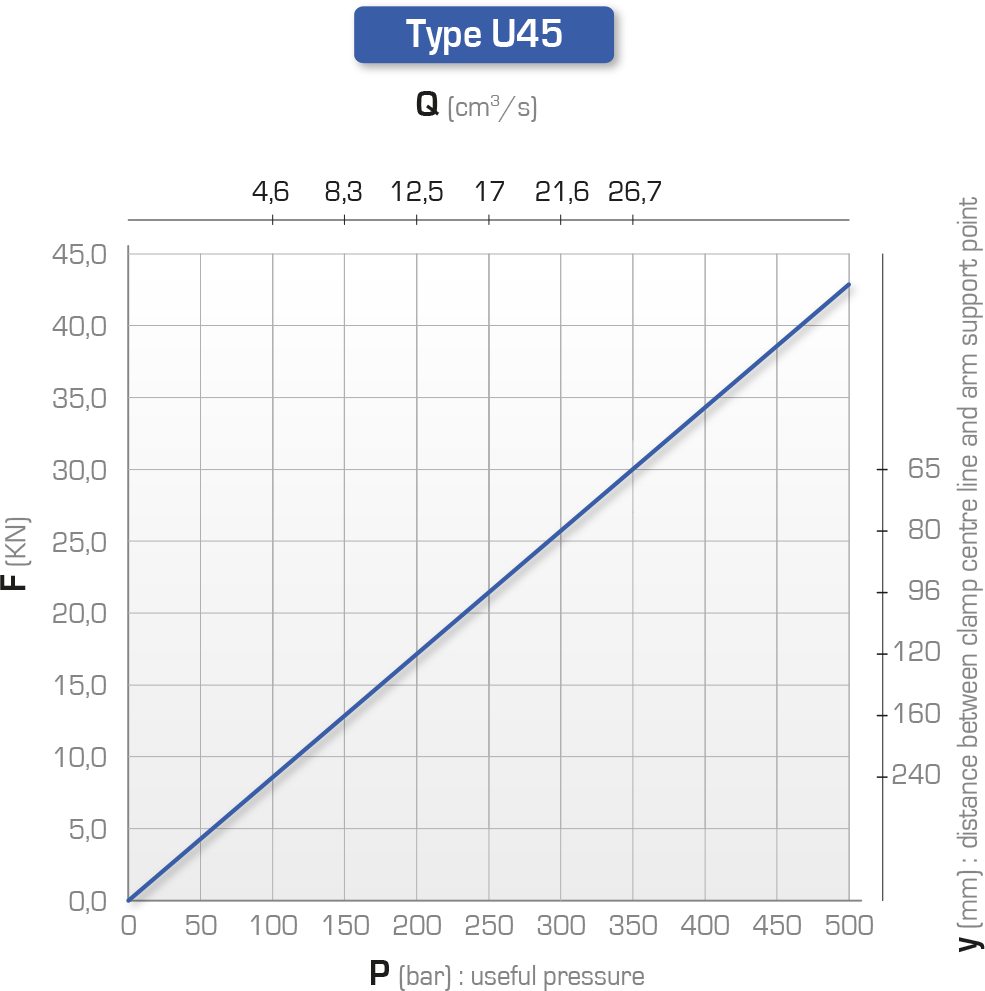

Definition of forces depending on clamping arm: see below
Important recommendations: consult the guide

Force with 500 bar	Force with 350 bar	clamping travel	rotation travel	total travel	Section A B	Swept volume A B	Direction of rotation	Indexation	Type	Reference

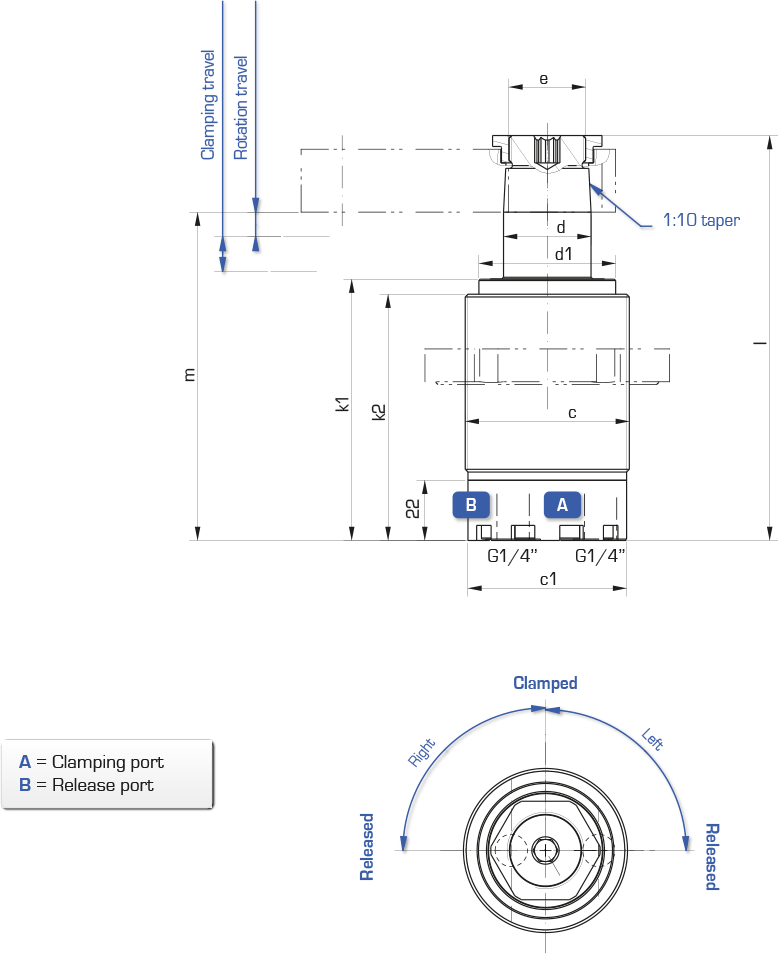

Force with 500 bar	Force with 350 bar	clamping travel	rotation travel	total travel	Section A B	Swept volume A B	Direction of rotation	Indexation	Type	Reference	øc	øc1	ød	ød1	e	k1	k2	l	m	r1	r2
kN	kN	mm	mm	mm	cm²	cm³						mm	mm	mm		mm	mm	mm	mm	mm	mm
6.5	4.6	11	8	19	1.76 4.9	3.34 9.31	right	WITHOUT	UCT 15	191 234/000	M45x1.5	43	20	38	M18x1.5	84.5	79	127	106	12	12
							right	WITH		191 234/050
							left	WITHOUT		191 234/100
							left	WITH		191 234/150
17	11.8	13	9	22	4.52 12.56	9.94 27.63	right	WITHOUT	UCT 25	191 235/000	M60x1.5	58	32	50	M28x1.5	95.5	90	148	120	12.5	19.5
							right	WITH		191 235/050
							left	WITHOUT		191 235/100
							left	WITH		191 235/150
26	18	15	11	26	7.06 19.63	18.35 51.03	right	WITHOUT	UCT 35	192 208/000	M80x2	77	40	55	M35x1.5	108	102	172	138	19	26.5
							right	WITH		192 208/050
							left	WITHOUT		192 208/100
							left	WITH		192 208/150
42	30	15	12	27	11.53 31.17	31.13 84.16	right	WITHOUT	UCT 45	192 209/000	M90x2	87	50	66	M45x1.5	114	108.5	184.5	144.5	25.5	34
							right	WITH		192 209/050
							left	WITHOUT		192 209/100
							left	WITH		192 209/150

Product charts
