Universal double-acting swing clamp – 500 bar – Threaded body supplied through counter-bores in the base UFL

Double-acting - with rotation travel
Force at 500 bar: 6.5 to 42 kN

Threaded body supplied through counter-bores on the base

Universal double-acting swing clamp – 500 bar – Threaded body supplied through counter-bores in the base UFL : Swing clamps with helical rotation - Quiri

Characteristics
Nota

Characteristics

• treated burnished steel body
• right or left helical rotation, 90°±2°
• total travel = rotation travel + clamping travel
• metal scraper as standard
• max. pressure : 500 bar
• clamping arm: see BCK, BMK, BLK

Nota

Supplied with O-rings.
(Dimensions and tightening torque on see EK).
O-rings: UFL 15, 25, 35 and 45 8 x 1.5 – 90 Shore

Print this sheet

Definition of forces depending on clamping arm: see below
Important recommendations: consult the guide

Force with 500 bar	Force with 350 bar	clamping travel	rotation travel	total travel	Section A B	Swept volume A B	Direction of rotation	Indexation	Type	Reference

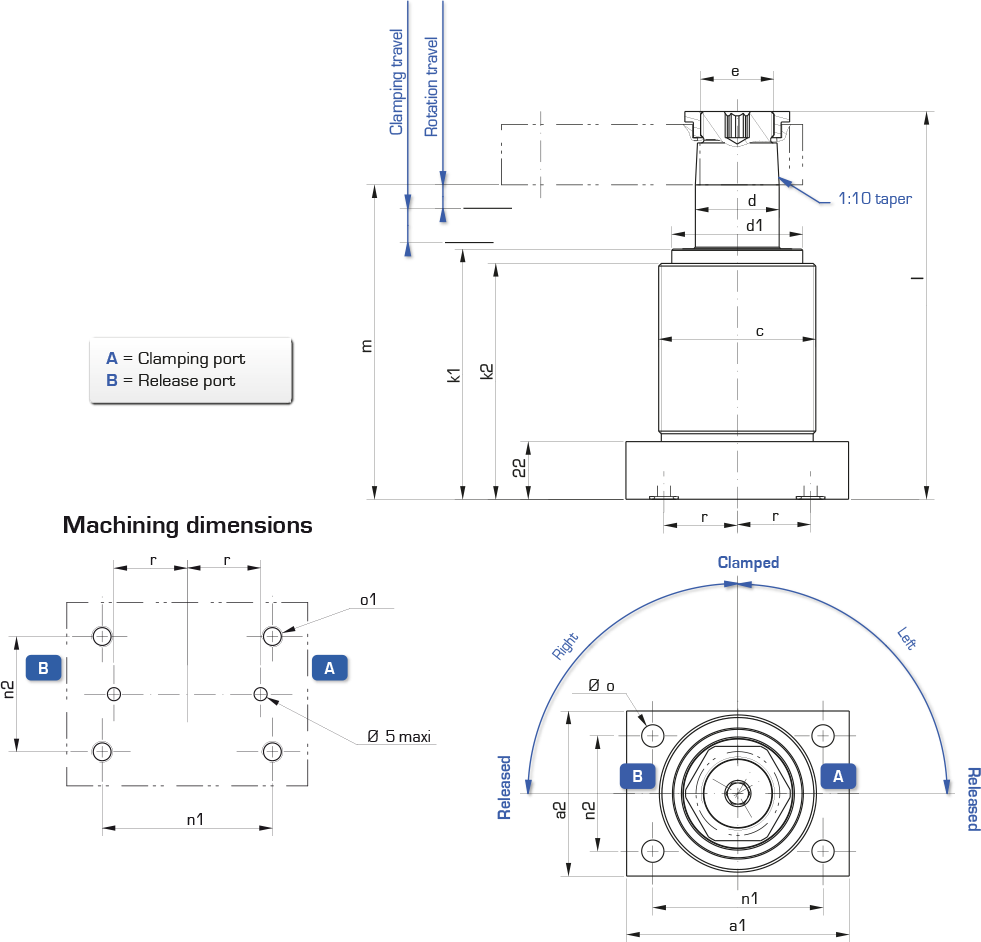

Force with 500 bar	Force with 350 bar	clamping travel	rotation travel	total travel	Section A B	Swept volume A B	Direction of rotation	Indexation	Type	Reference	a1	a2	c	ød	ød1	e	k1	k2	l	m	n1	n2	øo	øo1	r
kN	kN	mm	mm	mm	cm²	cm³					mm	mm		mm	mm		mm	mm	mm	mm	mm	mm	mm		mm
6.5	4.6	11	8	19	1.76 4.9	3.34 9.31	right	WITHOUT	UFL 15	191 232/000	65	45	M45x1.5	20	38	M18x1.5	84.5	79	127	106	50	30	6.5	M6	15
							right	WITH		191 232/050
							left	WITHOUT		191 232/100
							left	WITH		191 232/150
17	11.8	13	9	22	4.52 12.56	9.94 27.63	right	WITHOUT	UFL 25	191 233/000	85	63	M60x1.5	32	50	M28x1.5	95.5	90	148	120	65	44	8.5	M8	28
							right	WITH		191 233/050
							left	WITHOUT		191 233/100
							left	WITH		191 233/150
26	18	15	11	26	7.06 19.63	18.35 51.03	right	WITHOUT	UFL 35	192 206/000	100	80	M80x2	40	55	M35x1.5	108	102	172	138	80	60	13.5	M12	31
							right	WITH		192 206/050
							left	WITHOUT		192 206/100
							left	WITH		192 206/150
42	30	15	11	26	11.53 31.17	31.13 84.16	right	WITHOUT	UFL 45	192 207/000	115	90	M90x2	50	66	M45x1.5	114	108.5	184	144	90	68	16	M14	37.5
							right	WITH		192 207/050
							left	WITHOUT		192 207/100
							left	WITH		192 207/150
