Universal double-acting swing clamp – 500 bar – Screw cartridge version UVCF

Double-acting - with rotation travel
Force at 500 bar: 4.5 kN

Swing clamp with screw cartridge

Universal double-acting swing clamp – 500 bar – Screw cartridge version UVCF : Swing clamps with helical rotation - Quiri

Characteristics

• treated burnished steel body
• right or left helical rotation, 90°±2°
• total travel = rotation travel + clamping travel
• metal scraper as standard
• max. pressure : 500 bar
• clamping arm: see BCK, BMK, BLK

Options

• clamping arm: see accessories section
• 60°, 45° or 0° angle of rotation on request
• special models on request
• Rod with indexing

Nota

Clamps are supplied with seals and lock nut
(dimensions and tightening torque : EK).

Print this sheet

Universal double-acting swing clamp – 500 bar – Screw cartridge version UVCF : Swing clamps with helical rotation - Quiri - 2

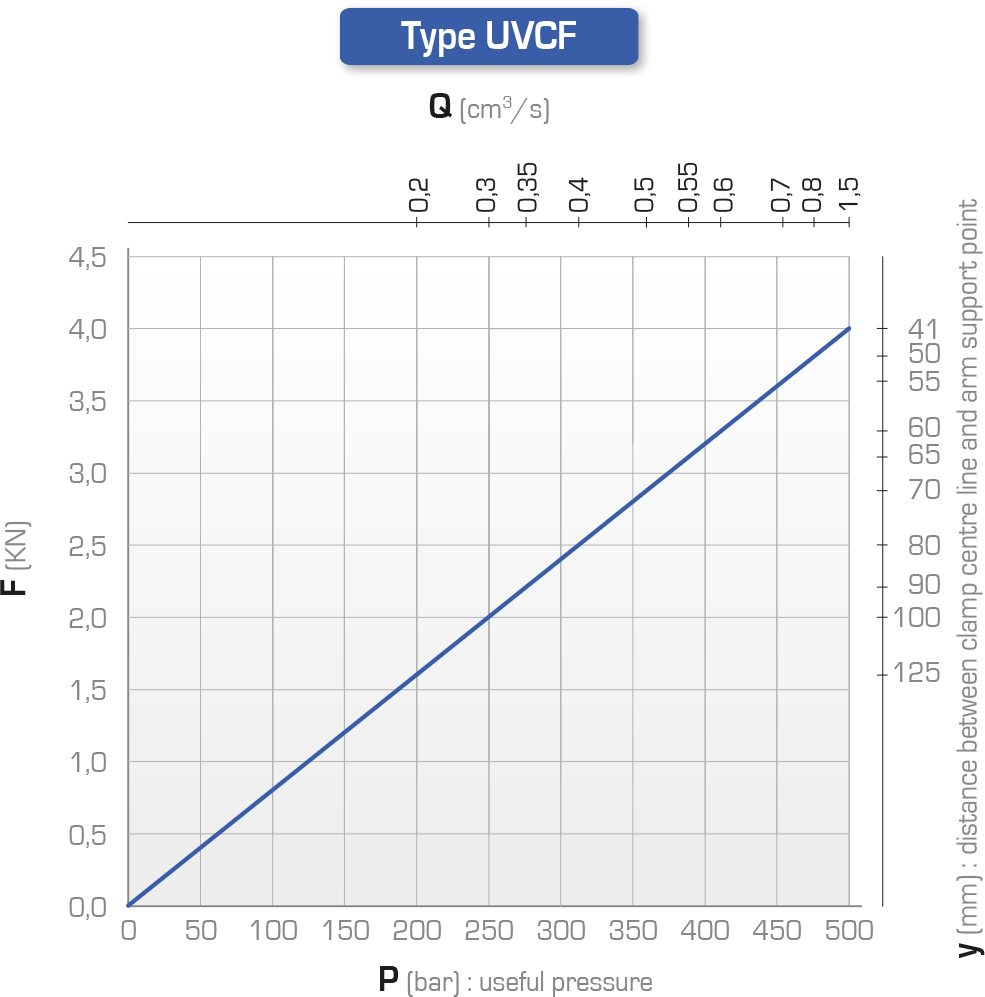

Definition of forces depending on clamping arm: see below
Important recommendations: consult the guide

Force at 500 bar	Tightening torque	Clamping travel	Rotation travel	Total travel	Max flow rate	Section A B	Displaced volume A B	Direction	Type	Reference
Force at 500 bar	Tightening torque	Clamping travel	Rotation travel	Total travel	Max flow rate	Section A B	Displaced volume A B	Direction	Type	Reference	a	b	øc	d	e	L
kN	Nm	mm	mm	mm	l/min	cm²	cm³				mm	mm	mm	mm	mm	mm
4.5	60	7	7	14	0.6	1.01 4.15	1.41 5.81	right	UVCF 15 C7	191 243/000	12	27	30	53	68	112
4.5	60	7	7	14	0.6	1.01 4.15	1.41 5.81	left	UVCF 15 C7	191 243/100	12	27	30	53	68	112
4.5	60	15	7	22	0.6	1.01 4.15	2.22 9.13	right	UVCF 15 C15	191 244/000	20	35	38	61	76	128
4.5	60	15	7	22	0.6	1.01 4.15	2.22 9.13	left	UVCF 15 C15	191 264/100	20	35	38	61	76	128
