Universal double-acting swing clamp – 350 bar – Flanged cartridge version UBC

Double-acting - with rotation travel
Force at 350 bar: 6 to 22 kN

Cartridge with upper flange
Fastening with screws

Universal double-acting swing clamp – 350 bar – Flanged cartridge version UBC : Swing clamps with helical rotation - Quiri

Characteristics

• treated burnished steel body
• right or left helical rotation, 90°±2°
• total travel = rotation travel + clamping travel
• metal scraper as standard
• max. pressure : 500 bar
• clamping arm: see BCK, BMK, BLK

Options

• clamping arm: see accessories section
• 60°, 45° or 0° angle of rotation on request
• special models on request
• Rod with indexing

Nota

Clamps are supplied with O-rings, lock nut and lock washer
(dimensions and tightening torque : EK).

Print this sheet

Universal double-acting swing clamp – 350 bar – Flanged cartridge version UBC : Swing clamps with helical rotation - Quiri - 2

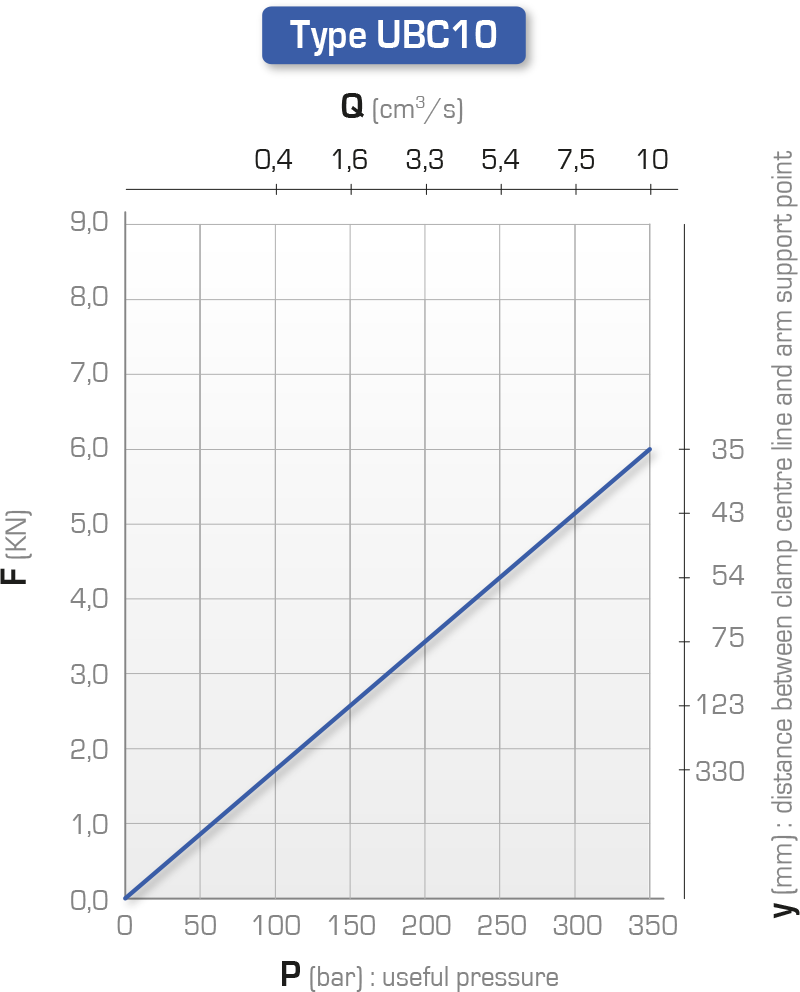

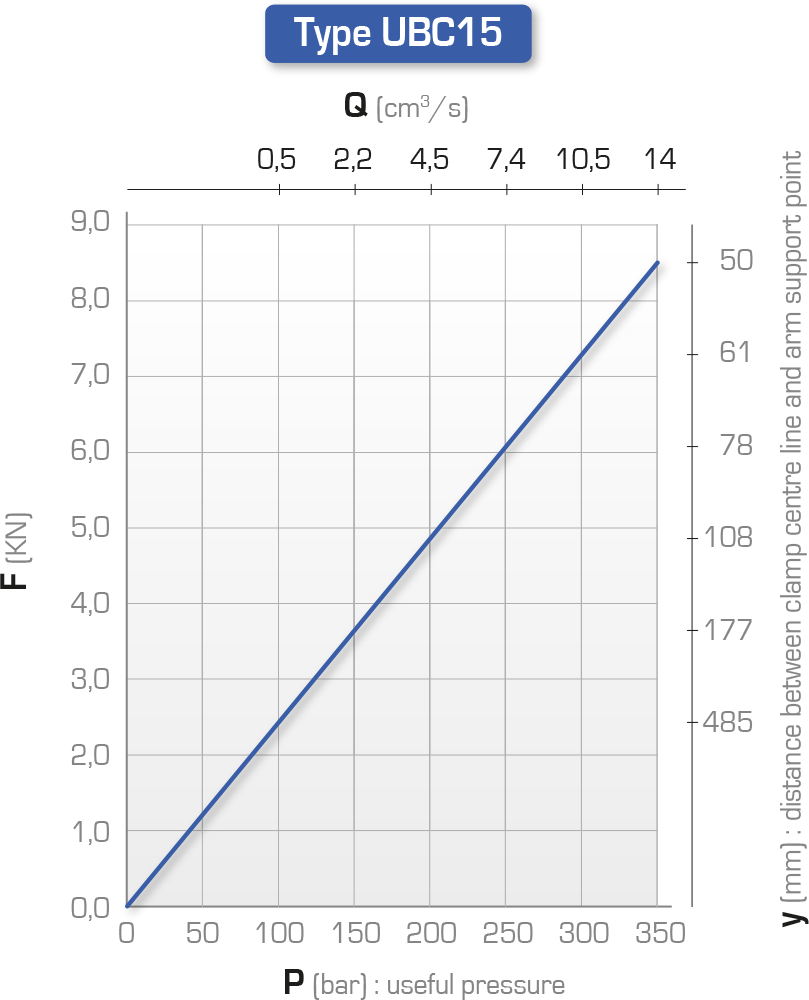

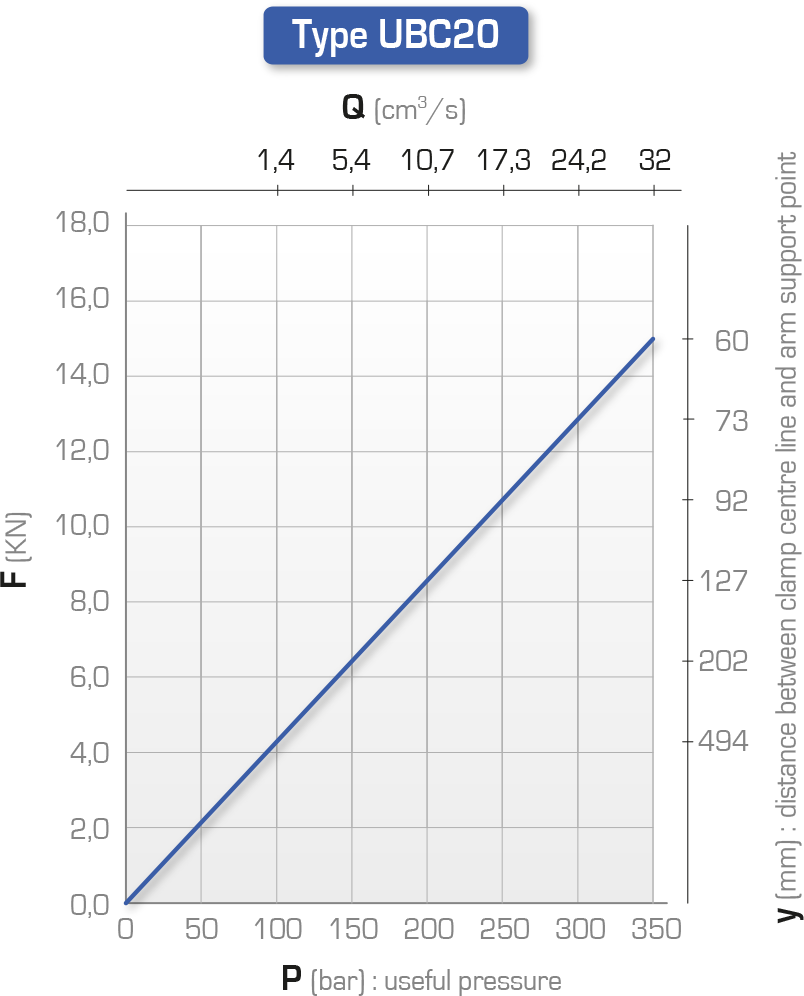

Definition of forces depending on clamping arm: see below
Important recommendations: consult the guide

Force with 500 bar	Force with 350 bar	clamping travel	rotation travel	total travel	Section A B	Swept volume A B	Direction of rotation	Indexation	Type	Reference
Force with 500 bar	Force with 350 bar	clamping travel	rotation travel	total travel	Section A B	Swept volume A B	Direction of rotation	Indexation	Type	Reference	a	b	øc	ød	e	f	g	øh	øi	L	u	v	øw	x1	x2 0/+0.5	y1	y2
Nm	Nm	mm	mm	mm	cm²	cm³					mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
6	60	16	7	23	2.14 4.15	4.9 9.6	right	WITHOUT	UBC 10	191 262/000	78.4	56.4	28	16	25	20	M14 x 1.5	35	36	150.9	33	43	6.6	16	73	23	45
							right	WITH		191 262/050
							left	WITHOUT		191 262/100
							left	WITH		191 262/150
8.5	60	14	10	24	3.02 6.16	7.2 14.8	right	WITHOUT	UBC 15	191 263/000	84.9	57.9	38	20	25	20	M18 x 1.5	42	44	162.4	40	54	8.5	16	78	27	50
							right	WITH		191 263/050
							left	WITHOUT		191 263/100
							left	WITH		191 263/150
15	60	19	11	30	5.27 10.18	15.8 30.5	right	WITHOUT	UBC 20	191 264/000	100.9	68.9	45	25	29	24.4	M20 x 1.5	52	55	189.4	50	67	10.5	20	89	25	53
							right	WITH		191 264/050
							left	WITHOUT		191 264/100
							left	WITH		191 264/150
22	60	25	11	36	7.86 15.9	28.3 57.2	right	WITHOUT	UBC 25	192 237/000	115.8	78.3	48	32	34	28.4	M28 x 1.5	63	65	216.3	57	77	13	25	101	32	53
							right	WITH		192 237/050
							left	WITHOUT		192 237/100
							left	WITH		192 237/150
