Nut for clamp type P31 and P41 with 15° taper

Print this sheet

The arm lock nut and lock washer are supplied with the clamps.

Nut for clamp type P31 and P41 with 15° taper : Swing clamps with helical rotation - Quiri

Type	Reference

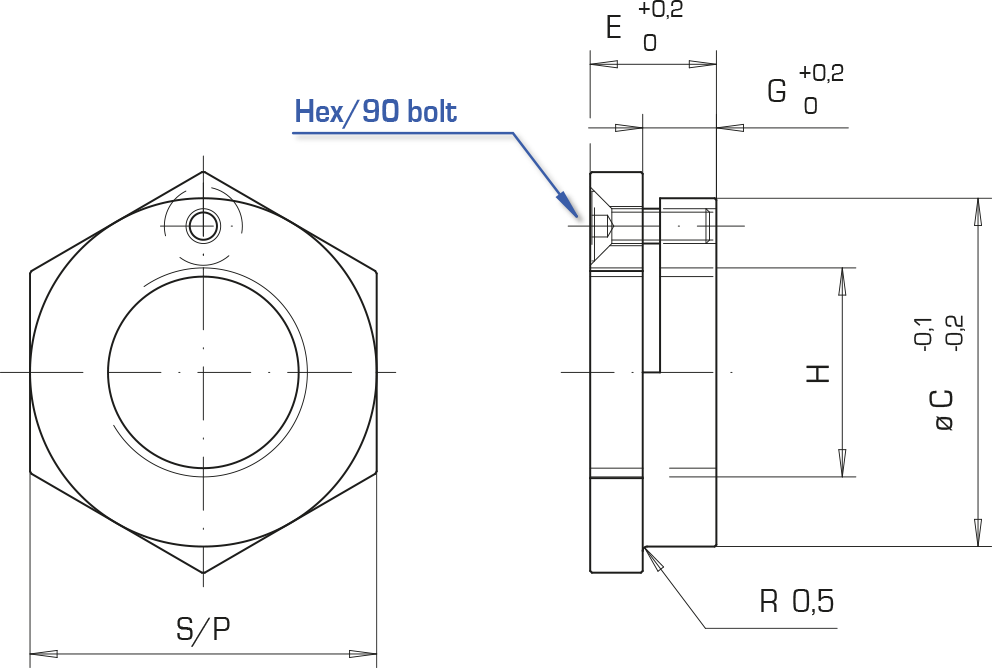

Type	Reference	S/P	øC	E	G	H	N Tightening torque	Screws FHc/90
		mm	mm	mm	mm	mm	Nm
E 31	191 077/009	40	40	12.5	9	M24 x 1.5	125	M4 x 12
E 41	191 093/010	46	50	15	10.5	M30 x 1.5	230	M5 x 12

IMPORTANT REMARK
Make sure the rod is held while fastening the screw.
See figure 1 on the guide
