Nut for clamp type H12 and H21

with 15° taper

Print this sheet

The arm lock nut and lock washer are supplied with the clamps.

Nut for clamp type H12 and H21 : Swing clamps with helical rotation - Quiri

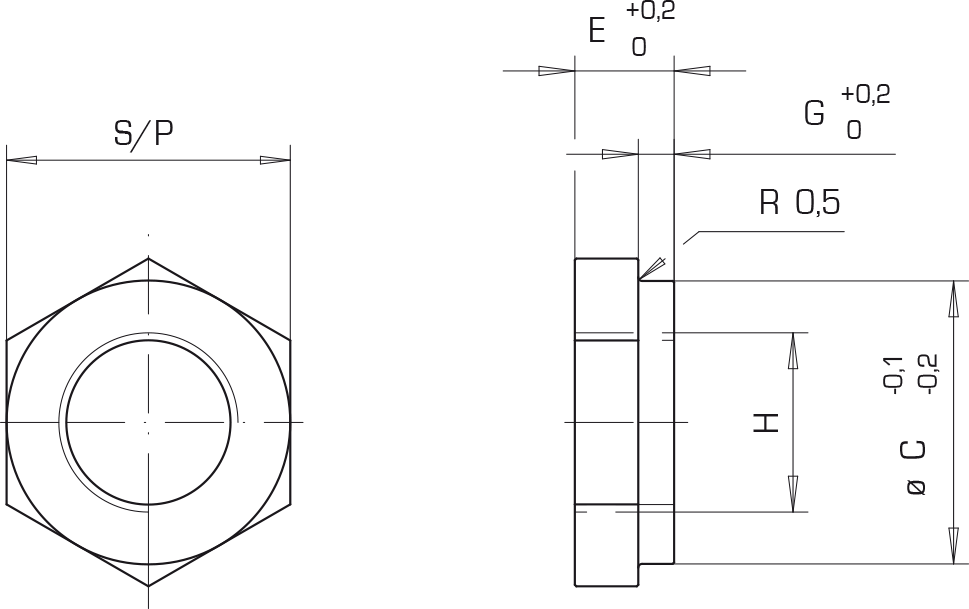

Type Reference
S/P





 øC





 E





 G





 H





 N

Tightening torque

 Screws

FHc/90


mm mm mm mm mm Nm
E 12 191 205/007 24 24 7 3 M14 x 1.5 20 –
E 21/E 26 191 057/007 30 30 7.3 2.8 M16 x 1.5 40 –



IMPORTANT REMARK
Make sure the rod is held while fastening the screw.
See figure 1 on the guide

See similar accessories

Clamping arm for swing clamp: P5 BP5

for swing clamp: H5

Short clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BC

for swing clamp size: 11 - 12 - 21 - 31 - 41
rod end with 15° taper

Short clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BCK

For swing clamp size: 11 - 12 - 21 - 31 - 41
rod end with 1:10 taper

Medium clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BM

For swing clamp size: 11 - 12 - 21 - 31 - 41
rod end with 15° taper
