Rod end with 1:10 taper
• with tap and bevel dimension e
• adjustable over 360°
• burnished surface
Special arms on request
Maximum force (and thus maximum pressure) decreases proportionally with clamping arm extension. Maximum flow rate also decreases with the inertia of the clamping arm. For standard arms, please note the values stated in the table. (see ULT charts).
The rod must absolutely be held while clamping;
see figure 1 on the guide

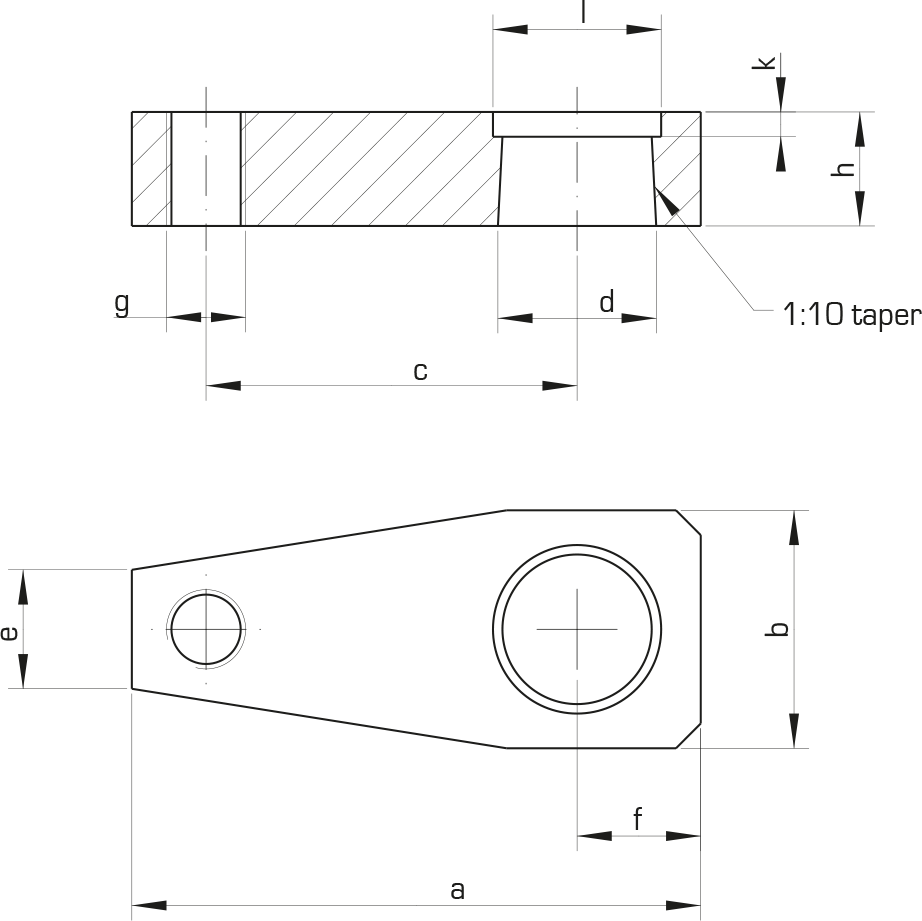

Tap | Bevel | Type | Reference | ||||||||||
a
|
b
|
c
|
ød
0/- 0.05
|
e
|
f
|
g
|
h
|
k
|
øl
|
||||
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
WITH | WITH | BMK 10 | 811 362/000 | 58 | 28 | 35 | 16 | 14 | 16 | M8 | 17 | 2.5 | 20 |
WITH | WITH | BMK 15 | 811 322/000 | 75 | 32 | 50 | 20 | 18 | 16 | M10 | 16 | 4 | 24 |
WITH | WITH | BMK 20 | 811 361/000 | 93 | 45 | 60 | 25 | 23 | 22 | M12 | 26 | 4 | 31 |
WITH | WITH | BMK 25 | 811 323/000 | 115 | 48 | 75 | 32 | 24 | 25 | M16 | 23 | 5 | 34 |
WITH | WITH | BMK 35 | 811 324/000 | 140 | 60 | 95 | 40 | 30 | 30 | M16 | 28 | 5 | 46 |
WITH | WITH | BMK 45 | 811 325/000 | 178 | 78 | 120 | 50 | 42 | 40 | M20 | 34 | 6 | 56 |
