Long clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BL

For swing clamp size: 11 - 12 - 21 - 31 - 41
rod end with 15° taper

Definition

Available as standard in three versions:
• with bevels
• with bevels and indexing
• with no bevels, with indexing.

Characteristics

• turns over 360°
• treated for corrosion protection
• maximum service pressure: 125 bar

Option

Special arms made on request.

Nota

The clamping force and maximum flow rate reduce as the arm length increases (see tables on the guide and H clamp charts).

Make sure the rod is held while fastening the screw.
see figure 1 on the guide

Print this sheet
Long clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BL : Swing clamps with helical rotation - Quiri - 2

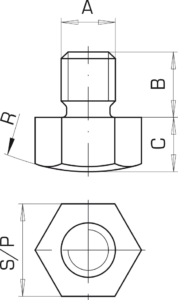

Type Reference
A





 B





 C





 R





 S/P




mm mm mm mm
VB   15.8 811 261/000 M8 10 10 20 13
VB   40.12 811 202/000 M12 12 10 45 19
VB   65.16 811 203/000 M16 20 10 60 24
VB 100.20 811 204/000 M20 25 10 60 30



Long clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BL : Swing clamps with helical rotation - Quiri - 3
Tap Bevel Indexing Type Reference
a





 b





 c





 ød





 e





 f





 g





 h





 k





 l





 øn





 øo





 p





 ør





 s





 t





 u





 øv





 w




mm mm mm mm mm mm mm mm mm mm mm mm mm ° ° mm mm
WITH WITH WITHOUT BL 11 811 156/000 68 30 45 17.46 21 53 M8 17 1 3 23 12.2 13.5 26 7.5 7.5 – – – 3D
WITH WITH WITH B5 11 X 811 156/050 68 30 45 17.46 21 53 M8 17 1 3 23 12.5 13.5 26 7.5 7.5 6.3 7.8 r1.5 3D
WITHOUT WITHOUT WITH BL 11 X N 811 156/150 68 30 – 17.46 – 53 – 17 1 3 23 12.5 – 26 – – 6.3 7.8 r1.5 3D
WITH WITH WITHOUT BL 12 811 311/000 91 34 64 19.46 22 74 M8 19 1 5 25 14.2 17.5 28 12.5 6 – – –
WITH WITH WITH B5 12 X 811 311/050 91 34 64 19.46 22 74 M8 19 1 5 25 14.2 17.5 28 12.5 6 7.3 8.8 r1.5
WITHOUT WITHOUT WITH BL 12 X N 811 311/150 91 34 – 19.46 – 74 – 19 1 5 25 14.2 – 28 – – 7.3 8.8 r1.5
WITH WITH WITHOUT BL 21 811 157/000 110 40 75 24.46 24 90 M12 23 1 4 31 16.2 17 34 10 10 – – – 3D
WITH WITH WITH B5 21 X 811 157/050 110 40 75 24.46 24 90 M12 23 1 4 31 16.2 17 34 10 10 10.4 10.25 r1.5 3D
WITHOUT WITHOUT WITH BL 21 X N 811 157/150 110 40 – 24.46 – 90 – 23 1 4 31 16.2 – 34 – – 10.4 10.25 r1.5 3D
WITH WITH WITHOUT BL 31 811 165/000 134 55 90 35.46 40 106.5 M16 30 1 5 41 24.5 22 45 7 10 – – – 3D
WITH WITH WITH B5 31 X 811 165/050 134 55 90 35.46 40 106.5 M16 30 1 5 41 24.5 22 45 7 10 17 14.5 r2 3D
WITHOUT WITHOUT WITH BL 31 X N 811 165/150 134 55 – 35.46 – 106.5 – 30 1 5 41 24.5 – 45 – – 17 14.5 r2 3D
WITH WITH WITHOUT BL 41 811 158/000 155 70 100 40.93 50 120 M20 33 2 6 51 30.5 27 52 8.5 8.5 – – – 3D
WITH WITH WITH B5 41 X 811 158/050 155 70 100 40.93 50 120 M20 33 2 6 51 30.5 27 52 8.5 8.5 18 17.5 r2 3D
WITHOUT WITHOUT WITH BL 41 X N 811 158/150 155 70 – 40.93 – 120 – 33 2 6 51 30.5 – 52 – – 18 17.5 r2 3D
