Fastening nut of clamping arm EK

Nut for universal swing clamp: U

Print this sheet

The nut is supplied with the clamp

Lock nut for U range type 10, 15, 20, 25, 35 and 45

Fastening nut of clamping arm EK : Swing clamps with helical rotation - Quiri

Important note:
The rod must absolutely be held while clamping;
see figure 1 on the guide

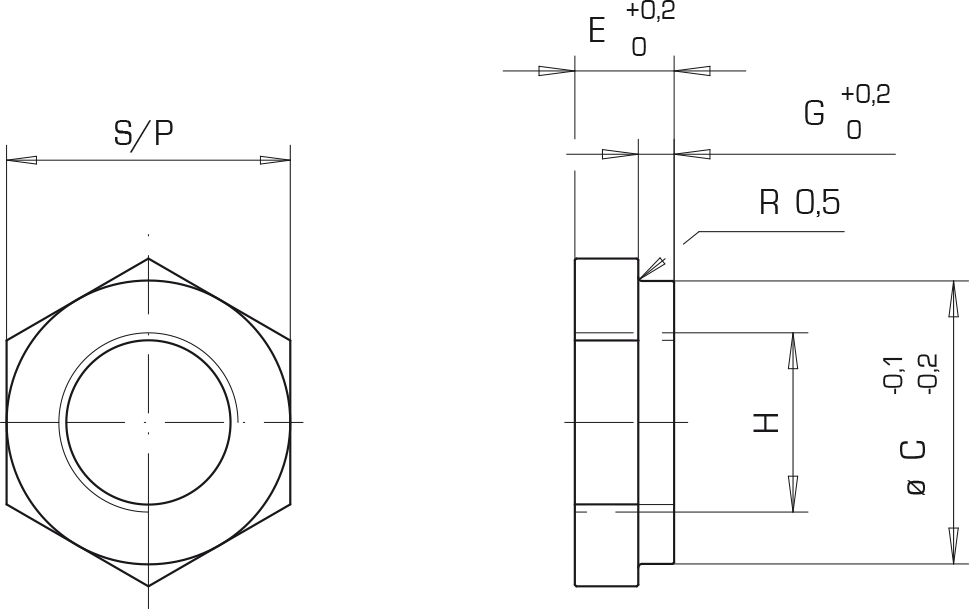

Type Reference
S/P





 H





 C





 E





 G





 N

tightening torque
mm mm mm mm mm Nm
EK 10 191 262/006 24 M14x1.5 19.5 7.5 3 15
EK 15 191 229/005 27 M18x1.5 23.5 9 4.5 30
EK 20 191 264/006 32 M20x1.5 30.5 10 4.5 50
EK 25 191 223/005 36 M28x1.5 33.5 10 6 90
EK 35 192 198/005 50 M35x1.5 45 11 5.5 160
EK 45 192 199/005 64 M45x1.5 55.5 12 6.5 260



See similar accessories

Clamping arm for swing clamp: P5 BP5

for swing clamp: H5

Short clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BC

for swing clamp size: 11 - 12 - 21 - 31 - 41
rod end with 15° taper

Short clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BCK

For swing clamp size: 11 - 12 - 21 - 31 - 41
rod end with 1:10 taper

Medium clamping arm – rod with 15° taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BM

For swing clamp size: 11 - 12 - 21 - 31 - 41
rod end with 15° taper
