Double-acting swing clamp – 70 bar – Supplied through taps or counter-bores under the head HL7

Double-acting - with rotation travel
Force at 70 bar: 2 to 13 kN

Supplied through counter-bores under the head or taps

Double-acting swing clamp – 70 bar – Supplied through taps or counter-bores under the head HL7 : Swing clamps with helical rotation - Quiri

Characteristics

• treated burnished steel body
• right or left helical rotation, 90°±2°
• total travel = rotation travel + clamping travel
• max. pressure: 70 bar

Options

• clamping arm, see Long clamping arm B7
• 60°, 45° or 0° angles on request

Remark

Clamp supplied with plugs and O-rings

Dimensions and tightening torque: see Lock nut: EK
HL7 swing clamps may be supplied either through taps or counter-bores under the head

Print this sheet

Double-acting swing clamp – 70 bar – Supplied through taps or counter-bores under the head HL7 : Swing clamps with helical rotation - Quiri - 2

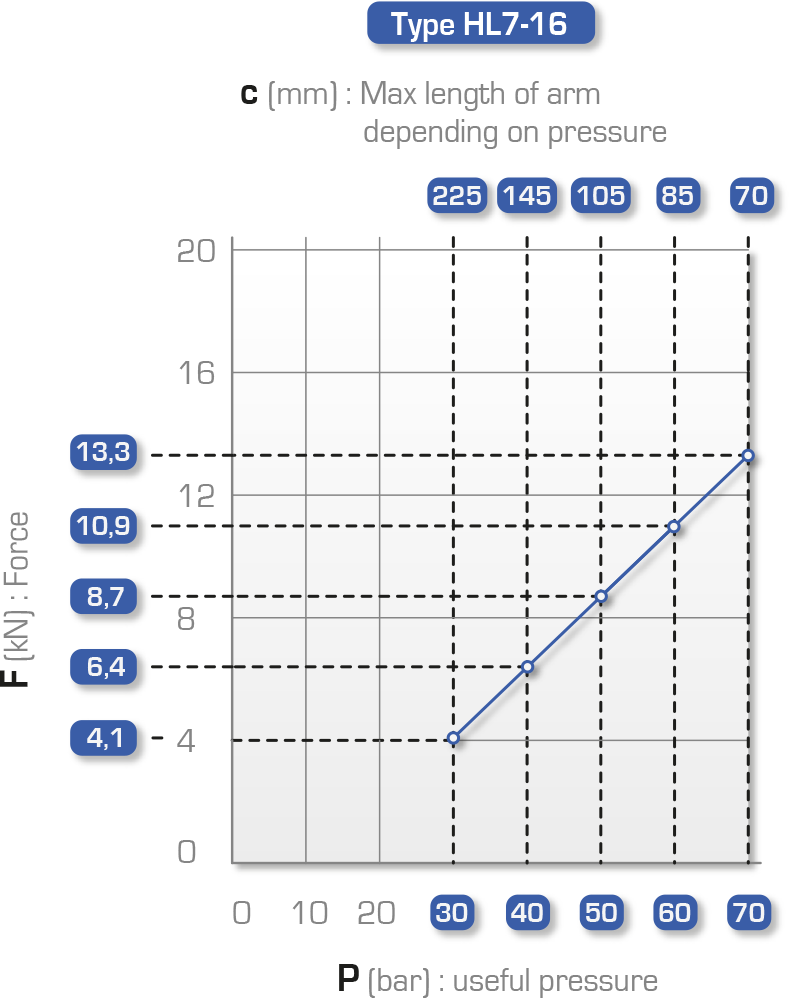

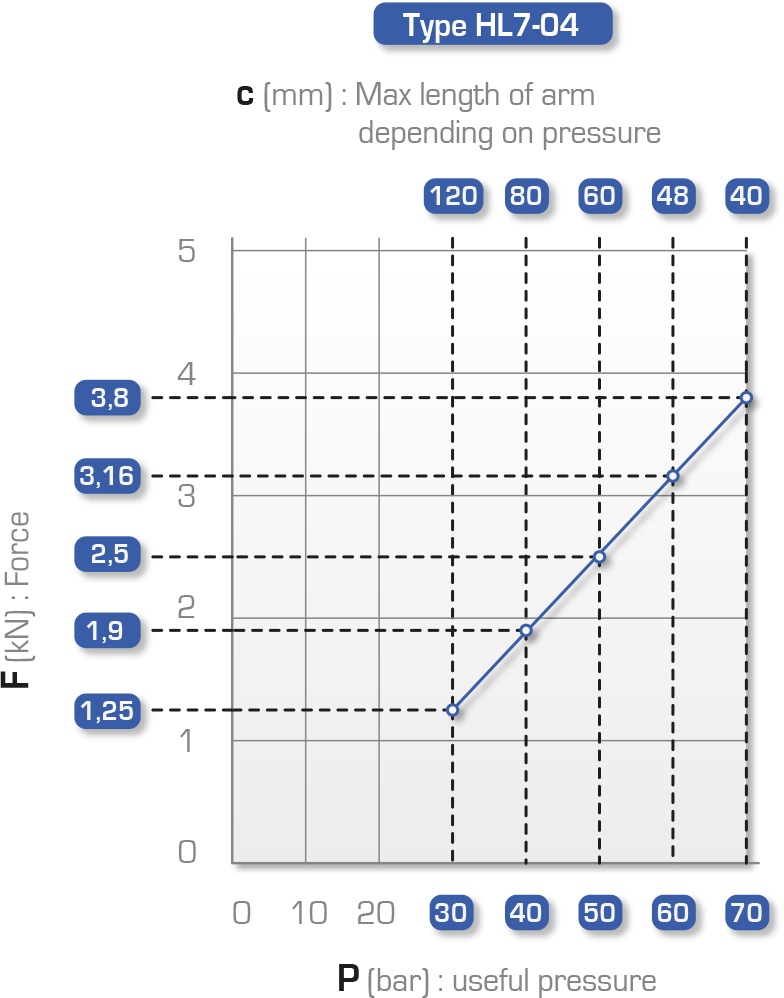

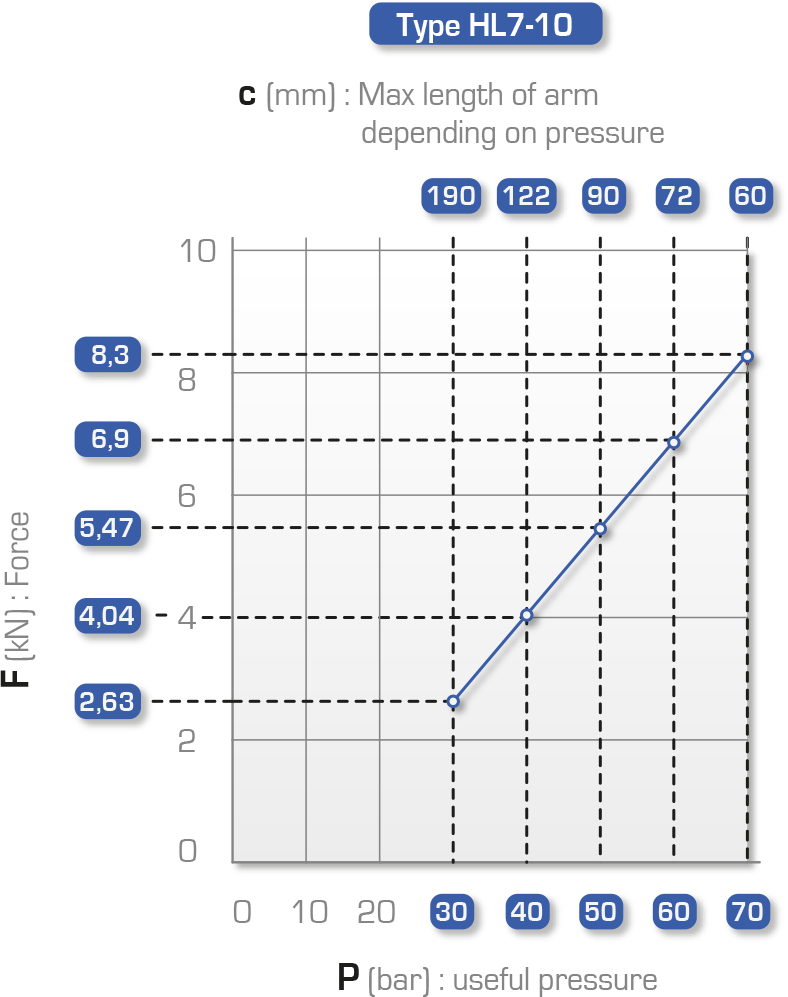

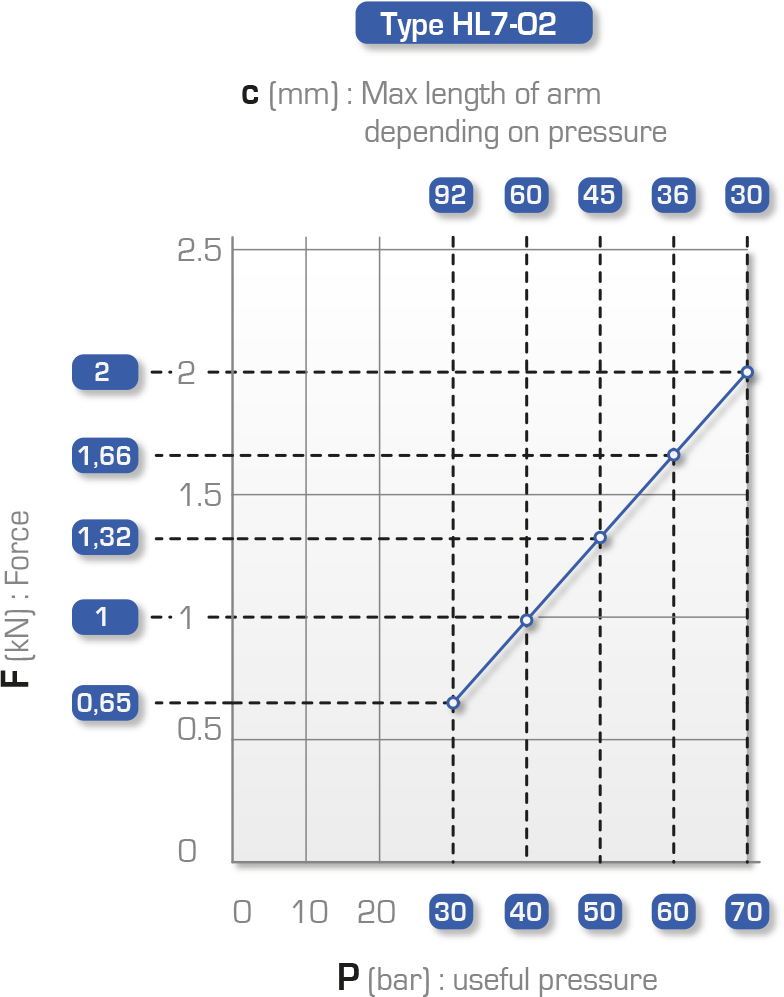

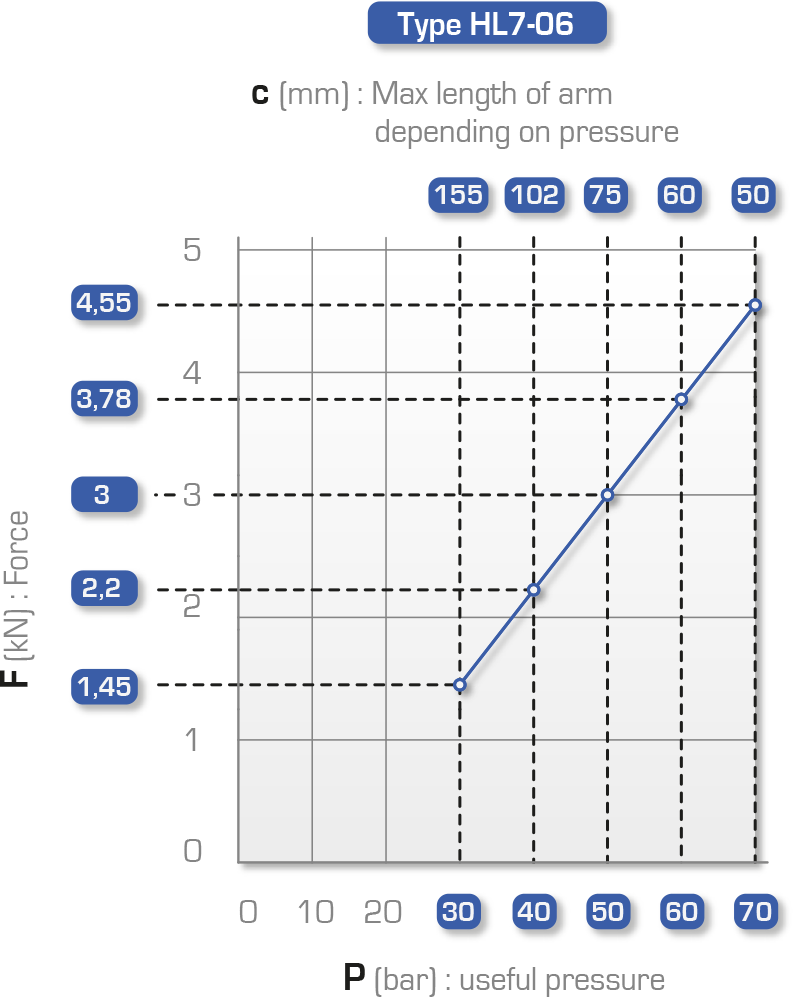

Definition of forces depending on clamping arm: see below
Important recommendations: consult the guide

Force at 70 bar	Clamping travel	Rotation travel	Total travel	Max flow rate	Section A B	Swept A B	Direction	Indexing	Type	Reference
Force at 70 bar	Clamping travel	Rotation travel	Total travel	Max flow rate	Section A B	Swept A B	Direction	Indexing	Type	Reference	a1	a2	a3	b	øc	øc1 0/-0.2	ød	e	k	l	m	n1	n2	n3	øo	øo1	p	q	r1	r2	r3	øw1
kN	mm	mm	mm	l/min	cm²	cm³					mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm
2	8	8	16	0.8	3.37 4.9	5.39 7.84	right	WITHOUT	HL7 02	191 227/000	48	38	19	48.5	35	36	14	M12x1.5	27.5	68.5	46	30.5	30.5	15.25	4.3	M4	20.5	14	22.5	18	16.2	4
							right	WITH		191 227/050
							left	WITHOUT		191 227/100
							left	WITH		191 227/150
3.8	8	13	21	2	6.37 10.17	13.37 21.35	right	WITHOUT	HL7 04	191 228/000	60	50	25	61	47	48	22	M18x1.5	30	88	54	40	40	20	5.5	M5	20	13.5	28	24	22	4
							right	WITH		191 228/050
							left	WITHOUT		191 228/100
							left	WITH		191 228/150
4.5	10	14	24	2.8	7.65 12.56	18.36 30.14	right	WITHOUT	HL7 06	192 210/000	66	57	28.5	66	53	54	25	M20x1.5	31.5	92.5	58.5	46	46	23	6.8	M6	20	14.5	30.5	28	26	4
							right	WITH		192 210/050
							left	WITHOUT		192 210/100
							left	WITH		192 210/150
8.3	10	17	27	5.8	14.16 21.23	38.23 57.32	right	WITHOUT	HL7 10	192 200/000	82	70	35	77	63	64	30	M24x1.5	34.5	101.5	67.5	56	56	28	9	M8	19.5	15.5	36	36	30	5
							right	WITH		192 200/050
							left	WITHOUT		192 200/100
							left	WITH		192 200/150
13.3	10	19	29	10	23 33.18	66.7 96.22	right	WITHOUT	HL7 16	192 201/000	96	86	43	84	78	79	36	M30x1.5	39	119.5	72.5	68	68	34	11	M10	24	15.5	42	45	38	5
							right	WITH		192 201/050
							left	WITHOUT		192 201/100
							left	WITH		192 201/150

Product accessories

Self-Coupler M20x1.5

Screw-in coupling mechanism.
Operating pressure from 5 to 350 bar.
Flow 12l/min at 70 bar. Max flow 20l/min.

Flow limiter – SCV

Compact flow limiter/brake for installation on a cylinder.
Operating pressure between 10 and 110 bars.
