Force at 250 bar: 8 to 16 kN
Supply through counter-bores near base
• total travel = rotation travel + clamping travel
• right of left helical rotation, 90°±2°
• bleeder near clamping (HLF 21 and HLF 31)
• bleeder near release (HLF 31)
• rod indexing
• maximum service pressure: 250 bar
STANDARD WITH NO INDEXING
• different travel ranges on request
• choice of rotation angle in 5° increments (please specify with the order)
• metal scraper (please specify with the order)
• optional indexing (please specify with the order)
STANDARD WITH INDEXING
• different travel ranges on request
• choice of rotation angle in 5° increments (please specify with the order)
• metal scraper (please specify with the order)
• also with no optional indexing (please specify with the order)
Clamps are supplied with O-rings, lock nut and lock washer (dimensions and tightening torque: see Lock washer for clamp type P11, P21 and Nut for clamp type P31 and P41).
O-rings:
HLF21: 5.28 x 1.78 – 90 Shore
HLF31: 7.65 x 1.78 – 90 Shore

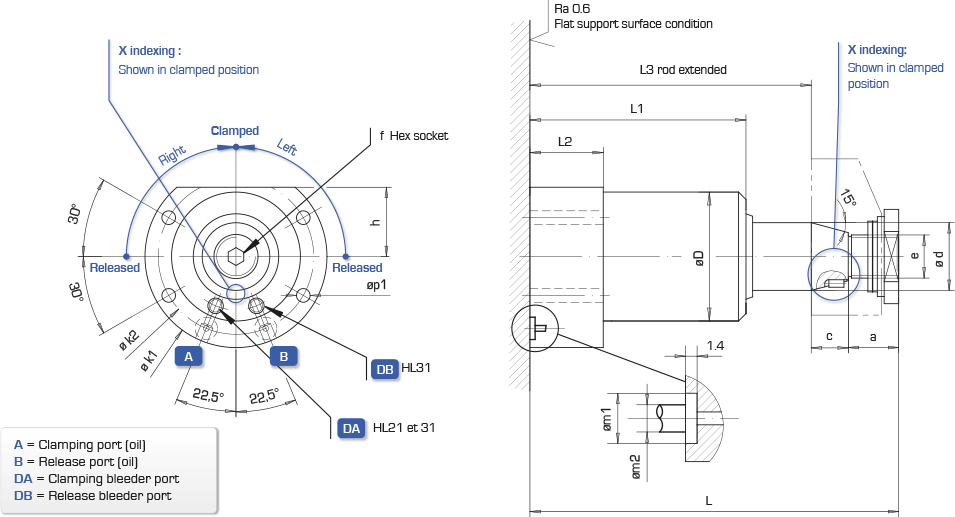

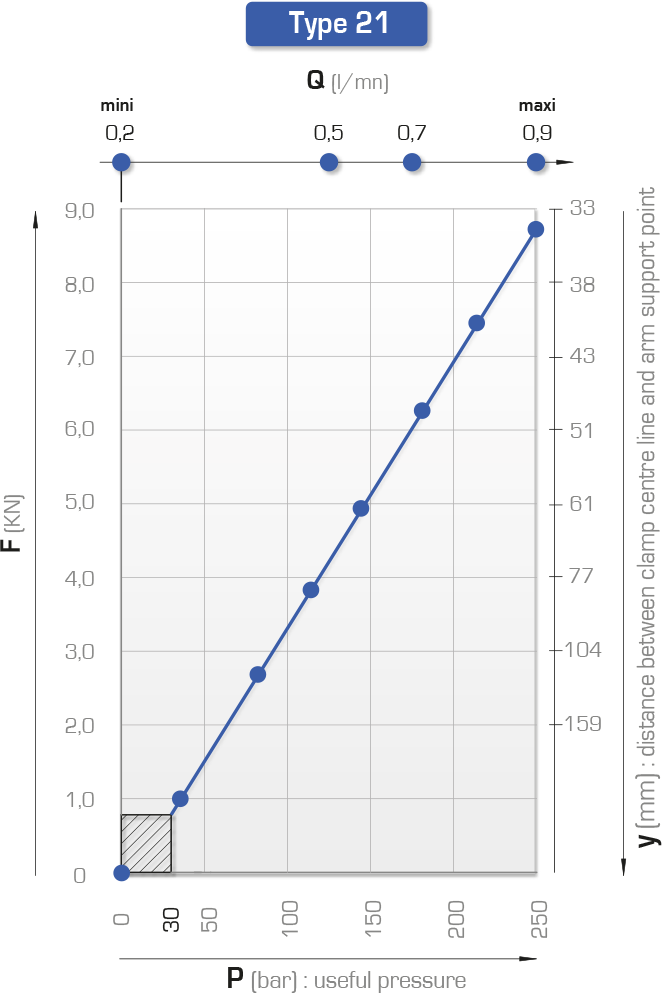

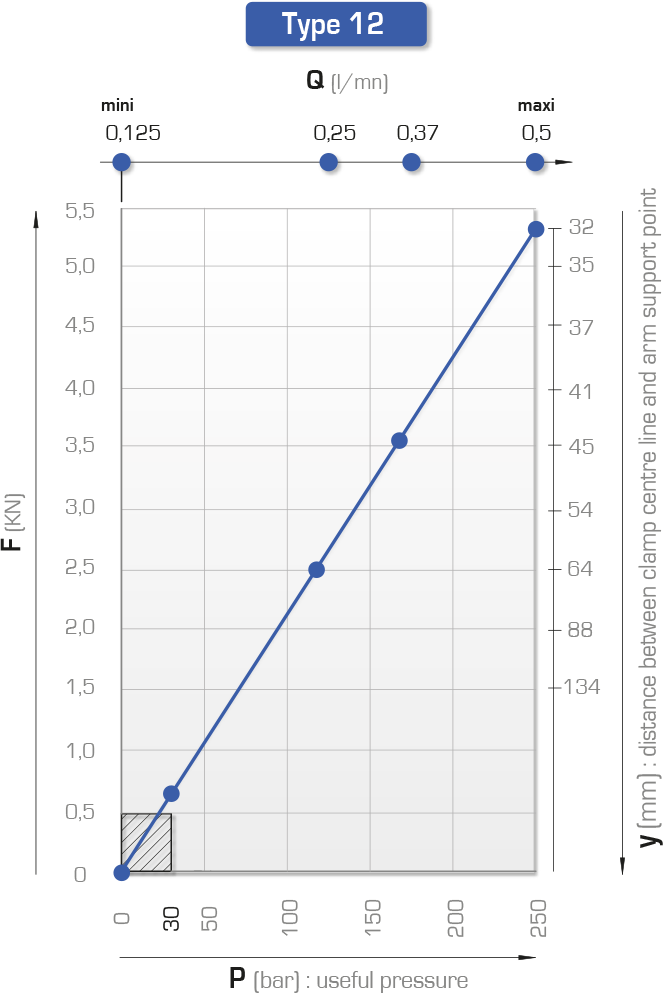

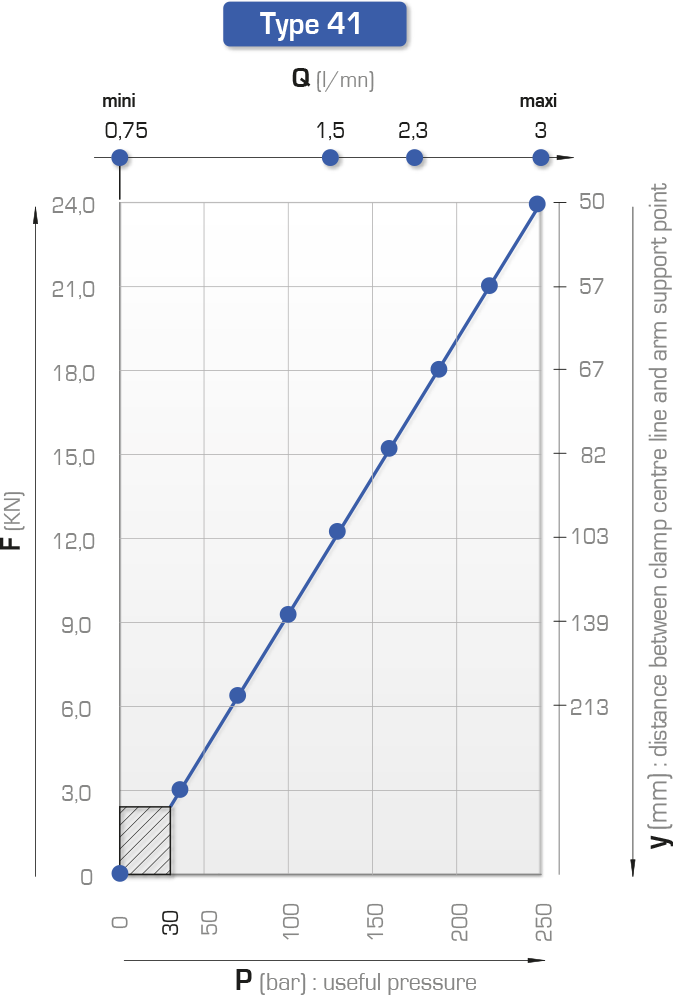

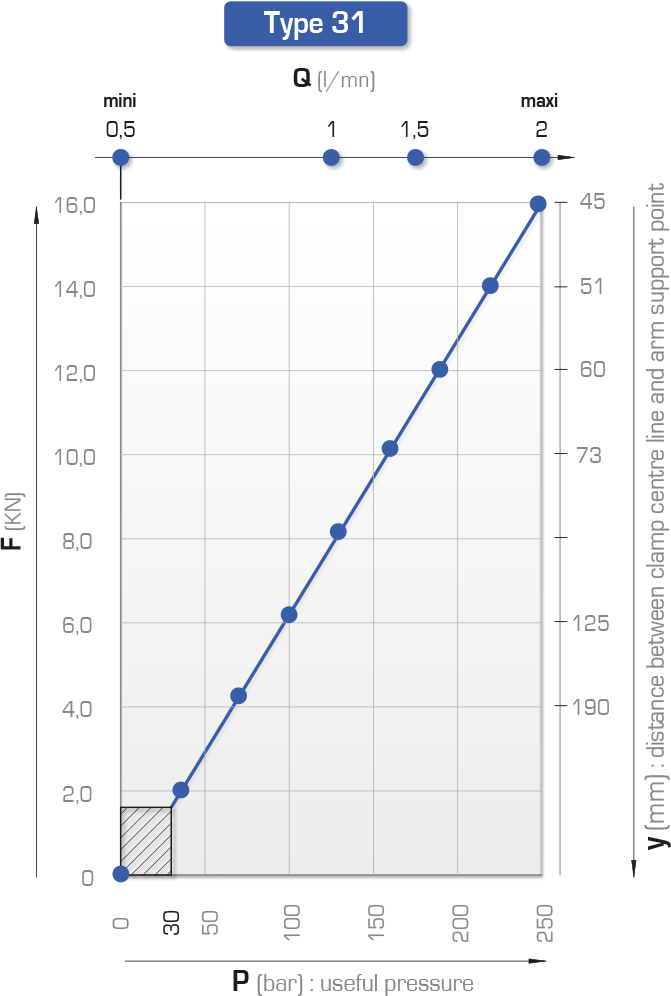

Definition of forces depending on clamping arm: see charts at the bottom of the page
Important recommendations: consult the guide
NOT INDEXED: The pin may be removed using a drift punch
Max force
at 250 bar |
Rod ød | Clamping travel | Total travel
|
Max flow rate
A |
Swept volume
A B |
Direction of rotation | α = 15° (with indexing) | α = 1:10 (without indexing) | |||||||||||||||||
Type | Reference | e1 | Reference | e2
|
a
|
c
|
øD
|
f
Hexagonal |
h
|
øk1
øk2
|
L
|
L1
|
L2
|
L3
|
m1
|
m2
|
p1
|
||||||||
kN | mm | mm | mm | l/min | cm3 | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||||||
8 | 25 | 12 | 24 | 0.9 | 11.06 | right | HLF 21 DX | 191 201/050 | M16x1.5 | M 665-R-025 | M22x1.5 | 16 | 14 | 52 | 6 | 28 | 76 | 147 | 90 | 32.5 | 117 | 8.8 | 4 | 6.5 | 3D |
22.61 | left | HLF 21 GX | 191 201/150 | M 665-L-025 | 63 | 3D | |||||||||||||||||||
8 | 25 | 25 | 37 | 0.9 | 17.42 | right | HLF 21 DX C25 | 191 211/050 | M16x1.5 | M 665-R-025-25 | M22x1.5 | 16 | 14 | 52 | 6 | 28 | 76 | 176 | 106 | 32.5 | 146 | 8.8 | 4 | 6.5 | 3D |
35.59 | left | HLF 21 GX C25 | 191 211/150 | M 665-L-025-25 | 63 | 3D | |||||||||||||||||||
16 | 36 | 15 | 29 | 2 | 26.95 | right | HLF 31 DX | 192 163/050 | M24x1.5 | M 665-R-036 | M30x1.5 | 16 | 20 | 72 | 10 | 38 | 110 | 176.5 | 106.5 | 42 | 138.5 | 11.1 | 5 | 10.5 | 3D |
55.94 | left | HLF 31 GX | 192 163/150 | M 665-L-036 | 90 | 3D | |||||||||||||||||||
16 | 36 | 25 | 39 | 2 | 36.85 | right | HLF 31 DX C25 | 192 182/050 | M24x1.5 | M 665-R-036-25 | M30x1.5 | 18 | 20 | 72 | 10 | 38 | 110 | 201.5 | 121.5 | 42 | 163.5 | 11.1 | 5 | 10.5 | 3D |
76.55 | left | HLF 31 GX C25 | 192 182/150 | M 665-L-036-25 | 90 | 3D |
