Double-acting swing clamp – 250 bar – Supplied through counter-bores under the head HL

Double-acting - with rotation travel
Force at 250 bar: 5 to 24 kN

Supply through counter-bores under the flange ring

Double-acting swing clamp – 250 bar – Supplied through counter-bores under the head HL : Swing clamps with helical rotation - Quiri

Characteristics

• total travel = rotation travel + clamping travel
• right or left helical rotation, 90°±2°
• bleeder near clamping (HL12, HL21, HL 31 & HL 41)
• additional bleeder near release (HL31 & HL 41)
• rod indexing
• maximum service pressure: 250 bar

Options 1:10 taper

STANDARD WITH NO INDEXING

• different travel ranges on request
• choice of rotation angle in 5° increments (please specify with the order)
• metal scraper (please specify with the order)
• optional indexing (please specify with the order)

Options 15° taper

STANDARD WITH INDEXING

• different travel ranges on request
• choice of rotation angle in 5° increments (please specify with the order)
• metal scraper (please specify with the order)
• also with no optional indexing (please specify with the order)

Nota

Clamps are supplied with O-rings, lock nut and lock washer
(dimensions and tightening torque: see Lock washer for clamp type P11, P21 and Nut for clamp type P31 and P41).
O-rings:

5.28 x 1.78 (HL12, HL 21) 90 shore NBR
7.65 x 1.78 (HL 31) 90 Shore NBR

Print this sheet

Double-acting swing clamp – 250 bar – Supplied through counter-bores under the head HL : Swing clamps with helical rotation - Quiri - 2

Definition of forces depending on clamping arm: see charts at the bottom of the page
Important recommendations: consult the guide
NOT INDEXED: The pin may be removed using a drift punch

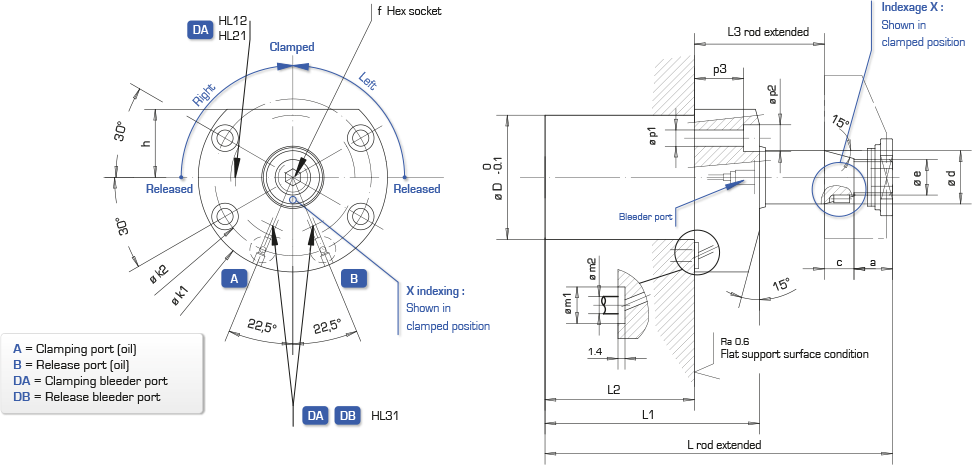

F max at 250 bar	Rod ød	Travel of torque	Travel total	Max flow rate A	Swept volume A B	Direction of rotation	α = 15° (with indexing)			α = 1:10 (without indexing)
F max at 250 bar	Rod ød	Travel of torque	Travel total	Max flow rate A	Swept volume A B	Direction of rotation	Type	Reference	e1	Reference	e2	a	c	øD	f	h	øk1 øk2	L	L1	L2	L3	m1	m2	p1	p2	p3
kN	mm	mm	mm	l/min	cm³							mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
5	20	12	23	0.5	6.9	right	HL 12 DX	191 217/050	M14x1.5	M 625-R-020	M18x1.5	14	10	45	5	23	68	138.5	88.5	66.5	48	8.8	4	6.5	10.5	8	3D
5	20	12	23	0.5	14.1	left	HL 12 GX	191 217/150	M14x1.5	M 625-L-020	M18x1.5	14	10	45	5	23	56	138.5	88.5	66.5	48	8.8	4	6.5	10.5	8	3D
8	25	12	24	0.9	11.06	right	HL 21 DX	191 200/050	M16x1.5	M 625-R-025	M22x1.5	16	14	52	6	28	76	146.5	89.5	63.5	53	8.8	4	6.5	10.5	16	3D
8	25	12	24	0.9	22.61	left	HL 21 GX	191 200/150	M16x1.5	M 625-L-025	M22x1.5	16	14	52	6	28	63	146.5	89.5	63.5	53	8.8	4	6.5	10.5	16	3D
8	25	25	37	0.9	17.42	right	HL 21 DX C25	191 210/050	M16x1.5	M 625-R-025-25	M22x1.5	16	14	52	6	28	76	175.5	105.5	79.5	66	8.8	4	6.5	10.5	16	3D
8	25	25	37	0.9	35.59	left	HL 21 GX C25	191 210/150	M16x1.5	M 625-L-025-25	M22x1.5	16	14	52	6	28	63	175.5	105.5	79.5	66	8.8	4	6.5	10.5	16	3D
16	36	15	29	2	26.95	right	HL 31 DX	192 162/050	M16x1.5	M 625-R-036	M30x1.5	18	20	72	10	38	110	176	106	78	60	11.1	5	10.5	17	11	3D
16	36	15	29	2	55.94	left	HL 31 GX	192 162/150	M16x1.5	M 625-L-036	M30x1.5	18	20	72	10	38	90	176	106	78	60	11.1	5	10.5	17	11	3D
16	36	25	39	2	36.85	right	HL 31 DX C25	192 181/050	M24x1.5	M 625-R-036-25	M30x1.5	18	20	72	10	38	110	201	121	93	70	11.1	5	10.5	17	11	3D
16	36	25	39	2	76.55	left	HL 31 GX C25	192 181/150	M24x1.5	M 625-L-036-25	M30x1.5	18	20	72	10	38	90	201	121	93	70	11.1	5	10.5	17	11	3D
24	42	15	22	3	46.1	right	HL 41 DX	192 188/050	M30x1.5	M 625-R-042	M36x1.5	20	22	88	10	45	128	202	125	95	65	11	5	10.5	17	12
24	42	15	22	3	50.5	left	HL 41 GX	192 188/150	M30x1.5	M 625-L-042	M36x1.5	20	22	88	10	45	108	202	125	95	65	11	5	10.5	17	12
24	42	15	22	3	59.93	right	HL 41 DX C25	192 189/050	M30x1.5	M 625-R-042-25	M36x1.5	20	22	88	10	45	128	222	135	105	75	11	5	10.5	17	12
24	42	15	22	3	77.35	left	HL 41 GX C25	192 189/150	M30x1.5	M 625-L-042-25	M36x1.5	20	22	88	10	45	108	222	135	105	75	11	5	10.5	17	12
