Double-acting swing clamp – 250 bar – Screw cartridge HCV5

Double-acting - with rotation travel
Max force at 250 bar: 1.9 kN

Cartridge with hexagon head

Double-acting swing clamp – 250 bar – Screw cartridge HCV5 : Swing clamps with helical rotation - Quiri

Characteristics

• clamp body in burnished treated steel
• total travel 17 mm
• clamping travel 6 mm
• right or left helical rotation, 90° ± 2°

Options

• custom clamping arm
• 60°, 45° or 0° rotation

Nota

The clamps are supplied with seals.
Arm position indication by a hole on the rod is not possible.

Print this sheet

Double-acting swing clamp – 250 bar – Screw cartridge HCV5 : Swing clamps with helical rotation - Quiri - 2

Tightening torque of clamp in its recess: Cs=9.1 mdaN

F max at 250 bar	Flow rate max A	Flow rate max B	Swept volume A B	Section A B	Direction of rotation	Type	Reference
F max at 250 bar	Flow rate max A	Flow rate max B	Swept volume A B	Section A B	Direction of rotation	Type	Reference
kN	l/min	l/min	cm³	cm²
1.9	0.2	0.36	1.67	0.98	right	HCV 5 D	191 175/050
1.9	0.2	0.36	3	1.77	left	HCV 5 G	191 175/150

Recess machining dimensions

Double-acting swing clamp – 250 bar – Screw cartridge HCV5 : Swing clamps with helical rotation - Quiri - 3

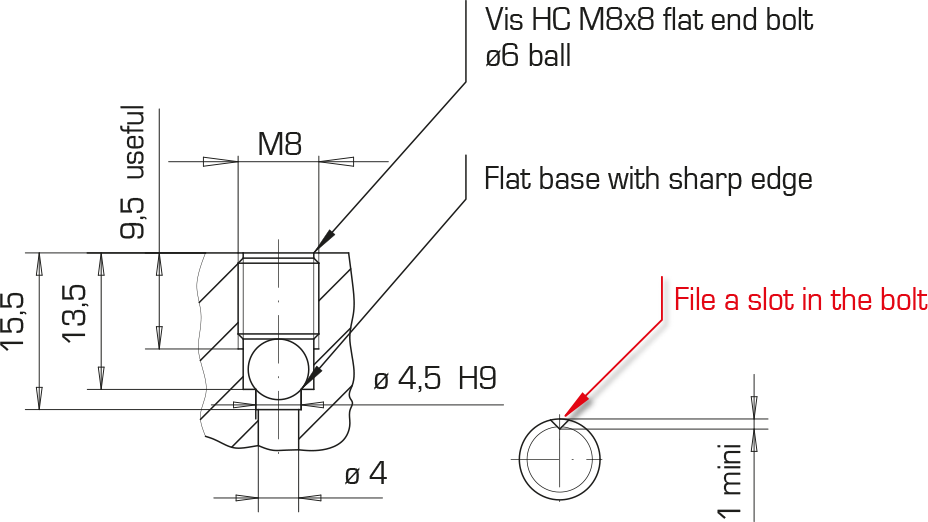

Details of bleeder

Double-acting swing clamp – 250 bar – Screw cartridge HCV5 : Swing clamps with helical rotation - Quiri - 4

Product accessories

Clamping arm for swing clamp: P5 BP5

for swing clamp: H5

Product charts

View similar products

Universal double-acting swing clamp – 350 bar – Flanged cartridge version UBC

Double-acting - with rotation travel
Force at 350 bar: 6 to 22 kN

Universal double-acting swing clamp – 500 bar – Threaded body supplied through counter-bores in the base UFL

Double-acting - with rotation travel
Force at 500 bar: 6.5 to 42 kN

Double-acting swing clamp – 250 bar – Fastening with base with counter-bores HFL5

Double-acting - with rotation travel
Max force at 250 bar: 1.9 kN

Double-acting swing clamp – 250 bar – Fastening with base with taps HFT5

Double-acting - with rotation travel
Force at 250 bar: 1.9 kN
