Double-acting swing clamp – 250 bar – Fastening with flange ring with taps HT

Double-acting - with rotation travel
Force at 250 bar: 8 to 16 kN

Supply through taps on the head

Double-acting swing clamp – 250 bar – Fastening with flange ring with taps HT : Swing clamps with helical rotation - Quiri

Characteristics

• total travel = rotation travel + clamping travel
• right or left helical rotation, 90°±2°
• bleeder near clamping (HL12, HL 21, HL 31 & HL 31)
• bleeder near release (HL 31 & HL 41)
• rod indexing
• maximum service pressure: 250 bar

Options

• clamping arm: see accessories section
• 60°, 45° or 0° rotation on request
• metal scraper on request

Nota

Clamps are supplied with O-rings, lock nut and lock washer (dimensions and tightening torque: see Lock washer for clamp type P11, P21 and Nut for clamp type P31 and P41).

O-rings:

5.28 x 1.78 (HT 21) 90 NBR
7.65 x 1.78 (HT 31) 90 NBR

Print this sheet

Double-acting swing clamp – 250 bar – Fastening with flange ring with taps HT : Swing clamps with helical rotation - Quiri - 2

Definition of forces depending on clamping arm: see charts at the bottom of the page
Important recommendations: consult the guide
NOT INDEXED: The pin may be removed using a drift punch

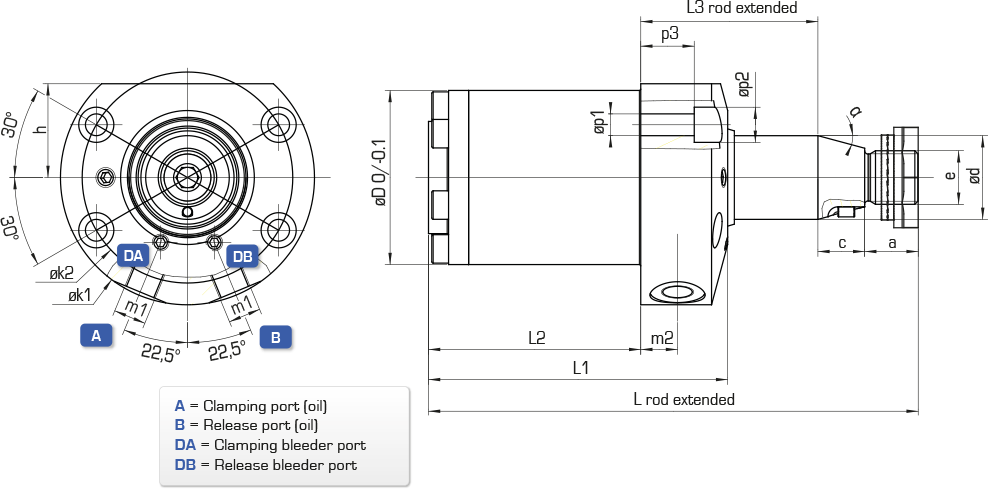

Max force at 250 bar	Rod ød	Clamping travel	Total travel	Max flow rate A	Swept volume A B	Direction of rotation	α = 15° (with indexing)
Max force at 250 bar	Rod ød	Clamping travel	Total travel	Max flow rate A	Swept volume A B	Direction of rotation	Type	Reference	e1	a	c	øD	f Hexagonal	h	øk1 øk2	L	L1	L2	L3	m	øp1	øp2	p3
kN	mm	mm	mm	l/min	cm³					mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm
8	25	12	24	0.9	11.6	right	HT 21 DX	191 224/050	M16x1.5	16	14	52	6	28	76	146.5	89.5	63.5	53	G1/8’’	6.5	10.5	16
8	25	12	24	0.9	22.61	left	HT 21 GX	191 224/150	M16x1.5	16	14	52	6	28	63	146.5	89.5	63.5	53	G1/8’’	6.5	10.5	16
8	25	25	37	0.9	17.42	right	HT 21 DX C25	192 225/050	M16x1.5	16	14	52	6	28	76	175.5	105.5	79.5	66	G1/8’’	6.5	10.5	16
8	25	25	37	0.9	35.59	left	HT 21 GX C25	192 225/150	M16x1.5	16	14	52	6	28	63	175.5	105.5	79.5	66	G1/8’’	6.5	10.5	16
16	36	15	29	2	26.95	right	HT 31 DX	191 400/050	M24x1.5	18	20	72	10	38	110	176	106	78	60	G1/4’’	10.5	17	11
16	36	15	29	2	55.94	left	HT 31 GX	191 400/150	M24x1.5	18	20	72	10	38	90	176	106	78	60	G1/4’’	10.5	17	11
16	36	25	39	2	36.85	right	HT 31 DX C25	192 217/050	M24x1.5	18	20	72	10	38	110	201	121	93	70	G1/4’’	10.5	17	11
16	36	25	39	2	76.55	left	HT 31 GX C25	192 217/150	M24x1.5	18	20	72	10	38	90	201	121	93	70	G1/4’’	10.5	17	11
16	36	50	64	2	60.47	right	HT 31 DX C50	192 196/050	M24x1.5	18	20	72	10	38	110	251	146	97	116	G1/4’’	10.5	17	11
16	36	50	64	2	125.6	left	HT 31 GX C50	192 196/150	M24x1.5	18	20	72	10	38	90	251	146	97	116	G1/4’’	10.5	17	11
