Spring clamp RS

Thrust or traction
Max. force: 26 to 130 kN

Characteristics

• clamping by lock washers
• release by application of pressure
• used both in traction and in thrust
• threaded body
• fastening tap on the head

Design

• steel body with anti-corrosion treatment
• treated steel rod

Options

• special models on request

Print this sheet
Spring clamp RS : Linear cylinders - Quiri - 2

Part numbers of packs of nitrile seals for RS: 11* ***/900
Example for RS 26 clamp, part no.: 111 130/900
Maximum pressure: 350 bar (internal mechanical stop)

Max. force Travel Type Reference
øD



 ød1



 ød2



 e



 G



 g



 g1

(4x at 90°)

 L



 L1



 L2



 øm



 n


kN mm mm mm mm mm mm mm mm mm mm
26 2 RS 26 C2 111 130/000 75 20 18 13 M52 x 1.5 M12 lg. 20 M6 lg. 15 104 98 73 56 5 3D
4 RS 26 C4 111 130/100 168 162 137 3D
38 2 RS 38 C2 111 131/000 90 30 25 14 M75 x 1.5 M16 lg. 25 M10 lg .20 111 105 80 70 5 3D
4 RS 38 C4 111 131/100 170 164 139 3D

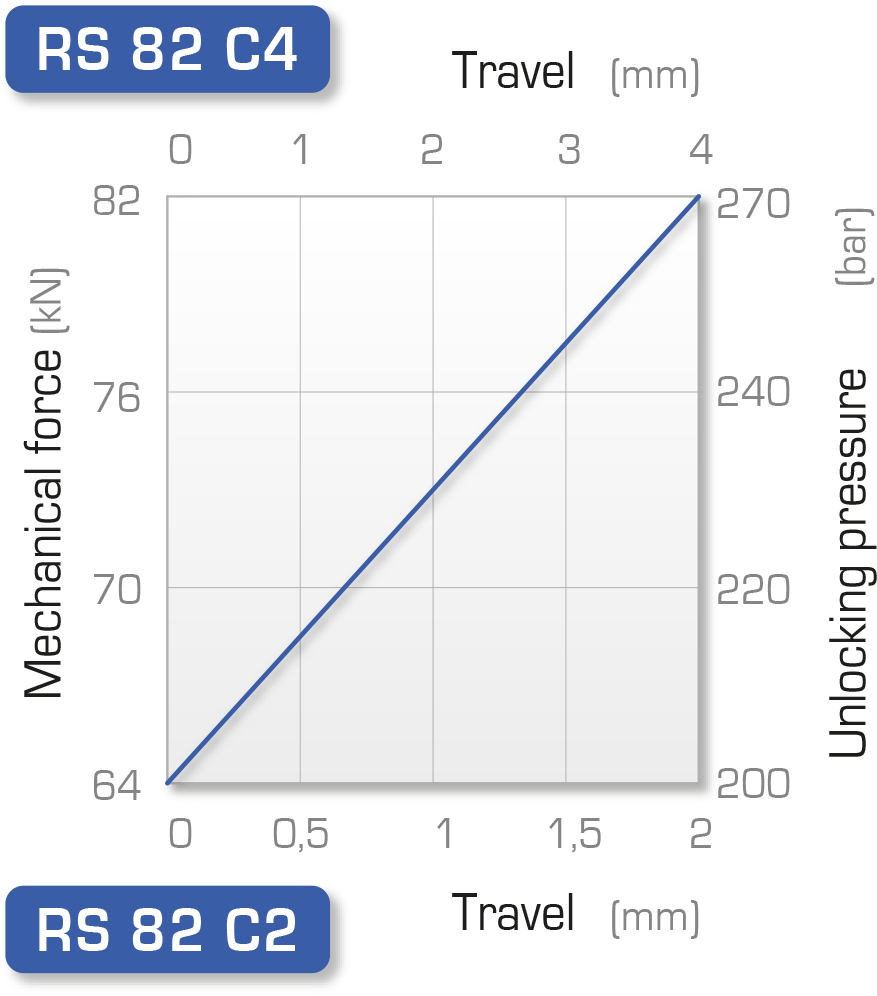

82 2 RS 82 C2 112 103/000 105 30 30 18 M85 x 2 M 16 lg. 30 M12 lg. 25 145 139 109 80 5 3D
4 RS 82 C4 112 103/100 230 224 194 3D

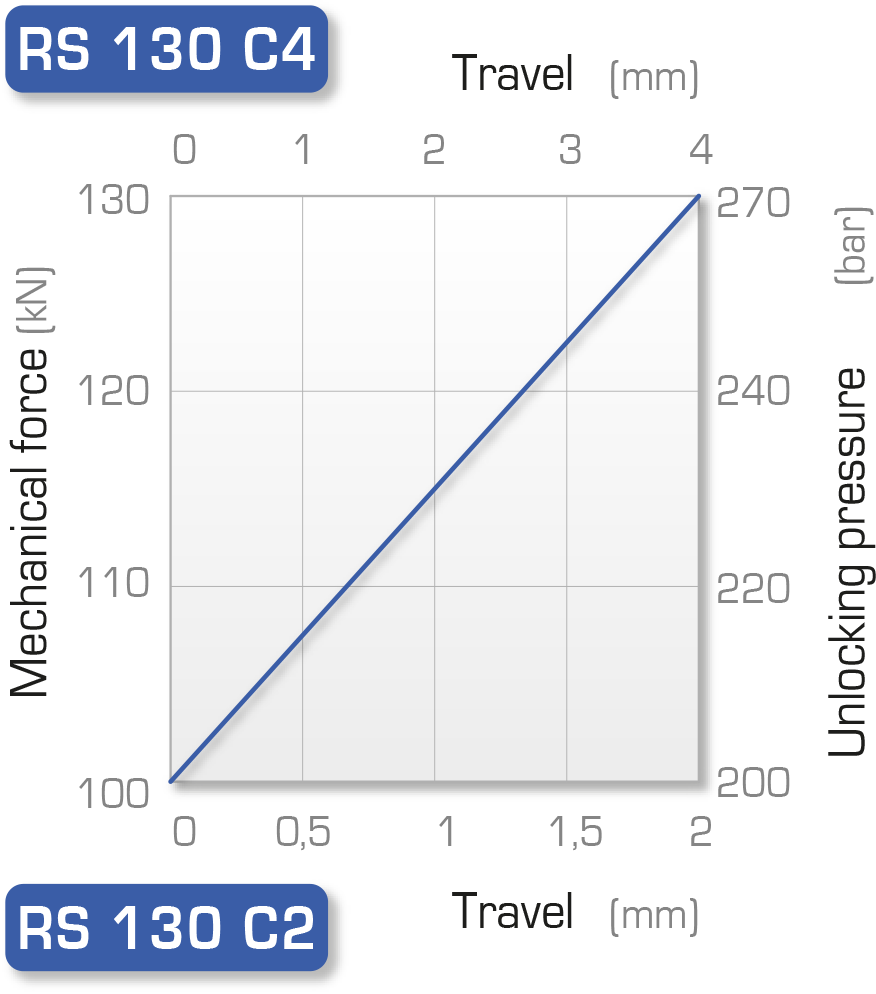

130 2 RS 130 C2 112 104/000 130 50 40 23 M115 x 2 M24 lg. 30 M14 lg. 25 163 154 119 106 8 3D
4 RS 130 C4 112 104/100 249 240 205 3D
