Single-acting cartridge clamp – spring return CS

Single-acting - spring return
Max force at 350 bar: 2.7 to 109 kN

Single-acting cartridge clamp – spring return CS : Linear cylinders - Quiri

Characteristics

• screw type cartridge
• direct supply in the block
• spring return
• domed or tapped end with flats
• supplied with O-ring and anti-extrusion ring

Design

• steel body with anti-corrosion treatment
• treated steel rod

Nota

The use of single-acting clamps is not recommended when cutting fluid is used. In such applications, we recommend the use of CD or CDD types.

Print this sheet

Single-acting cartridge clamp – spring return CS : Linear cylinders - Quiri - 2

Part numbers of packs of nitrile seals for CS: 11* ***/900
Part numbers of packs of Viton™ seals for CS. V: 11* ***/960

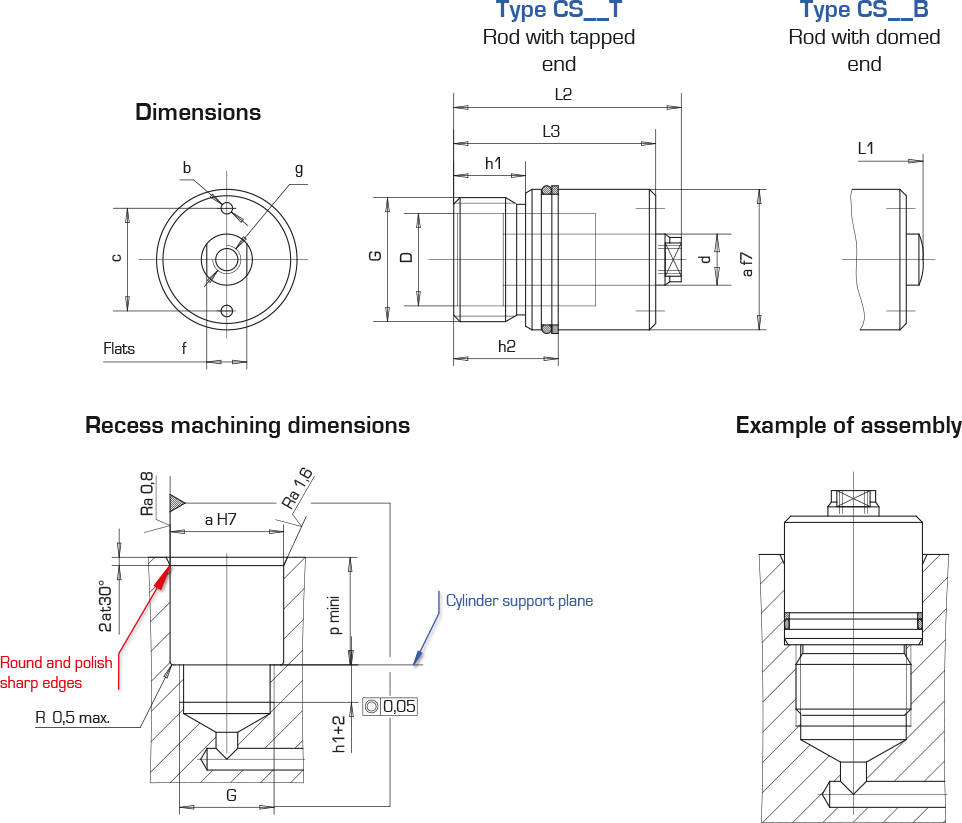

Force at 350 bar	Travel	Thrust cross section	Rod øD	Rod ød	Type	Reference
Force at 350 bar	Travel	Thrust cross section	Rod øD	Rod ød	Type	Reference	L1	L2	L3	h1	h2	øa	øb	c	f	G	g	p min
kN	mm	cm²	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm			mm
2.7	10	0.78	10	5	CS 5 B	111 100/000	37	40	35	12	17	16	2	12.5	–	M15 x 1.5	M3 lg. 6	9	3D
2.7	10	0.78	10	5	CS 5 T	111 100/100	37	40	35	12	17	16	2	12.5	–	M15 x 1.5	M3 lg. 6	9	3D
7	12	2.0	16	8	CS 10 B	111 101/000	47	50	44	13	20	24	3	18	–	M22 x 1.5	M5 lg. 10	11	3D
7	12	2.0	16	8	CS 10 T	111 101/100	47	50	44	13	20	24	3	18	–	M22 x 1.5	M5 lg. 10	11	3D
11	12	3.14	20	10	CS 15 B	111 102/000	51	54	47	14	21	28	4	22	8	M26 x 1.5	M6 lg.12	11	3D
11	12	3.14	20	10	CS 15 T	111 102/100	51	54	47	14	21	28	4	22	8	M26 x 1.5	M6 lg.12	11	3D
17.1	16	4.9	25	14	CS 25 B	111 103/000	59	62	55	16	25	34	4	28	11	M32 x 1.5	M8 lg. 12	13	3D
17.1	16	4.9	25	14	CS 25 T	111 103/100	59	62	55	16	25	34	4	28	11	M32 x 1.5	M8 lg. 12	13	3D
28	16	8.0	32	16	CS 40 B	111 104/000	64	67	59	17	25	42	5	32	13	M40 x 1.5	M10 lg. 15	12	3D
28	16	8.0	32	16	CS 40 T	111 104/100	64	67	59	17	25	42	5	32	13	M40 x 1.5	M10 lg. 15	12	3D
44	20	12.56	40	20	CS 65 B	111 105/000	86	89	80.5	22	34	52	6	40	17	M50 x 1.5	M12 lg. 20	16	3D
44	20	12.56	40	20	CS 65 T	111 105/100	86	89	80.5	22	34	52	6	40	17	M50 x 1.5	M12 lg. 20	16	3D
68.7	20	19.62	50	25	CS 100 B	112 090/000	89	92	81	28	37	64	8	48	19	M62 x 1.5	M16 lg. 22	13	3D
68.7	20	19.62	50	25	CS 100 T	112 090/100	89	92	81	28	37	64	8	48	19	M62 x 1.5	M16 lg. 22	13	3D
109	25	31.15	63	32	CS 160 B	112 091/000	104	108	95	30	41	80	10	62	24	M78 x 1.5	M20 lg. 30	15	3D
109	25	31.15	63	32	CS 160 T	112 091/100	104	108	95	30	41	80	10	62	24	M78 x 1.5	M20 lg. 30	15	3D
