Single-acting cartridge clamp – hexagon head CSH

Single-acting - spring return- hexagon head
Max force at 350 bar: 2.7 to 109 kN

Single-acting cartridge clamp – hexagon head CSH : Linear cylinders - Quiri

Characteristics

• screw type cartridge
• direct supply in the block
• spring return
• domed or tapped end with flats
• supplied with O-ring and anti-extrusion ring

Design

• steel body with anti-corrosion treatment
• treated steel rod

Nota

The use of single-acting clamps is not recommended when cutting fluid is used. In such applications, we recommend the use of CD or CDD types.

Print this sheet

Single-acting cartridge clamp – hexagon head CSH : Linear cylinders - Quiri - 2

Part numbers of packs of nitrile seals for CSH: 11* ***/900
Part numbers of packs of Viton™ seals for CSH. V: 11* ***/960

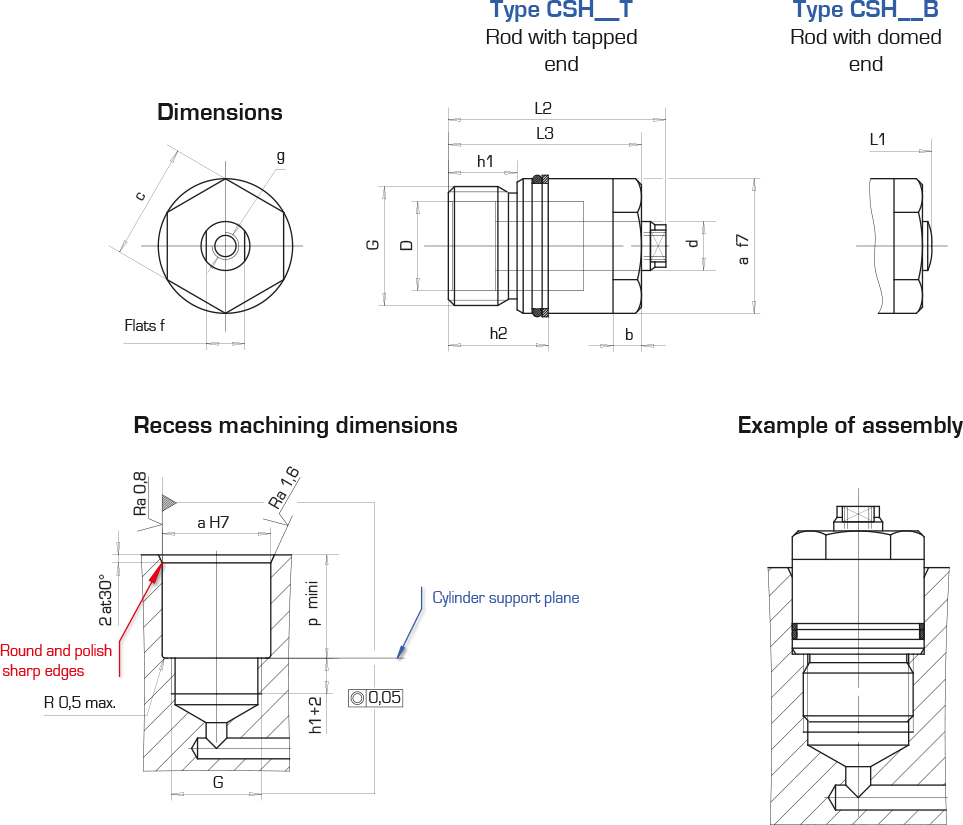

Force at 350 bar	Travel	Thrust cross section	Rod øD	Rod ød	Type	Reference
Force at 350 bar	Travel	Thrust cross section	Rod øD	Rod ød	Type	Reference	L1	L2	L3	h1	h2	øa	b	c	f	G	g	p min
kN	mm	cm²	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm			mm
2.7	10	0.78	10	5	CSH 5 B	111 100/200	37	40	35	12	17	16	2	13	–	M15 x 1.5	M3 lg. 6	9	3D
2.7	10	0.78	10	5	CSH 5 T	111 100/300	37	40	35	12	17	16	2	13	–	M15 x 1.5	M3 lg. 6	9	3D
7	12	2.0	16	8	CSH 10 B	111 101/200	47	50	44	13	20	24	3	19	–	M22 x 1.5	M5 lg. 10	11	3D
7	12	2.0	16	8	CSH 10 T	111 101/300	47	50	44	13	20	24	3	19	–	M22 x 1.5	M5 lg. 10	11	3D
11	12	3.14	20	10	CSH 15 B	111 102/200	51	54	47	16	21	28	4	24	8	M26 x 1.5	M6 lg.12	11	3D
11	12	3.14	20	10	CSH 15 T	111 102/300	51	54	47	16	21	28	4	24	8	M26 x 1.5	M6 lg.12	11	3D
17.1	16	4.9	25	14	CSH 25 B	111 103/200	59	62	55	15	25	34	4	30	11	M32 x 1.5	M8 lg. 12	13	3D
17.1	16	4.9	25	14	CSH 25 T	111 103/300	59	62	55	15	25	34	4	30	11	M32 x 1.5	M8 lg. 12	13	3D
28	16	8.0	32	16	CSH 40 B	111 104/200	64	67	59	17	25	42	5	36	13	M40 x 1.5	M10 lg. 15	12	3D
28	16	8.0	32	16	CSH 40 T	111 104/300	64	67	59	17	25	42	5	36	13	M40 x 1.5	M10 lg. 15	12	3D
44	20	12.56	40	20	CSH 65 B	111 105/200	86	89	80.5	22	34	52	6	42	17	M50 x 1.5	M12 lg. 20	16	3D
44	20	12.56	40	20	CSH 65 T	111 105/300	86	89	80.5	22	34	52	6	42	17	M50 x 1.5	M12 lg. 20	16	3D
68.7	20	19.62	50	25	CSH 100 B	112 090/200	89	92	81	28	37	64	8	56	19	M62 x 1.5	M16 lg. 22	13	3D
68.7	20	19.62	50	25	CSH 100 T	112 090/300	89	92	81	28	37	64	8	56	19	M62 x 1.5	M16 lg. 22	13	3D
109	25	31.15	63	32	CSH 160 B	112 091/200	104	108	95	30	41	80	10	64	24	M78 x 1.5	M20 lg. 30	15	3D
109	25	31.15	63	32	CSH 160 T	112 091/300	104	108	95	30	41	80	10	64	24	M78 x 1.5	M20 lg. 30	15	3D
