Double-acting threaded clamp FD

Double acting
Max force at 350 bar: 11 to 109 kN

Characteristics

• domed or tapped rod end

Design

• steel body with anti-corrosion treatment
• treated steel rod

Print this sheet
Double-acting threaded clamp FD : Linear cylinders - Quiri - 2

Part numbers of packs of nitrile seals for FD: 14* ***/900
Example for FD 40 clamp, part no.: 11 108/900

Force

at

350

bar

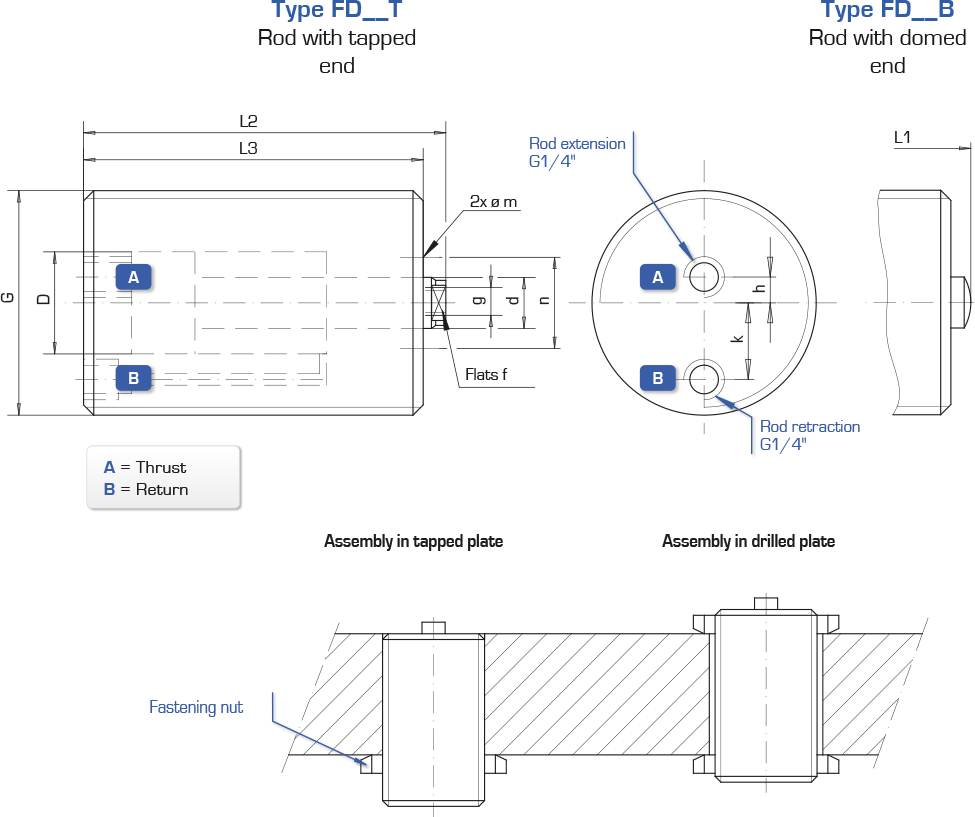

 Travel Thrust cross section Rod

øD

 Rod

ød

 Type Reference
L1





 L2





 L3





 f





 G





 g





 h





 k





 øm





 n




kN mm cm2 mm mm mm mm mm mm mm mm mm mm
P 11 20 P 3.14 20 10 FD 15 B 141 106/000 71.5 74.5 68 8 M45 x 1.5 M6 lg. 12 9 13 4 22 3D
T 8 T 2.35 FD 15 T 141 106/100
P 17.1 25 P 4.9 25 14 FD 25 B 141 107/000 78.5 81.5 75 11 M52 x 1.5 M8 lg. 12 6 16 4 28 3D
T 12 T 2.37 FD 25 T 141 107/100
P 28 25 P 8.04 32 16 FD 40 B 141 108/000 84.5 87.5 80 13 M60 x 1.5 M10 lg.15 3 20 5 32 3D
T 21.7 T 6.03 FD 40 T 141 108/100
P 44 40 P 12.56 40 20 FD 65 B 141 109/000 105 108 100 17 M70 x 1.5 M12 lg. 20 0 25.5 6 40 3D
T 33.6 T 9.42 FD 65 T 141 109/100
P 68.7 40 P 19.63 50 25 FD 100 B 142 202/000 110.5 113.5 103 19 M85 x 2 M16 lg. 22 0 23.5 8 48 3D
T 52.9 T 14.72 FD 100 T 142 202/100
P 109 50 P 31.17 63 32 FD 160 B 142 203/000 125.5 129.5 117 24 M105 x 2 M20 lg. 30 0 41 10 62 3D
T 83.3 T 23.13 FD 160 T 142 203/100
