Double-acting cartridge clamp CD

Double-acting - Screw type
Max force at 350 bar: 10.8 to 109 kN

Double-acting cartridge clamp CD : Linear cylinders - Quiri

Characteristics

• screw type cartridge
• direct supply in the block
• spring return
• domed or tapped end with flats
• supplied with O-ring and anti-extrusion ring

Design

• steel body with anti-corrosion treatment
• treated steel rod
• double sealing on rod

Nota

The use of single-acting clamps is recommended when cutting fluid is used

Print this sheet

Double-acting cartridge clamp CD : Linear cylinders - Quiri - 2

Part numbers of packs of nitrile seals for CD: 141 ***/900
Part numbers of packs of Viton™ seals for CD. V: 141 ***/960

Force at 350 bar		Travel	Thrust cross section		Rod øD	Rod ød	Type	Reference

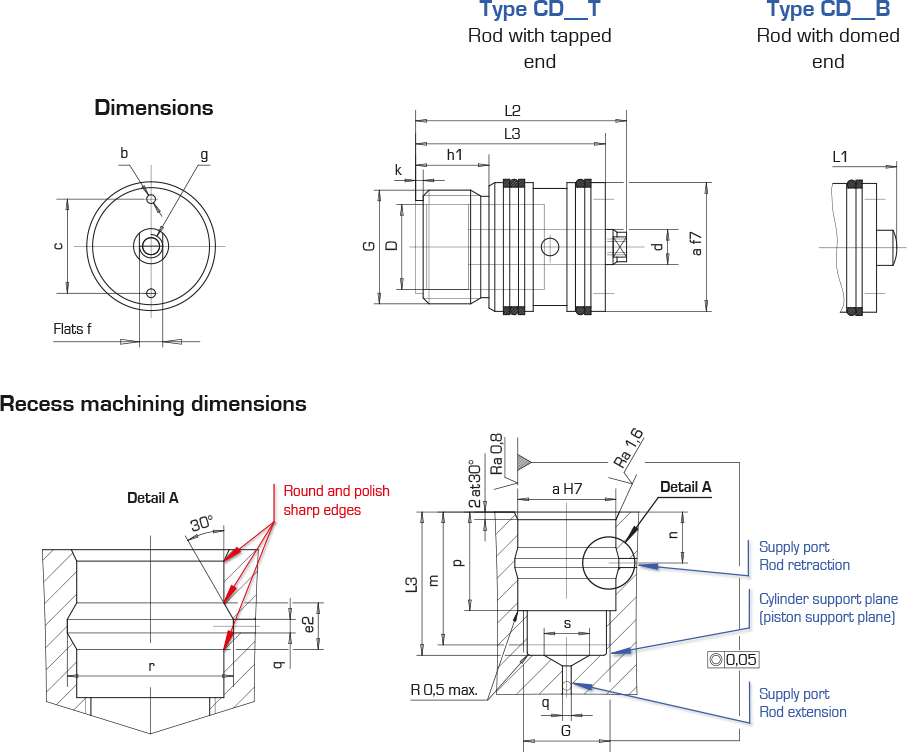

Force at 350 bar		Travel	Thrust cross section		Rod øD	Rod ød	Type	Reference	L1	L2	L3	h1	øa	øb	c	ør e2	f	G	g	k max	p +1 0	q	m	n	s
kN		mm	cm²		mm	mm			mm	mm	mm	mm	mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm
P	10.8	20	P	3.14	20	10	CD 15 B	141 429/000	48	51	44	17	28	4	22	29	8	M26 x 1.5	M6 lg. 12	3	28	3	41	14	15	3D
T	8	20	T	2.35	20	10	CD 15 T	141 429/100	48	51	44	17	28	4	22	5	8	M26 x 1.5	M6 lg. 12	3	28	3	41	14	15	3D
P	17.1	25	P	4.9	25	14	CD 25 B	141 103/000	56	59	52	19	34	4	28	35	11	M32 x 1.5	M8 lg. 12	4	34	3	48	16	20	3D
T	11.9	25	T	3.4	25	14	CD 25 T	141 103/100	56	59	52	19	34	4	28	5	11	M32 x 1.5	M8 lg. 12	4	34	3	48	16	20	3D
P	28.0	25	P	8.0	32	16	CD 40 B	141 104/000	61	64	56	22	42	5	32	43.6	13	M40 x 1.5	M10 lg.15	4	35	4	52	19	27	3D
T	21.0	25	T	6.0	32	16	CD 40 T	141 104/100	61	64	56	22	42	5	32	7	13	M40 x 1.5	M10 lg.15	4	35	4	52	19	27	3D
P	43.7	40	P	12.5	40	20	CD 65 B	141 105/000	82	85	76.5	30	52	6	40	54	17	M50 x 1.5	M12 lg. 20	5	47	6	71.5	21.5	35	3D
T	32.9	40	T	9.4	40	20	CD 65 T	141 105/100	82	85	76.5	30	52	6	40	10	17	M50 x 1.5	M12 lg. 20	5	47	6	71.5	21.5	35	3D
P	68.6	40	P	19.6	50	25	CD 100 B	142 200/000	85	88	77	33	64	8	48	66	19	M62 x 1.5	M16 lg. 22	6	45	6	71	22	45	3D
T	51.4	40	T	14.7	50	25	CD 100 T	142 200/100	85	88	77	33	64	8	48	10	19	M62 x 1.5	M16 lg. 22	6	45	6	71	22	45	3D
P	109.2	50	P	31.2	63	32	CD 160 B	142 201/000	99	103	90	40	80	10	62	82	24	M78 x 1.5	M20 lg. 30	6	51	6	84	25	58	3D
T	80.8	50	T	23.1	63	32	CD 160 T	142 200/100	99	103	90	40	80	10	62	10	24	M78 x 1.5	M20 lg. 30	6	51	6	84	25	58	3D
