Spherical accumulators AS

Pressure: 210 bar - 250 bar

Operating principle

The hydropneumatic accumulator is a reservoir of power which is called on if needed.

Characteristics

• Membrane accumulator
• recommended nitrogen pre-inflation pressure: 0.8 x service pressure

Print this sheet
Spherical accumulators AS : Hydraulic unit and components - Quiri - 2

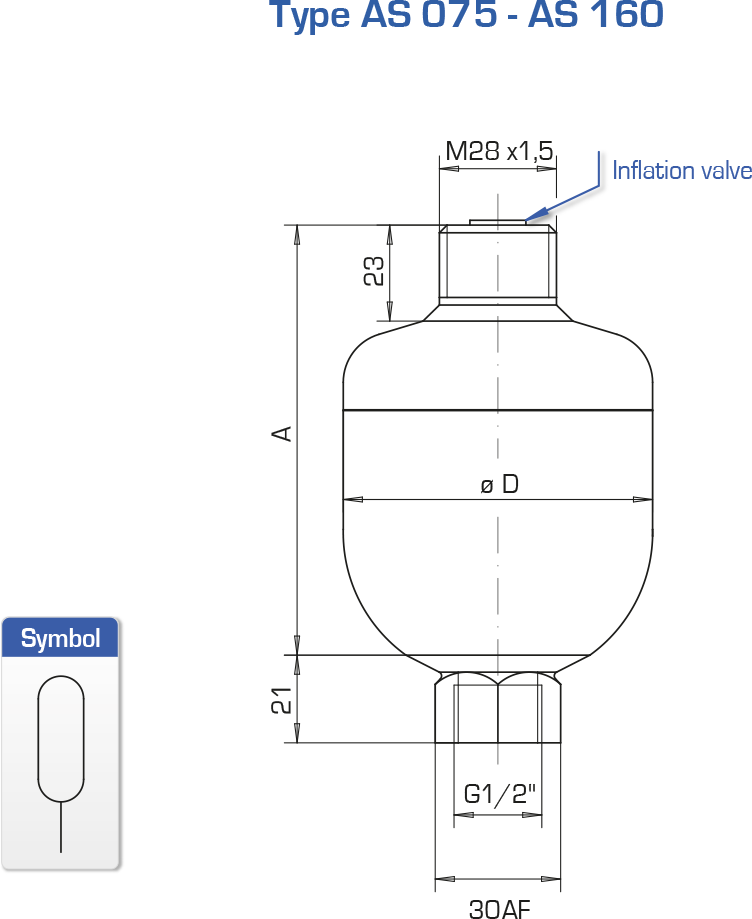

Type Reference
Pressure

Max.



 Capacity





 A





 øD





 Weight




bar cm3 mm mm Kg
AS 075 A 66 334 250 75 91 64 0.7
AS 160 A 66 318 210 160 103 74 0.8
