Hydraulic block cylinders – BDE F1 Type
Test pressure: 500 bars
Max working pressure: 350 bars
Feeding holes at the bottom.
- Key groove (key provided)
- Solid body, burnished bore
- Solid piston rod
- Strokes ± 0,3mm
- Guiding improved on piston and rod

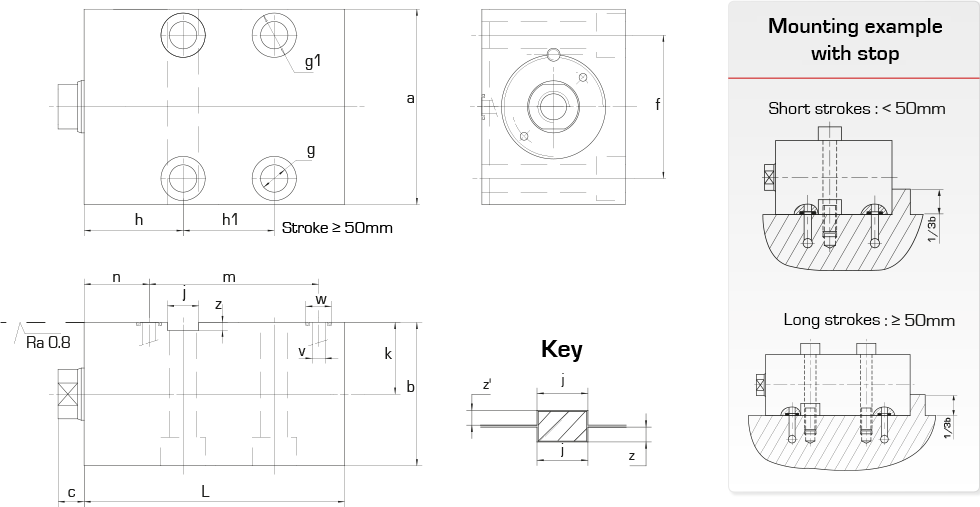

| TYPE | Units | BDE 25 | BDE 32 | BDE 40 | BDE 50 | BDE 63 | BDE 80 | BDE 100 | BDE 125 |
| Piston ø | (mm) | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
| Rod ø | (mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 |
| Pushing force at 100 bars | (kN) | 4.9 | 8.0 | 12.5 | 19.6 | 31.1 | 50.2 | 78.5 | 122.7 |
| Pulling force at 100 bars | (kN) | 2.9 | 4.9 | 7.7 | 11.6 | 18.6 | 30.6 | 47.4 | 72.4 |
| a | (mm) | 65 | 75 | 85 | 100 | 125 | 160 | 200 | 230 |
| b | (mm) | 45 | 55 | 63 | 75 | 95 | 120 | 150 | 180 |
| c | (mm) | 7 | 10 | 10 | 10 | 14 | 14 | 15 | 16 |
| f | (mm) | 50 | 55 | 63 | 76 | 95 | 120 | 158 | 180 |
| g | (mm) | 8.5 | 10.5 | 10.5 | 13 | 17 | 21 | 25 | 32 |
| g1 x depth | (mm) | ø14 x 9 | ø17 x 11 | ø17 x 11 | ø19 x 13 | ø25 x 17 | ø32 x 21 | ø38 x 25 | ø47 x 30.5 |
| h | (mm) | 33 | 38 | 40 | 44 | 50 | 60 | 64 | 82 |
| j H8 | (mm) | 10 | 12 | 12 | 16 | 20 | 24 | 28 | 35 |
| k | (mm) | 22.5 | 27.5 | 31.5 | 37.5 | 47.5 | 60 | 75 | 90 |
| øv | (mm) | 4 | 5 | 5 | 6 | 8 | 8 | 8 | 8 |
| øw x depth | (mm) | 10.8 x 1.1 | 10.8 x 1.1 | 10.8 x 1.1 | 12.7 x 1.3 | 14.2 x 1.3 | 14.2 x 1.3 | 17.5 x 2 | 17.5 x 2 |
| n | (mm) | 21 | 25 | 27 | 29 | 32 | 39 | 40 | 47 |
| z | (mm) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| z’ (+0.1 0) | (mm) | 6 | 5 | 4 | 5 | 6 | 7 | 8 | 9 |
| Stroke(C)<=130 mm | |||||||||
| Body length (L) | (mm) | C+44 | C+50 | C+54 | C+65 | C+72 | C+85 | C+90 | C+110 |
| Between feeding holes (m) | (mm) | C+15.5 | C+15 | C+17 | C+23 | C+24 | C+25 | C+25 | C+32 |
| 50 mm<=Stroke(C)<=130 mm | |||||||||
| Between fixing holes (h1) | (mm) | C-15 | C-15 | C-13 | C-9 | C-19 | C-22 | C-28 | C-38 |
| Stroke(C)>130 mm | |||||||||
| Body length (L) | (mm) | C+58.5 | C+66 | C+70 | C+86 | C+90 | C+106 | C+108 | C+137 |
| Between feeding holes (m) | (mm) | C+18.5 | C+18 | C+20 | C+26 | C+28 | C+29 | C+29 | C+36 |
| Between fixing holes (h1) | (mm) | C-12 | C-12 | C-10 | C-6 | C-15 | C-18 | C-24 | C-34 |
| Maximum stroke | (mm) | 200 | 250 | 300 | 350 | 350 | 400 | 400 | 400 |
| 3D Model | 3D | 3D | 3D | 3D | 3D | 3D | 3D | 3D | |
Rod ends
| TYPE | Units | BDE 25 | BDE 32 | BDE 40 | BDE 50 | BDE 63 | BDE 80 | BDE 100 | BDE 125 |
| ød | (mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 |
| B | (mm) | 5.8 | 7.5 | 8.5 | 9 | 12.2 | 12 | 12 | 13 |
| C | (mm) | M10 x 1.5 | M12 x 1.75 | M16 x 2 | M20 x 2.5 | M27 x 3 | M30 x 3.5 | M42 x 4.5 | M48 x 5 |
| øD | (mm) | 10.5 | 12.5 | 16.5 | 21 | 28 | 31 | 43 | 49 |
| øE | (mm) | 15.2 | 19 | 24 | 31 | 39 | 49 | 61.5 | 78 |
| K | (mm) | 13 | 17 | 22 | 27 | 36 | 46 | 55 | 70 |
| L | (mm) | 18 | 22 | 28 | 36 | 45 | 52 | 60 | 64 |
| M | (mm) | M14 x 1.5 | M16 x 1.5 | M20 x 1.5 | M27 x 2 | M33 x 2 | M39 x 2 | M45 x 2 | M52 x 2 |
| P | (mm) | 18 | 18 | 25 | 30 | 40 | 40 | 60 | 70 |
| Q | (mm) | 4 | 4 | 7 | 7 | 10 | 10 | 10 | 10 |
Options
WARNING:
For cylinders of this type, with strokes >130mm, the 4 smooth mounting holes parallel to the rod are automatically replaced by 4 tapped holes (TA) on the feed face.
| TYPE | Units | BDE 25 | BDE 32 | BDE 40 | BDE 50 | BDE 63 | BDE 80 | BDE 100 | BDE 125 |
| TA | (mm) | M8 x 12 | M10 x 15 | M10 x 15 | M12 x 18 | M16 x 24 | M20 x 30 | M24 x 36 | M30 x 45 |
| LI | (mm) | 8.5 | 10.5 | 10.5 | 13 | 17 | 21 | 25 | 32 |
