Hydraulic block cylinders – BDD F1 Type

Test pressure: 500 bars
Max working pressure: 350 bars

Feeding holes at the bottom.
Smooth holes perpendicular to the rod.
Key provided
Seals kits are available on stock

Characteristics

  • Double rod sealing
  • Solid body with burnished bore
  • Solid piston rod, heat treated steel
  • Strokes ± 0,3mm
  • Warranty 2 years or 400 km (4 million cycles for a stroke of 50 mm)
  • HELD IN STOCK
Print this sheet
Hydraulic block cylinders – BDD F1 Type : Hydraulic block cylinders BDD - Quiri - 2

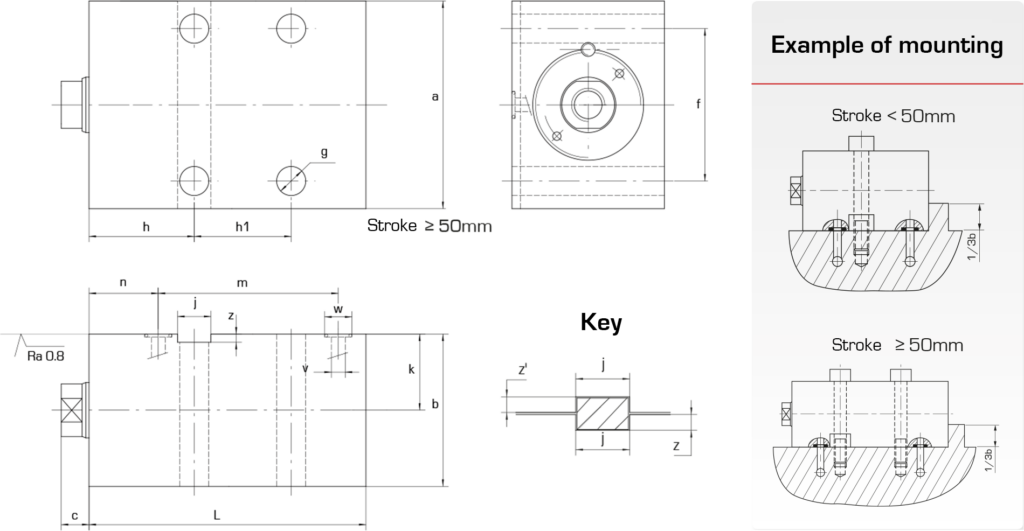

TYPE Units BDD10 BDD25 BDD40 BDD65 BDD100 BDD160
Piston (mm) 16 25 32 40 50 63
Rod (mm) 10 16 20 25 32 40
Pushing force at 100 bars (kN) 2.0 4.9 8.0 12.5 19.6 31.1
Pulling force at 100 bars (kN) 1.2 2.9 4.9 7.7 11.6 18.6
a (mm) 60 65 75 85 100 125
b (mm) 35 45 55 63 75 95
c (mm) 6 7 10 10 10 14
f (mm) 30 50 55 63 76 95
g (mm) 6.5 8.5 10.5 10.5 13 17
h (mm) 30 33 38 40 44 50
j (mm) 8 10 12 12 16 20
k (mm) 17.5 22.5 27.5 31.5 37.5 47.5
øv (mm) 3.5 4 5 6 6 8
øw x depth (mm) 9.8 x 1.1 9.8 x 1.1 9.8 x 1.1 9.8 x 1.1 10.8 x 1.1 13.8 x 1.5
n (mm) 20.5 21 25 27 29.5 32
z (mm) 2 2 3 3 5 5
z’ (mm) 4 6 5 5 5 7
Stroke (mm) 16 20 25 25 25 30
Body length (L) (mm) 56 64 75 79 90 102
Between feeding holes (m) (mm) 28.5 35 40 42 47.5 54
Stroke (mm) 50 50 50 50 50 63
Body length (L) (mm) 91 94 100 104 115 135
Between feeding holes (m) (mm) 63.5 65.5 65 67 72.5 87
Between fixing holes (h1) (mm) 36.5 35 35 37 41 44
Stroke (mm) – 100 100 100 100 100
Body length (L) (mm) – 144 150 154 165 172
Between feeding holes (m) (mm) – 115 117 119 125 129
Between fixing holes (h1) (mm) – 85 85 87 91 81
3D Model 3D 3D 3D 3D 3D 3D

Rod ends

Hydraulic block cylinders – BDD F1 Type : Hydraulic block cylinders BDD - Quiri - 3
TYPE Units BDD10 BDD25 BDD40 BDD65 BDD100 BDD160
ød (mm) 10 16 20 25 32 40
B (mm) 4.5 5.8 7.5 8.5 9 12.2
C (mm) M6 M10 M12 M16 M20 M27
øD (mm) 6.3 10.5 12.5 16.5 21 28
øE (mm) 9.2 15.2 19 24 31 39
K (mm) 8 13 17 22 27 36
L (mm) 14 18 22 28 36 45
M (mm) M8 x 1 M14 x 1.5 M16 x 1.5 M20 x 1.5 M27 x 2 M33 x 2
P (mm) 15 18 18 25 30 40
Q (mm) 3 4 4 7 7 10

Product accessories

Coupling screw for BDD

Pressure screw for BDD
