Coupling screw for BDD

Print this sheet
Coupling screw for BDD : Hydraulic block cylinders BDD - Quiri

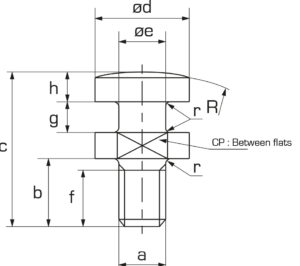

TYPE Dimensions
a b c ød øe f g h r R CP
VA 10.6 M6 12 28.5 12.5 6 9.5 6 5 0.8 200 10 3D
VA 25.10 M10 14.5 32 20 10 12 6.5 5.5 1 320 17 3D
VA 40.12 M12 14.5 32 20 10 12 6.5 5.5 1 320 17 3D
V 65.16 M16 20 40 25 16 16 7 6 1 400 22 3D
VA 100.20 M20 28 56 32 18 22 10 10 1 500 30 3D
VA 160.27 M27 39 75 40 24 32 13 12 1.5 630 36 3D

See similar accessories

Pressure screw for BDD
