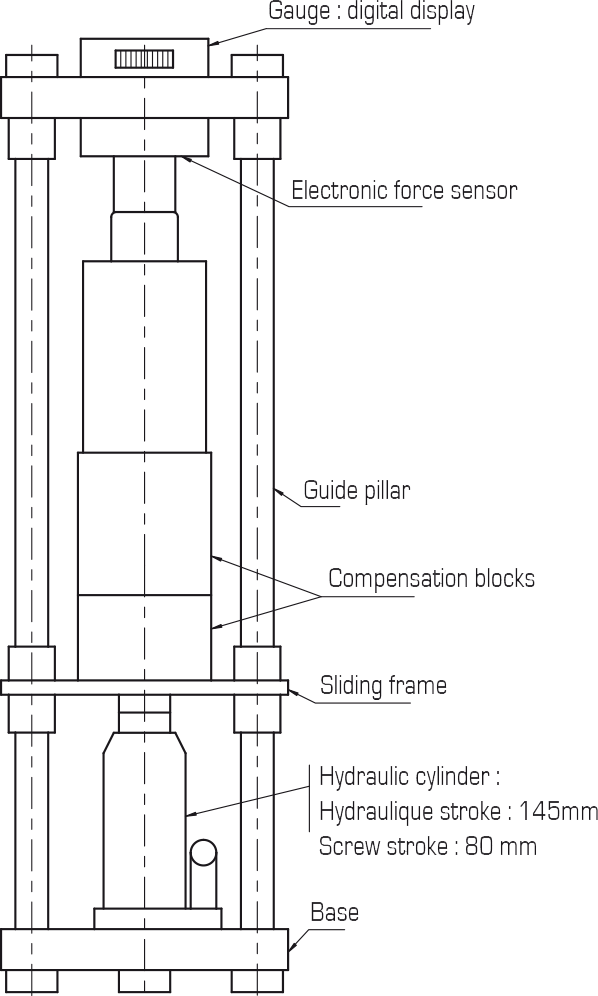

15 TON TEST BENCHES
• QTB-C (15 tons) with MECHANICAL PRESSURE GAUGE – (853038/000)
• QTB-C (15 tons) – 220V-50Hz power supply – with DIGITAL GAUGE – (853039/000)
Control:
The test bench has been specially designed to check the nominal load of the range of gas springs up to 15 tons
Nota:
The measured efforts are subject to variation (ambient temperature, recent use, etc.)
Admissible range for new spring: +/- 5%.
Permissible loss for ground spring: up to -10%.
Capacity:
– Maximum force :
Mechanical sensor => 15T
Digital sensor => 15T
– Maximum stroke : 100 mm
Dial gauge reading tolerance:
up to ± 0.1%
Overall dimension:
– Height : 1465 mm
– Length : 500 mm
– Width : 400 mm
– 2 guide pillars
Weight:
Approximately 140 kg (without gas spring)
