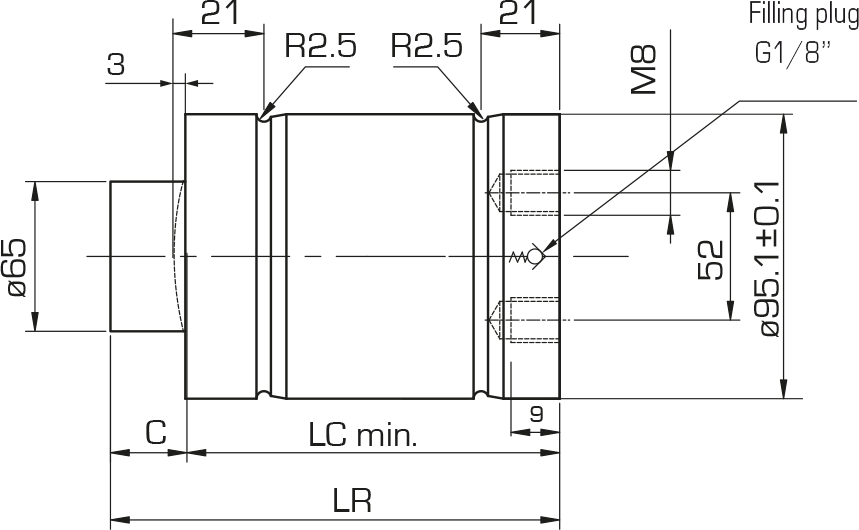

RGC 7500 gas spring
| Type | Force | Stroke C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | |||
| RGC | 7500 | 10 | 443162/000 | 15
(150) (!) |
75 400 | 104 400 | 90 | 80 | 3.00 | 3D |
| 16 | 443163/000 | 105 340 | 116 | 100 | 3.40 | 3D | ||||
| 25 | 443164/000 | 109 820 | 145 | 120 | 3.80 | 3D | ||||
| 32 | 443165/000 | 105 270 | 182 | 150 | 4.40 | 3D | ||||
| 40 | 443166/000 | 106 860 | 210 | 170 | 4.80 | 3D | ||||
| 50 | 443167/000 | 105 690 | 255 | 205 | 5.50 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order: RGC 7500 C50
Spare Kit : 896512/000.
Composition : Seals, valve and lubricant.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)

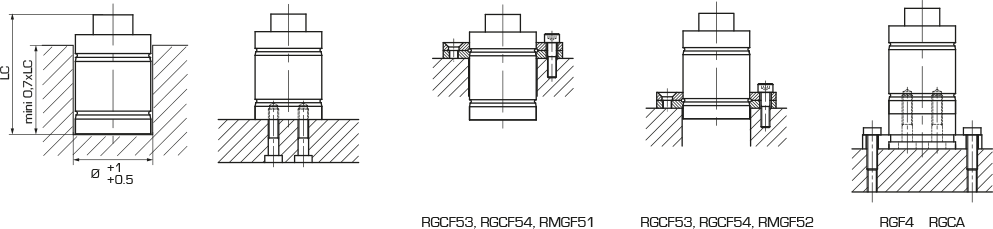

CAUTION : If you fix RGC type by bottom thread, gas spring’s bottom surface should lay completely on the die. RGC with stroke > 25mm should be attached to the die with screws or flanges (no drop-in mounting).
