RGC 1800 gas spring

Features

• Compact design, with extra high force 420 daN to 18 300 daN
• Stroke maximum : 50mm
• Double sealing
• Lubricated guiding
• Can be used in piping system with a rear adapter to :
– connect the gas springs in equi-pressure
– use the half-flange fixations of the ISO range

Print this sheet
RGC 1800 gas spring : SUPER COMPACT RGC - Quiri - 2
RGC 1800 gas spring : SUPER COMPACT RGC - Quiri - 3
RGC 1800 gas spring : SUPER COMPACT RGC - Quiri - 4

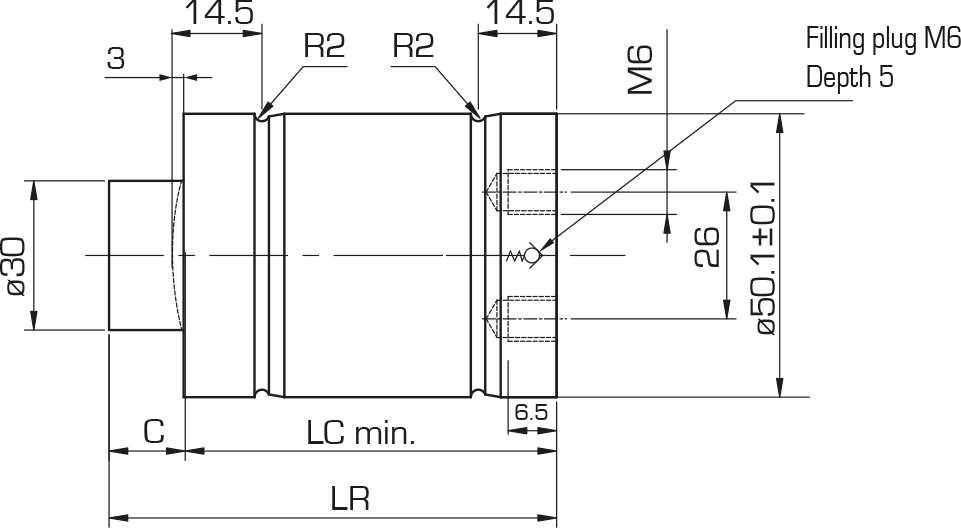

Type Force Stroke C Reference Pressure Force F1 Force F2 LR LC Mass 3D Model
daN mm MPa (bar) N* N* mm mm Kg
RGC 1800 6 443141/000 15

(150)

(!)

 18 850 25 800 66 60 0.40 3D
10 443142/000 27 490 80 70 0.73 3D
16 443143/000 27 300 106 90 0.86 3D
25 443144/000 28 320 135 110 1.01 3D
32 443145/000 28 240 162 130 1.13 3D
40 443146/000 28 360 190 150 1.26 3D
50 443147/000 28 960 220 170 1.40 3D

* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa

Example of order : RGC 1800 C50
Spare Kit : 896510/000
Composition : Seals, valve and lubricant

(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)

RGC 1800 gas spring : SUPER COMPACT RGC - Quiri - 5

CAUTION : If you fix RGC type by bottom thread, gas spring’s bottom surface should lay completely on the die. RGC with stroke > 25mm should be attached to the die with screws or flanges (no drop-in mounting).

Product accessories

RGF 53

841119/000

RGF 54

841139/000

RGF 4

841032/000

REAR ADAPTER – RGCA 1800

443141/100

RGCF 57

841163/000

CONNECTIONS FOR RGC GAS SPRINGS

View similar products

RGC 3000 gas spring

RGC 7500 gas spring

RGC 11800 gas spring

RGC 4700 gas spring
