Home » Quiri Hydromécanique » Gas Springs » NITROGEN LOAD BALANCER » Pulling load balancer – Piston rod normally in

Pulling load balancer – Piston rod normally in

Print this sheet

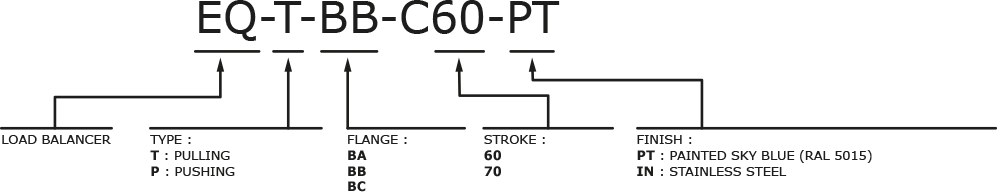

Pulling load balancer – Piston rod normally in : NITROGEN LOAD BALANCER - Quiri
Pulling load balancer – Piston rod normally in : NITROGEN LOAD BALANCER - Quiri - 2
Flange Stroke
(mm)		 Finitish Item Identification Max inflating pressure
(bar)		 Force F1



(daN/+20°C)

 Force F2



(daN/+20°C)

 Volume



(L)

 A



(mm)

 B



(mm)

 C



(mm)
BA 60 Painted 442023000 EQ-T-BA-C60-PT 21 332 2534 0.11 77 188 42
Stainless 442051000 EQ-T-BA-C60-IN
70 Painted 442056000 EQ-T-BA-C70-PT 2248 0.13 202
BB 60 Painted 442034000 EQ-T-BB-C60-PT 21 332 2534 0.11 64 201 55
Stainless 442035000 EQ-T-BB-C60-IN
70 Painted 442049000 EQ-T-BB-C70-PT 2248 0.13 215
BC 60 Painted 442024000 EQ-T-BC-C60-PT 21 332 2534 0.11 40 191 45
Stainless 442025000 EQ-T-BB-C60-IN

Product accessories

Flanges

Other accessories
