RGH 500 gas spring

Features

• Shortest length gas spring
• Body diameter is same as ISO type – from 45 mm to 120 mm
• Force : from 500 daN to 5000 daN
• Stroke : from 6 mm to 125 mm
• Can be used in piping system

Print this sheet

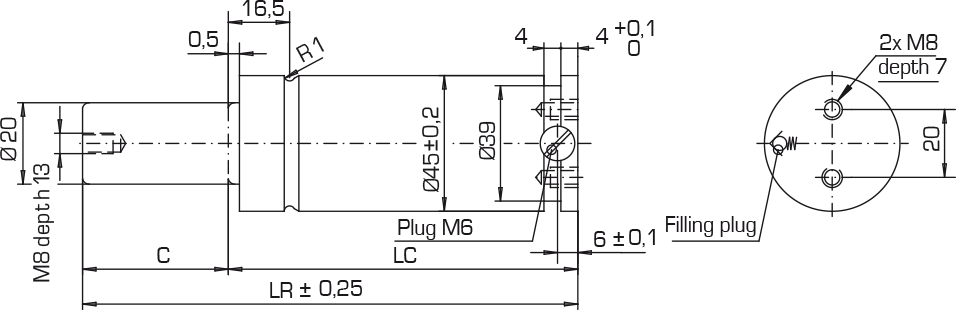

RGH 500 gas spring : LOW PROFILE RGH GAS SPRINGS - Quiri - 2
RGH 500 gas spring : LOW PROFILE RGH GAS SPRINGS - Quiri - 3
RGH 500 gas spring : LOW PROFILE RGH GAS SPRINGS - Quiri - 4
Type Force Stroke C Reference Pressure Force F1 Force F2 LR LC Mass
daN mm MPa (bar) N* N* mm mm Kg
RGH 500 6 442261/000 15

(150)

 4 720 6 460 62 56 0.83
12.7 442262/000 6 440 75.4 62.7 0.85
19 442263/000 6 480 88 69 0.87
25 442264/000 6 570 100 75 0.89
38 442265/000 6 660 126 88 0.93
50 442266/000 6 710 150 100 0.97
63 442267/000 6 750 176 113 1.01
80 442268/000 6 740 210 130 1.06
100 442269/000 6 770 250 150 1.12
125 442270/000 6 790 300 175 1.20

* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa

Example of order : RGH 500 C50
Spare kit : 896518/000
Composition : Guide ring, seals, valve and lubricant.

RGH 500 gas spring : LOW PROFILE RGH GAS SPRINGS - Quiri - 5

Product accessories

RGF 10

841073/000

RGF 4

841063/000

RGF 54

841138/000

RGF 53

841118/000

RGF 9

841224/100

RGHF 12

841131/100
