RG 500 gas spring
• Conform to standard dimensions ISO11901-1, CNOMO E.24.54.815.N
• Comply with European directive PED 97/23EC
• Force : from 250 to 10 000 daN (10t)
• Stroke : up to 300mm
• Designed for heavy duty
• Double sealing
• Oil lubricated guide ring
• Solid structure (no welding)
• Can be used in piping system
• Gas : Nitrogen
• Maximum inflating pressure : 150 bar
• Minimum inflating pressure : 25 bar
• Temperature limit : 0/+70°C
• Maximum piston rod speed : 1.6 m/s

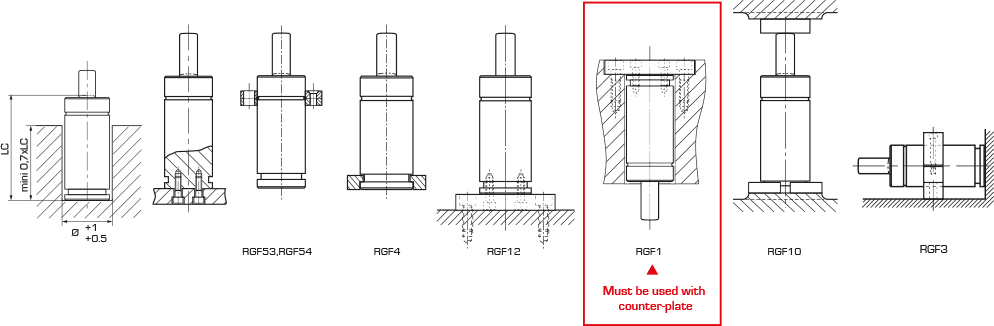

For connection details of ISO standard gas springs, please see CONNECTIONS FOR ISO GAS SPRINGS

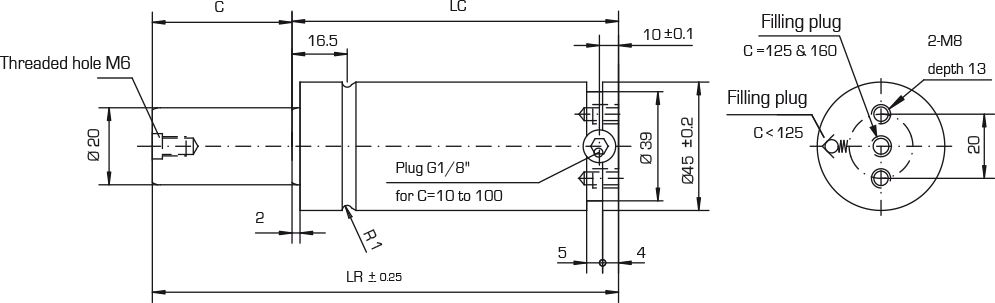

| Type | Force | Stroke C | Reference | ISO | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | ||||
| RG | 500 | 10 | 442251/000 | 15
(150) (!) |
4 720
|
5 980 | 105 | 95 | 0.95 | 3D | |
| 16 | 442252/000 | 6 120 | 117 | 101 | 1.00 | 3D | |||||
| 25 | 442253/000 | X | 6 260 | 135 | 110 | 1.05 | 3D | ||||
| 38 | 442257/000 | 6 380 | 161 | 123 | 1.15 | 3D | |||||
| 50 | 442254/000 | X | 6 440 | 185 | 135 | 1.20 | 3D | ||||
| 63 | 442258/000 | 6 480 | 211 | 148 | 1.30 | 3D | |||||
| 80 | 442255/000 | X | 6 470 | 245 | 165 | 1.40 | 3D | ||||
| 100 | 442256/000 | 6 570 | 285 | 185 | 1.55 | 3D | |||||
| 125 (1) | 442259/000 | 6 600 | 335 | 210 | 1.70 | 3D | |||||
| 160 (1) | 442260/000 | 6 550 | 405 | 245 | 1.90 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order: RG 500 C50
Spare Kits – Composition : Guide ring; seals, valve and lubricant.
– V1 (bronze ring and chrome piston rod) : 896488/000.
– V2 (Black steel ring and piston rod) : 896597/000.
(1) Stroke 125, 160 can not be used in piping system because their inflating valve is on the bottom of cylinder body.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
