RG 1500 gas spring
• Conform to standard dimensions ISO11901-1, CNOMO E.24.54.815.N
• Comply with European directive PED 97/23EC
• Force : from 250 to 10 000 daN (10t)
• Stroke : up to 300mm
• Designed for heavy duty
• Double sealing
• Oil lubricated guide ring
• Solid structure (no welding)
• Can be used in piping system
• Gas : Nitrogen
• Maximum inflating pressure : 150 bar
• Minimum inflating pressure : 25 bar
• Temperature limit : 0/+70°C
• Maximum piston rod speed : 1.6 m/s

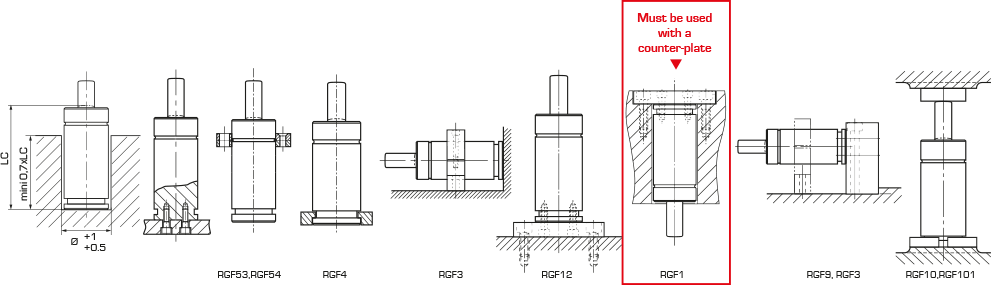

For connection details of ISO standard gas springs, please see CONNECTIONS FOR ISO GAS SPRINGS

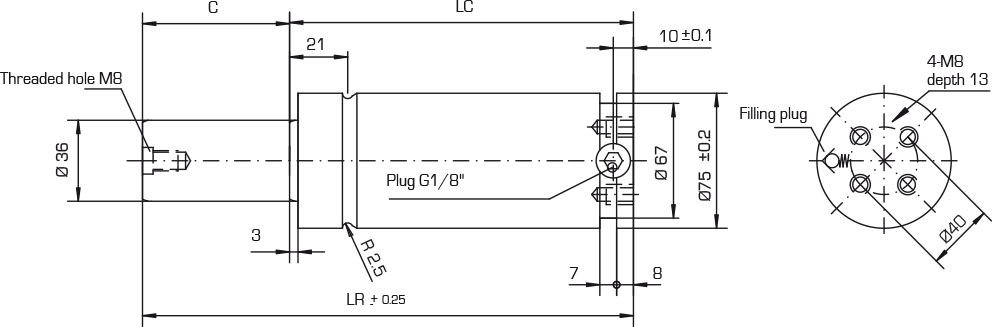

| Type | Force | Stroke C | Reference | ISO | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | ||||
| RG | 1500 | 10 | 442537/000 | 15
(150) (!) |
15 270 | 18 530 | 130 | 120 | 3.30 | 3D | |
| 25 | 442531/000 | X | 20 490 | 160 | 135 | 3.50 | 3D | ||||
| 38 | 442538/000 | 21 340 | 186 | 148 | 3.70 | 3D | |||||
| 50 | 442532/000 | X | 21 800 | 210 | 160 | 4.00 | 3D | ||||
| 63 | 442539/000 | 22 130 | 236 | 173 | 4.20 | 3D | |||||
| 80 | 442533/000 | X | 22 440 | 270 | 190 | 4.50 | 3D | ||||
| 100 | 442534/000 | X | 22 670 | 310 | 210 | 4.90 | 3D | ||||
| 125 | 442535/000 | X | 22 900 | 360 | 235 | 5.40 | 3D | ||||
| 160 | 442536/000 | X | 23 090 | 430 | 270 | 5.80 | 3D | ||||
| 200 | 442540/000 | 23 240 | 510 | 310 | 6.50 | 3D | |||||
| 250 | 442541/000 | 23 340 | 610 | 360 | 7.50 | 3D | |||||
| 300 | 442542/000 | 23 430 | 710 | 410 | 8.50 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order : RG 1500 C50
Spare kits – Composition : Guide ring; seals, valve and lubricant.
– V1 (bronze ring and chrome piston rod) : 896490/000
– V2 (Black steel ring and piston rod) : 896599/000
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
