RGT 750 gas spring
• Diameter from 32 to 150 mm
• Stroke from 10 to 125 mm
• Force : from 350 to 9500 daN (9.5t)
• Designed especially for car makers
• Solid design (no welding)

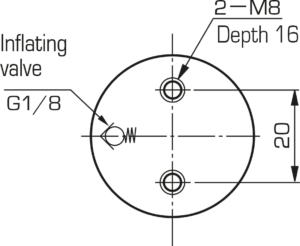

• Design and features similar to RGP but can be used with standard G 1/8’’ piping system (except RGT 350)
• Long bottom threads recommended for fixtures with screws in the upper die
• Conforms to Toyota standard : SMS DNH 3203 N
| Type | Force | Stroke C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | |||
| RGT | 750 | 10 | 443581/000-S | 15
(150) (!)
|
7 370 | 10 960 | 67 | 57 | 0,572 | 3D |
| 13 | 443582/000-S | 11 100 | 73 | 60 | 0,592 | 3D | ||||
| 16 | 443584/000-S | 11 200 | 79 | 63 | 0,612 | 3D | ||||
| 19 | 443585/000-S | 11 260 | 85 | 66 | 0,632 | 3D | ||||
| 25 | 443586/000-S | 11 350 | 97 | 72 | 0,682 | 3D | ||||
| 32 | 443587/000-S | 11 470 | 111 | 79 | 0,722 | 3D | ||||
| 38 | 443588/000-S | 11 500 | 123 | 85 | 0,762 | 3D | ||||
| 50 | 443589/000-S | 11 540 | 147 | 97 | 0,842 | 3D | ||||
| 63 | 443590/000-S | 11 590 | 173 | 110 | 0,922 | 3D | ||||
| 75 | 443591/000-S | 11 600 | 197 | 122 | 1,002 | 3D | ||||
| 80 | 443592/000-S | 11 590 | 207 | 127 | 1,072 | 3D | ||||
| 100 | 443593/000-S | 11 590 | 247 | 147 | 1,162 | 3D | ||||
| 125 | 443594/000-S | 11 620 | 297 | 172 | 1,322 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order : RGT 750 C50
Spare Kit : 896530/000
Composition : Guide ring, seals, valve and lubricant.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
